5.7.1 Assembly
The ESCON Module MoBo is designed to easily be screw-mounted or integrated into standard rail sys-
tems. For ordering information for the components required Figure 5-28 (only for illustrative purposes)
and Table 5-13.

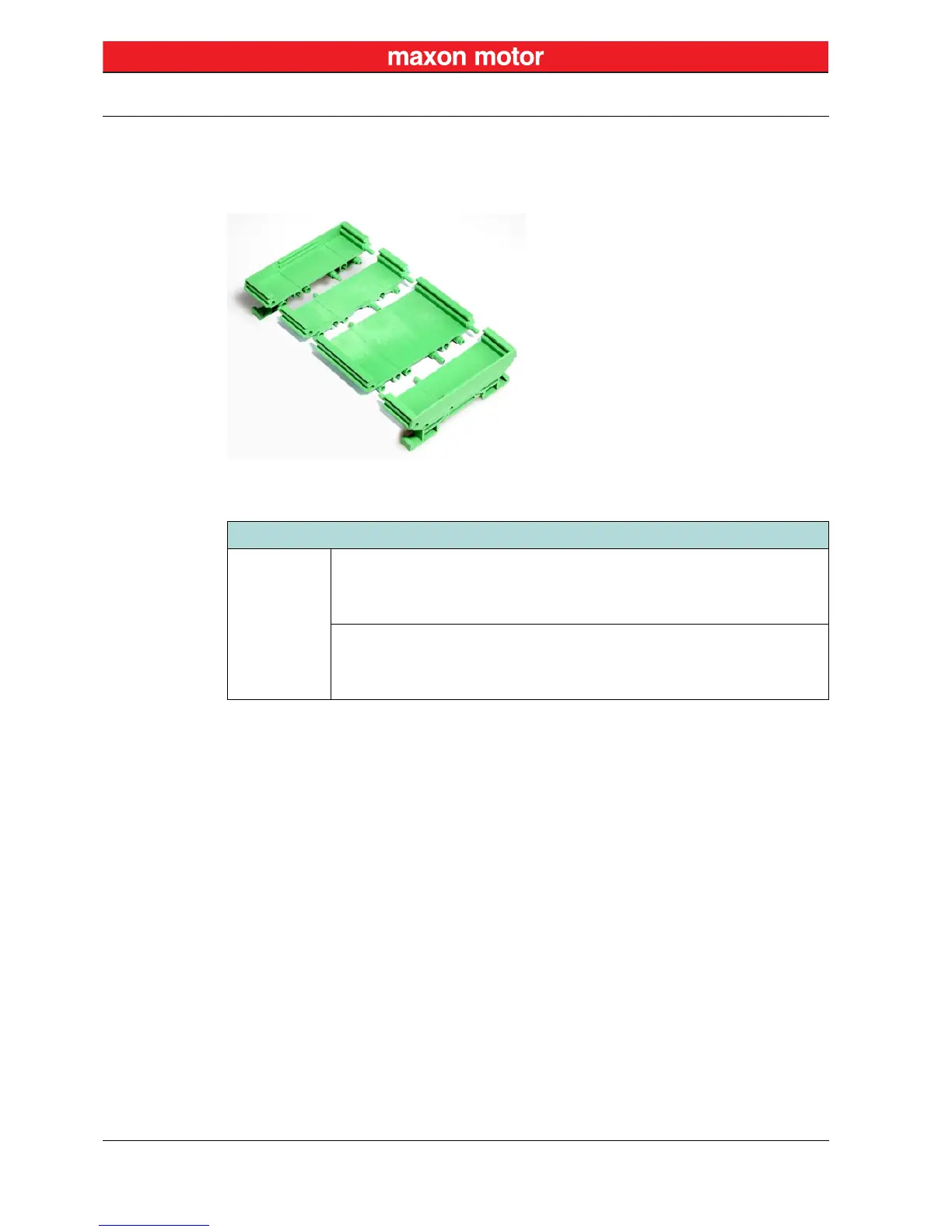

Figure 5-28 ESCON Module MoBo – Mounting on DIN Rail
Table 5-13 ESCON Module MoBo, mounting on DIN Rail – Specification & Accessories
Specification / Accessories
Adapter for
DIN rail
PHOENIX CONTACT
2 x panel mounting base element 11.25 mm UMK-SE11.25-1 (2970442)
2 x base element 45 mm UMK-BE45 (2970015)
2 x foot element UMK-FE (2970031)
CamdenBoss
2 x end section with foot 22.5 mm (CIME/M/SEF2250S)
1 x base element 22.5 mm (CIME/M/BE2250SS)
1 x base element 45 mm (CIME/M/BE4500SS)
