5.7.2.3 Hall sensor (J3)
Suitable Hall effect sensors IC use «Schmitt trigger» with open collector output.

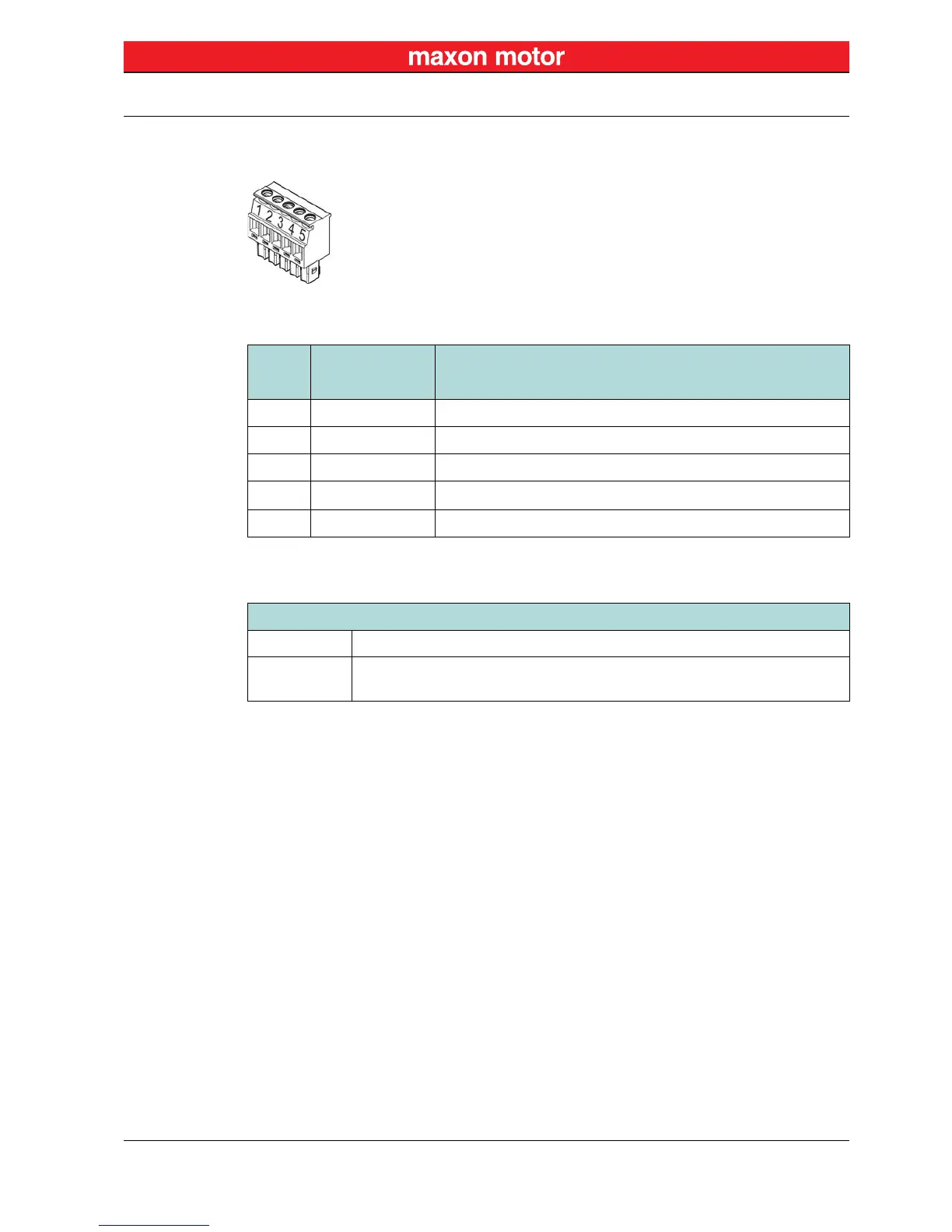

Figure 5-31 ESCON Module MoBo – Hall Sensor Plug J3
Table 5-19 ESCON Module MoBo – Hall Sensor Plug J3 – Pin Assignment
Table 5-20 ESCON Module MoBo – Hall Sensor Plug J3 – Specification & Accessories
J3
Signal Description
Pin
1 Hall sensor 1 Hall sensor 1 input
2 Hall sensor 2 Hall sensor 2 input
3 Hall sensor 3 Hall sensor 3 input
4+5 VDC
Hall sensor supply voltage (+5 VDC; I
L
≤30 mA)
5 GND Ground
Specification / Accessories
Type Pluggable screw-type terminal block, 5 poles, 3.5 mm pitch
Suitable cables
0.14…1.5 mm
2
multi-core, AWG 28-14
0.14…1.5 mm
2
single wire, AWG 28-14
