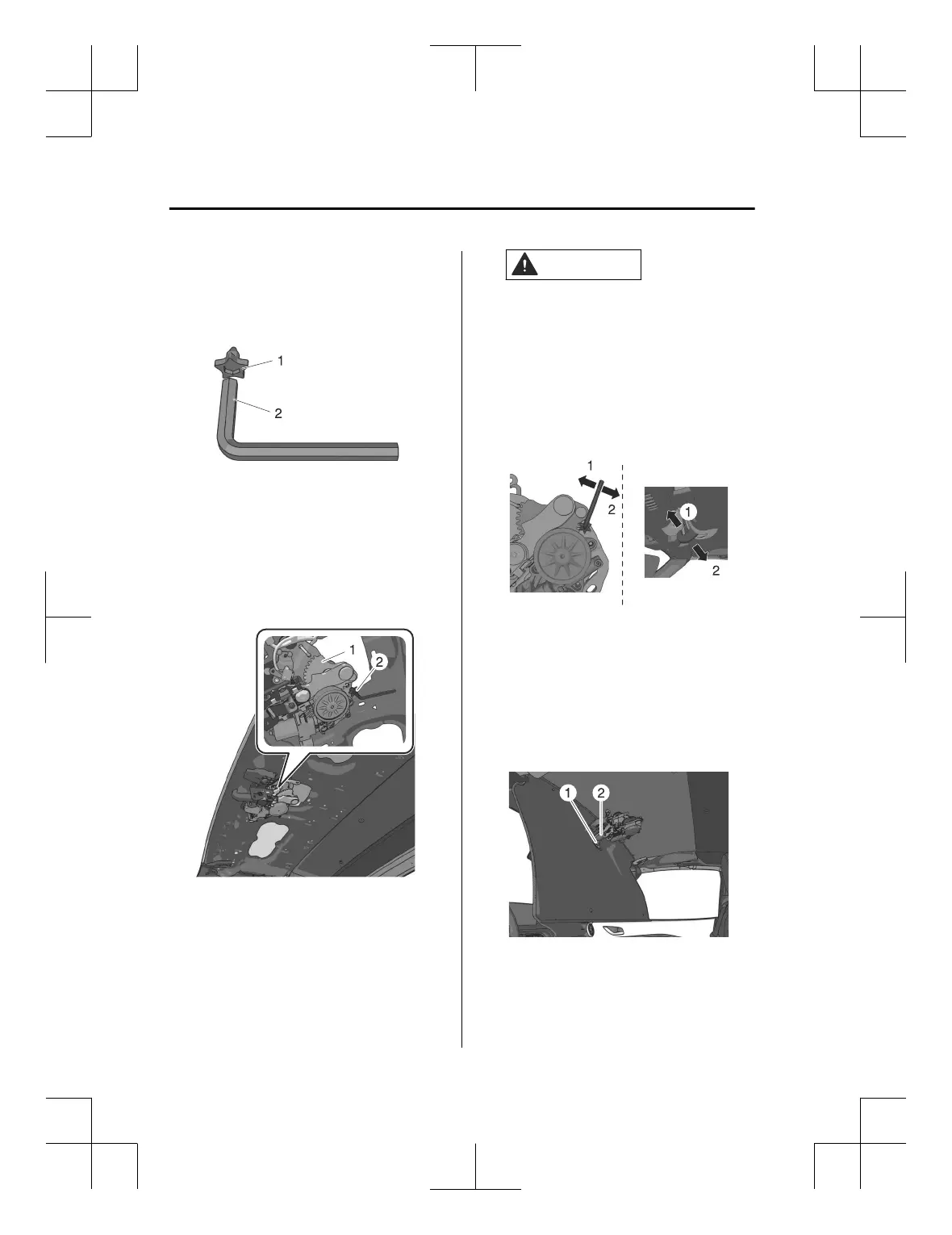

7. Insert the short end of the
hexagonal wrench (Small) into the
gear (tool kit) and assemble.
1. Gear (tool kit)
2. L-shaped hexagonal wrench
(small)
8. Insert the point of the gear (tool kit)
into the hole beside the top lock
motor gear with the hexagonal
wrench inserted into the gear tool.
1. Top lock motor gear
2. Gear (tool kit)
CAUTION
Insert the gear (tool kit) securely
until it engages with the top lock
motor gear. If the gear (tool kit) is
not inserted securely, it may come
off and be damaged.
9. Rotate the hexagonal wrench and
move the hook in the lock direction
so that there is enough space for
the opening of the headliner to be
attached to the hook.
1. Lock
2. Unlock
NOTE
Turning the gear (tool kit) requires
some effort due to motor
resistance. Slowly operate the
hexagonal wrench.
10.Insert the hook into the opening of
the headliner.
1. Headliner
2. Hook
