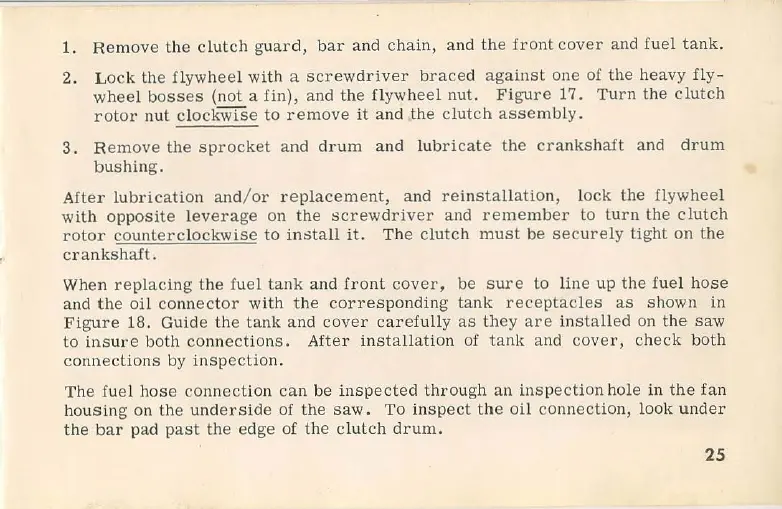

1. Remove the clutch guard, bar and chain, and the front cover and fuel tank.
2. Lock the flywheel with a screwdriver braced against one of the heavy fly-
wheel bosses (not a hnL and the flywheel nut. Figure 17. Turn the clutch
rotor nut clockWISe to remove it and the clutch assembly.
3. Remove the sprocket and drum and lubricate the cranks haft and drum
bushing.
After lubri cation and/ or replacement, and reinstallation, lock the flywhee l
with oppos
it e leverage on the ticrewdriver and remember to tUrn the clutch
rotor counterclockwise to intitall it. The clutch must be secure ly tight on the
cra nkshaf t.
When replacing the fuel tank and front cover, be sure to line up the fuel hose
and the oil connector with the corresponding tank receptacles as shown in
Figure 18. Guide the tank and cover carefully as they are installed on the saw
to
insure both connections. After installation of tani" and cover, check both
connections by inspection.
The fuel hose connection can be inspected through an inspection hole in the fan
hOU Sing on the underside of the saw. To inspect the oil connection, look under
the bar pad past the edge of the clutch drum.
25
