McHale Fusion Vario Baler & Wrapper
105
Cut and hold knife adjustment and removal

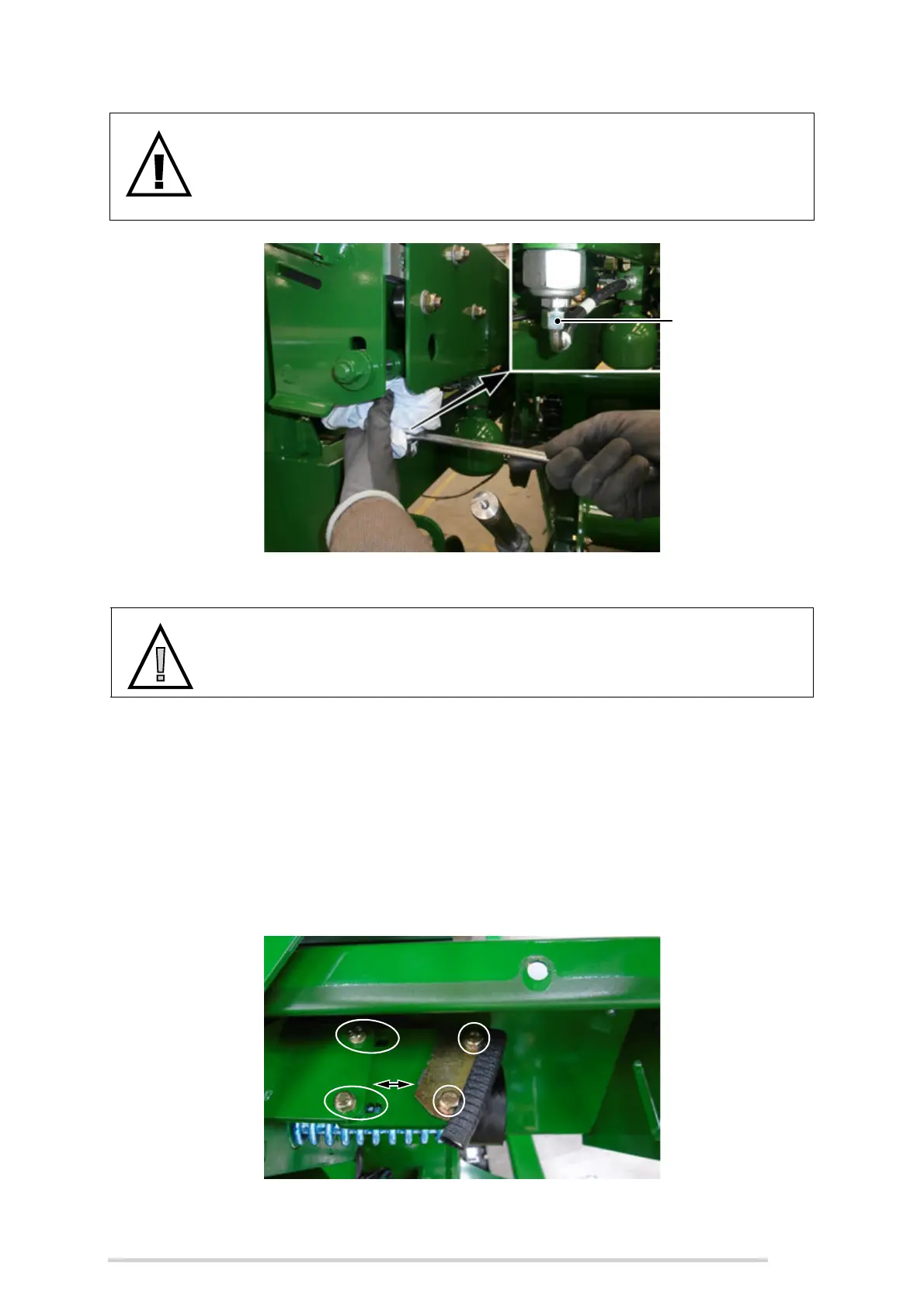

The cut and hold knife may be adjusted in and out by following the procedure below:
1. Remove the two M6 nyloc nuts and bolts that hold knife plate (A) using 10 mm
spanners. Beware of the cutting knife! Use temporary protective cover, as
shown.
2. Move the knife plate to the desired position. The factory setting is to the fully
out position, as shown.
3. Insert the two M6 bolts and tighten nyloc nuts to 12 Nm.
4. Repeat for the other cut and hold.
WARNING: Wear proper safety equipment & follow all instructions
Ensure to wear proper safety equipment at all times when working with
the machine, such as gloves, eye protection, etc. and follow all safety
decals and instructions.
CAUTION: Use protective gloves
Use protective gloves for any manual work in this area! Beware of sharp
knife edges. Use temporary protective cover, as shown.
Accumulator
pressure hose
To Next Page
