 Lift the pick-up reel completely and close the lever on the hydraulic line (if
fitted).
 The pick-up guide wheels must be fixed in the road transport position and the
drawbar/PTO stands secured in a working position. (See ‘Drawbar & PTO
shaft stand usage’)

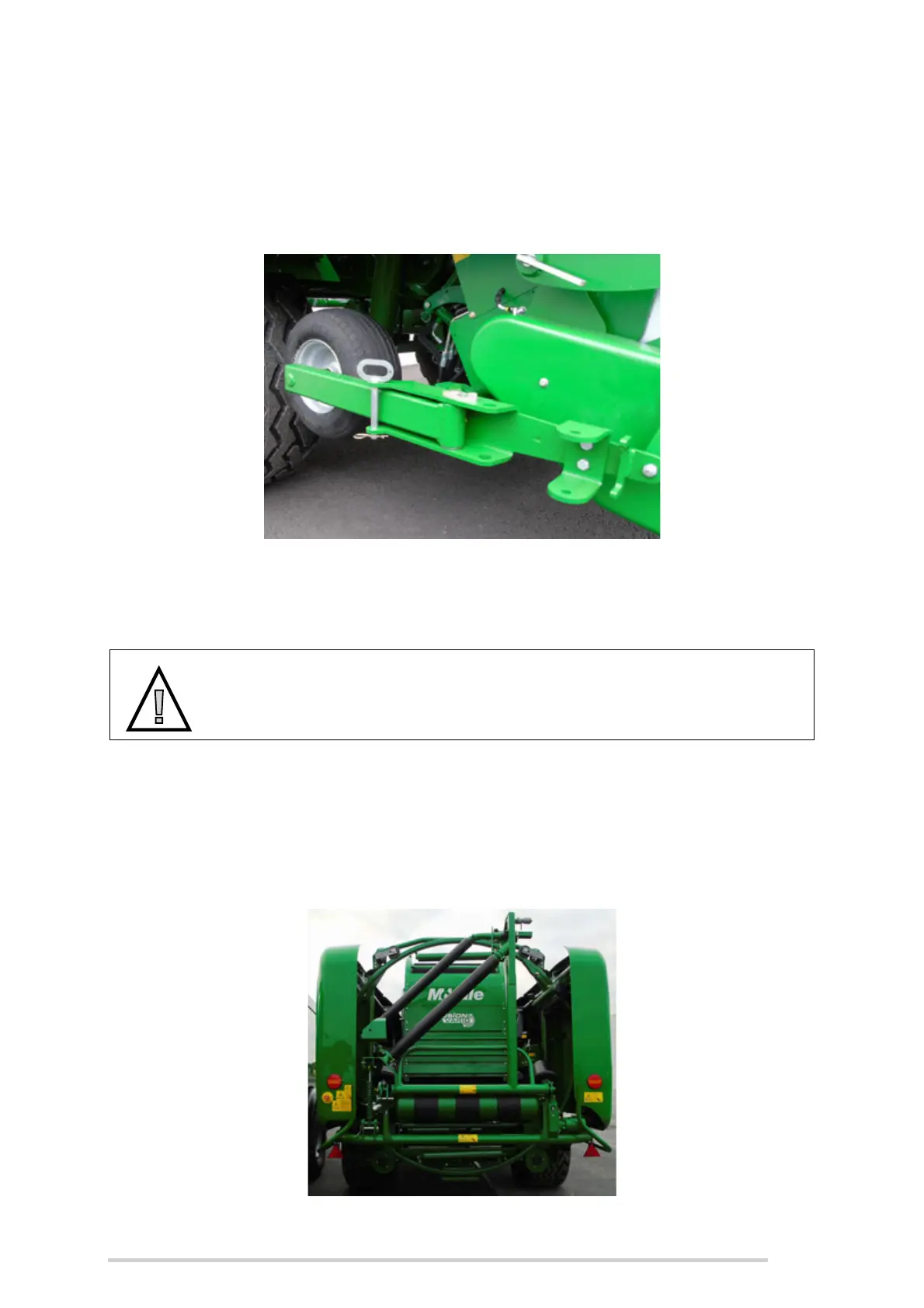

Pick-up wheels in the transport position
9.2 Road transportation with side-tip attached
 Side-tip must be folded vertically and secured.
 Ensure the transport-pin is secured in the transport position with the linch-pin
attached. (See ‘Side-tip’)
 Do not attempt to go over 20 km/h at any time, while the side-tip attachment is
assembled to the machine.
Road transport position (side-tip)
CAUTION: Side-tip must not be used on public roadways!
Side-tip must not be used on public roadways and must always be folded
vertically beforehand.
