McHale Issue 5 - Page 64

McHale Fusion Vario Baler & Wrapper
64
 Swing down the PTO shaft stand (2) in an upright position in order to support
the PTO shaft (4).
Type B - The following applies to swing down screw stand (low hitch):
 Similar to type A, except stand pin (3) is in the upper slot, in the transport
(working) position. It should be wound up and retracted fully, as shown, before
removing the handle. The main difference being, that the drawbar height is
now fully adjustable.
.

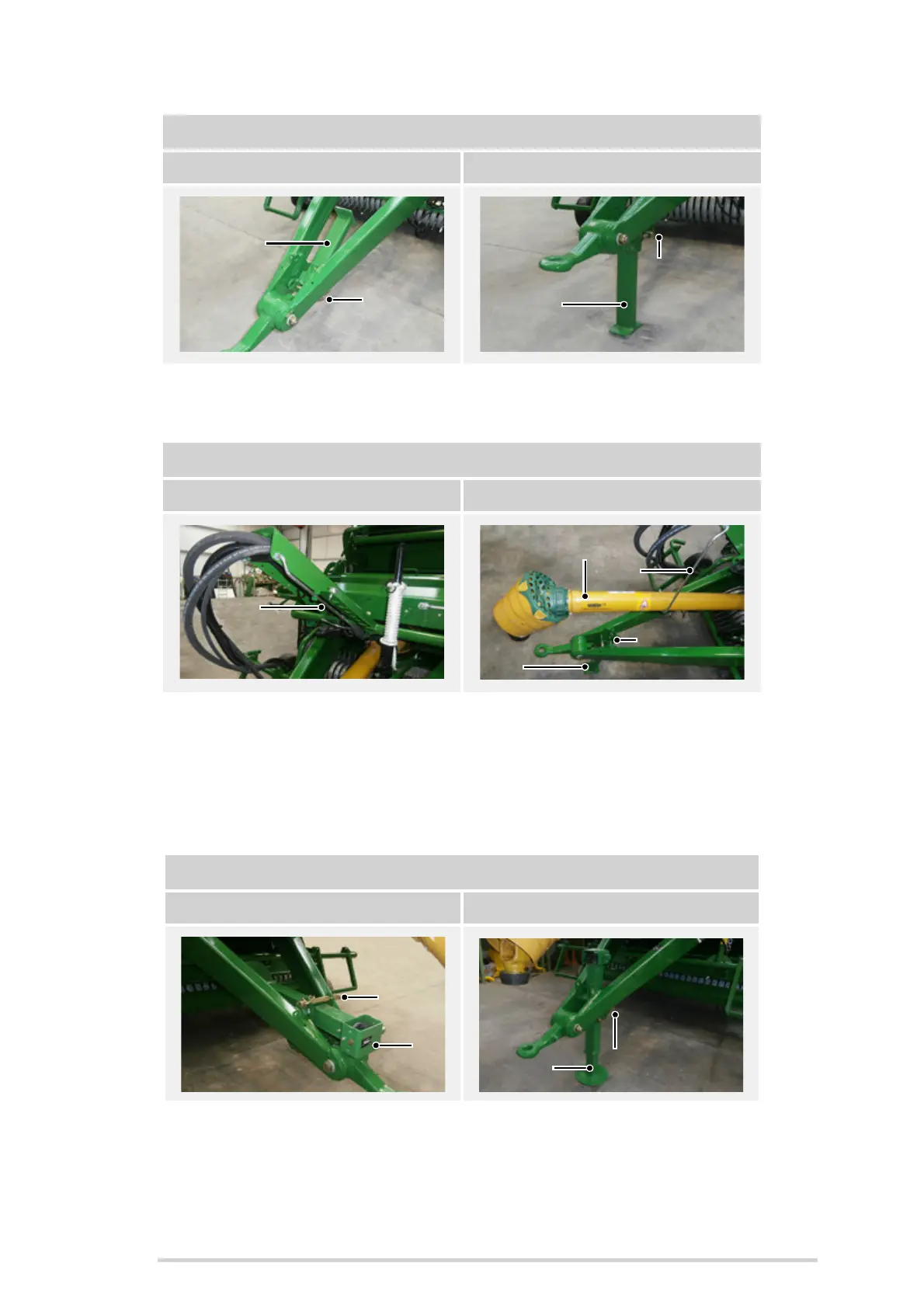

Type A - swing down fixed length stand (low hitch)
Transport (working) position Storage position
PTO shaft stand (type A & B)
Transport (working) position Storage position
1
Type B - swing down screw stand (low hitch)
Transport (working) position Storage position
1
3
1
3
2
4
3
1
2
3
1
3
1
