McHale Fusion Vario Baler & Wrapper
68

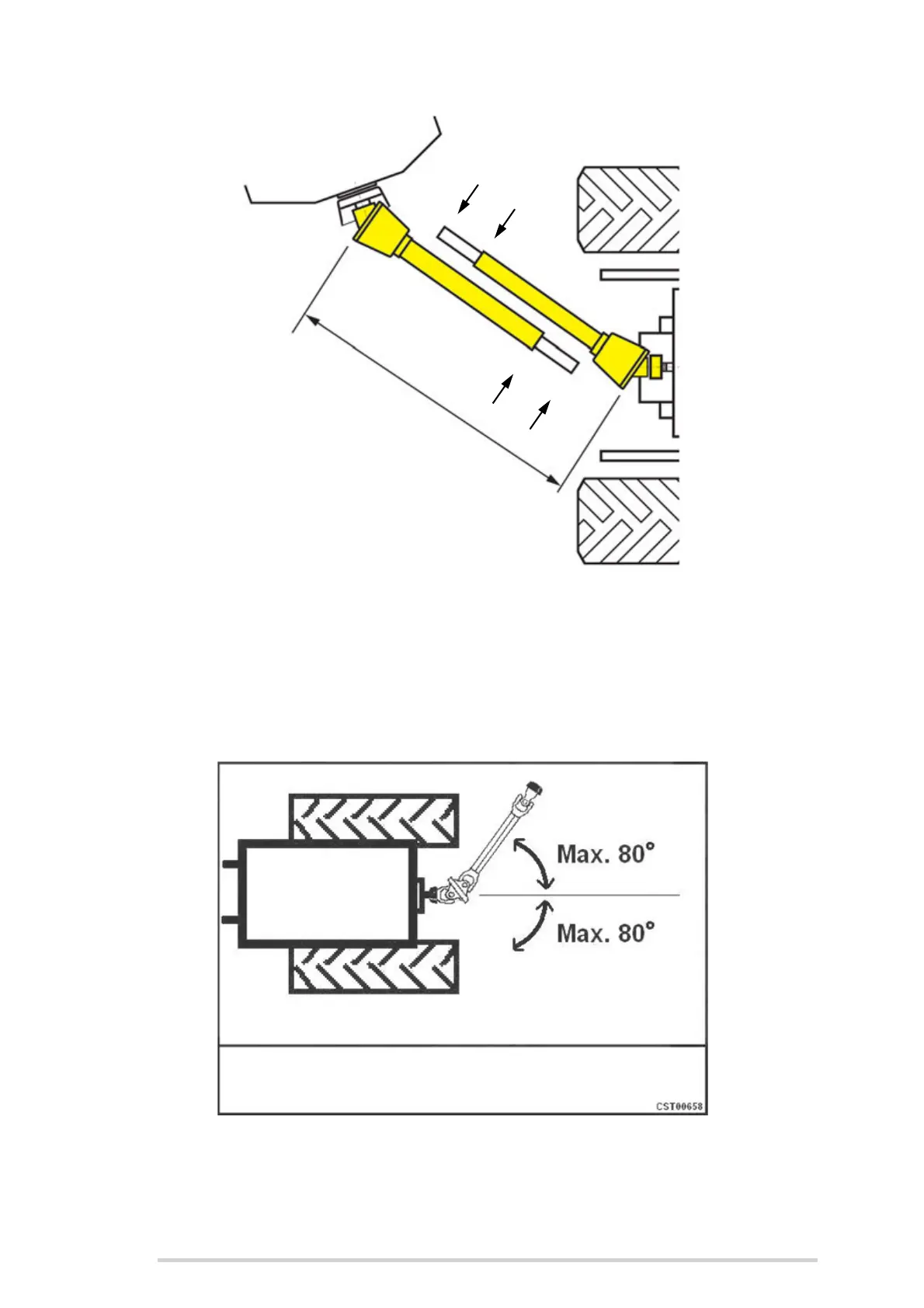

After measuring carefully, the PTO shaft halves should be cut equally so that the PTO
shaft assembly is kept as long as possible, whilst just allowing enough room for its
removal. This will ensure that a maximum overlap (ideally 200 mm minimum) is
maintained, when extended.
Maximum 80° angle of movement should never be exceeded, otherwise permanent
damage will result.
All PTO shaft grease points are to be serviced at 60 hour intervals.
ATTENTION: PTO wide angle joint must never exceed 80 deg.
both during operation and when stationary, otherwise permanent
damage will result.
