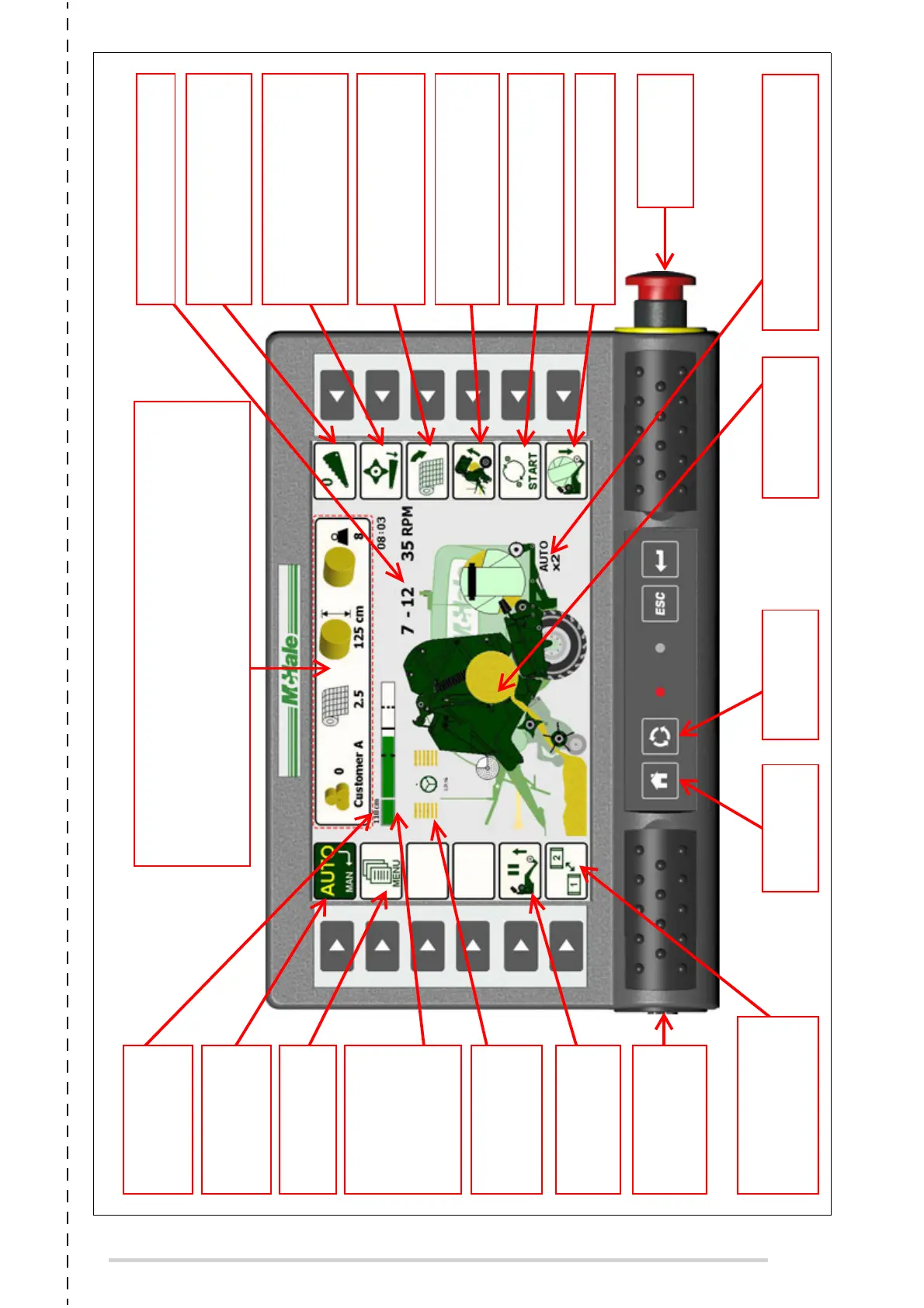

FUSION VARIO AUTO MODE GUIDE
Shows vital machine info. Press the screen toggle button to see more info.
- Net Layers
- Customer Name / Bale Count
- Wrapper rotations (not shown if wrapper is off)
- Knife position + pressure
- Power supply voltage
- Bale Diameter setting
Switches between
Manual and
Automatic operation
mode.
Menu Button
Access to menu
settings.
Bale diameter graph
shows live bale
diameter progress. It
turns green when bale
is within allowable
diameter range for
wrapping.
On/Off Button
Press and hold to
switch on or off.
Screen Toggle Button
Switches between Screen 1
and Screen 2 in Man mode.
Toggles between information
at top of screen in Auto.
Home Button
Takes user back to
main screen.
Toggles between
main screen and
camera image.
Small bale shown
when diameter
approaches the target.
Auto is shown when Auto-tip is activated.
x2 is shown when Tipping x2 is activated
and the wrapper is set to off.
Knives
Number of chopping knives engaged.
Press to toggle available options.
Unblock
Press + hold for 1 second to start auto
drop floor down sequence. Press
again to reset the drop floor to the
work position.
Net Feed/Delay
Press once to pause netting. A yellow
box will highlight the button. Press +
hold for 1 second to start netting.
Transfer
Press during netting to pause transfer.
A yellow box will highlight the button.
Press + hold for 1 sec to start transfer.
Wrapper
Press + hold for 1 second to start/
resume wrapping.
Bale Tipping
Press to tip bale.
Stop Button
Disables the machine.
Bale shape indicator
arrows show direction
to steer for optimum
bale shape.
Shows the current and target wrapper
revolutions.
Actual bale diameter
shown when netting
starts.
(Software version IS302-004)
Press this button to
pause the bale from
tipping off when Auto
tip is on.
