10
IM 474-3
Installation
Panel Location and Mounting
The OPM Panel is suitable for indoor use only. Table 4 lists the allowable temperature and humidity
ranges. Locate the panel at a convenient height, and allow adequate clearance for the door swing.
Mount the panel to the wall with screws or bolts. It weighs approximately 30 pounds (14 kg). Four ¼-
inch openings are provided at the corners of the panel. Panel dimensions are shown in Figure 3.
The panel is equipped with special door hinges that have a friction adjustment screw. By adjusting
this screw you can prevent the door from swinging open or closed unexpectedly.
Table 4. OPM Panel Environmental Specifications
Panel state Temperature Relative humidity
Operating 32 – 100°F (0 – 37°C) 0 – 95%, noncondensing
In storage –40 – 140°F (–40 – 60°C) 0 – 95%, noncondensing

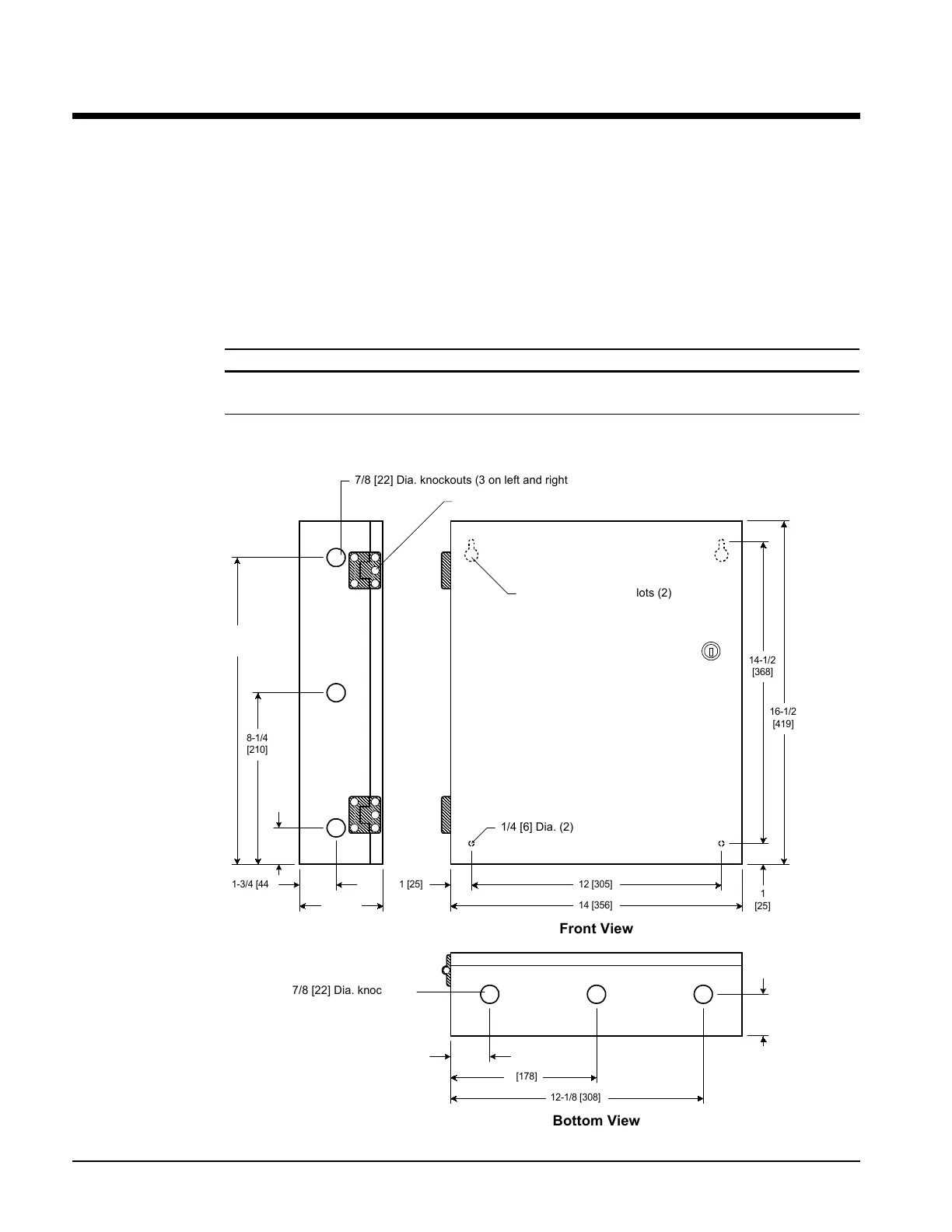

Figure 3. OPM Panel Dimensions






16-1/2
[419]
14-1/2
[368]
1
[25]
12 [305]1 [25]
14 [356]
Front View






8-1/4
[210]
1-3/4 [44]
14-3/4
[375]
1-3/4
[44]
4 [102]
Left Side View



1-7/8 [48]
2
[51]
7 [178]
12-1/8 [308]
Bottom View
7/8 [22] Dia. knockouts (3 on left and right sides)
Hinge friction adjustment screw
1/4 [6] Dia. mounting slots (2)
1/4 [6] Dia. (2)
7/8 [22] Dia. knockouts
(3 on top and bottom)
Note:
Dimensions are in inches
(millimeters in brackets).
