Step 4. After condensing unit is set in place, install parts as shown in Figure 35.

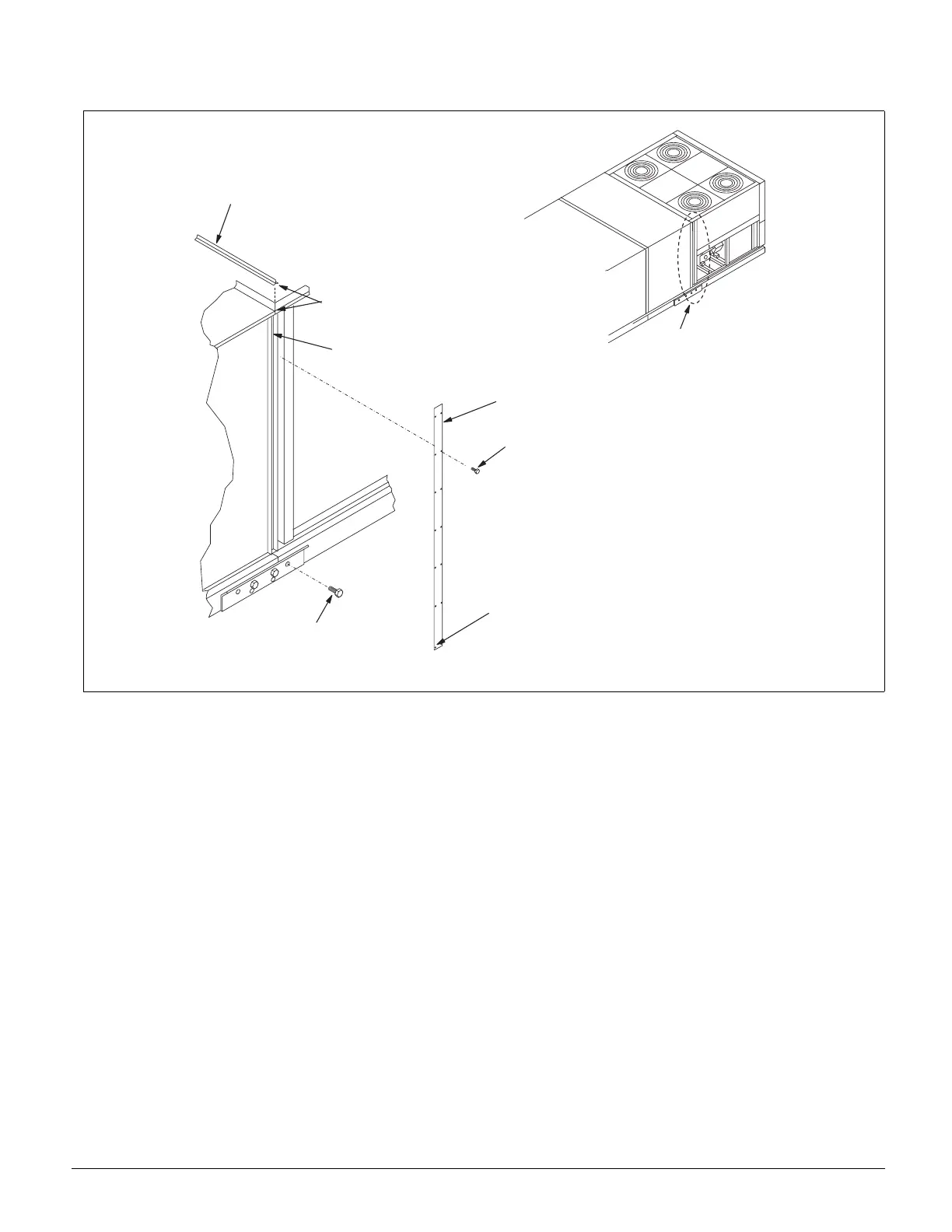

Figure 35. RPS/RDT Split at Condenser Reassembly - Step 4
Step 5. Make refrigerant piping and electrical connections.
See Figure 30 and Figure 31 on page 28 and Figure 32 on page 29.
R e i n s t a l l T o p C a p
s a v e d f r o m S t e p 1
C a u l k e n d s o f
S p l i c e C a p
S e e D e t a i l
S p l i c e C o v e r p r o v i d e d
# 1 0 s c r e w s p r o v i d e d
N u t c l i p - o n p r o v i d e d
C a u l k v e r t i c a l
s e a m
R e i n s t a l l 1 / 2 " b o l t
s a v e d f r o m S t e p 1
