McQuay RPS User Manual

Page 90 IM-738

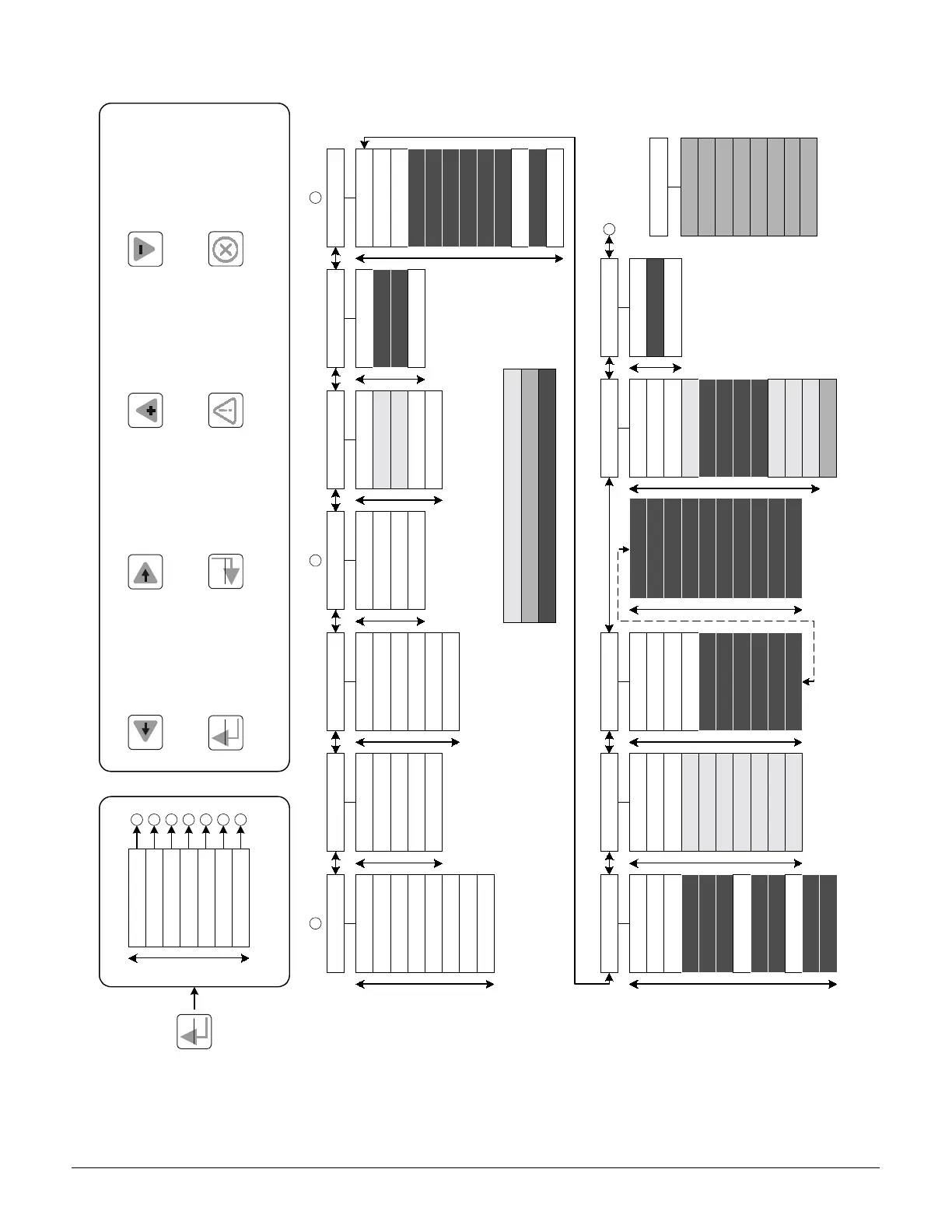

Figure 92. Keypad Accessible Menu Structure
Sub Menus
System Summary
Airflow
Setup/Service
Previous Alarms
1 2 3 4 5 6 7
Temperatures
System
1 2 3
UnitStatus= _____
A
Clg Capacity= xxx% Htg Capacity= xxx% Clg Status= _____ Htg Status= _____ Ctrl Mode= Auto Appl Mode= Heat/Cool VAV Output= _____
Occupancy Occupancy= _____ Occ Mode= Auto Occ Src= _____ Bypass Time= 0min Emerg Override= Norm
Temperatures Control Temp= xxx.x°F Disch Air= xxx.x°F Return Air= xxx.x°F Space Temp= xxx.x°F OA Temp= xxx.x°F Ent Fan= xxx.x°F
Airflow Summary Flow Status= _____ Disch Fan= _____ RF/EF Fan= _____ Fan Operation= _____
Duct Pressure Duct Press= x.xx"WC DuctSP Spt= 1.00"WC DSP Db= 0.08"WC Disch Fan Cap= xxx% RF/EF Fan Cap= xxx%
Bldg Pressure Zone Cooling
Control Temp= xxx.x°F Clg Capacity= xxx% Eff Clg Spt= xxx.x°F Occ Clg Spt= 75.0°F Clg Deadband= 2.0°F CtrlTemp Src= Return Space Temp= xxx.x°F UnoccClg Spt= 85.0°F UnoccClgDiff= 3.0°F Clg Status= _____ OATComp Lock= 55°F OATLock Diff= 1°F
Bldg Press= x.xx"WC BldgSP Spt= 1.00"WC BSP Db= 0.08"WC RF/EF Fan Cap= xxx%
Zone Heating Control Temp= xxx.x°F Htg Capacity= xxx% Eff Htg Spt= xxx.x°F Occ Htg Spt= 70.0°F Htg Deadband= 2.0°F CtrlTemp Src= Return Space Temp= xxx.x°F UnoccHtg Spt= 55.0°F UnoccHtgDiff= 3.0°F Htg Status= _____ OATHtg Lock= 55°F OATLock Diff= 1°F
Discharge Cooling Disch Air= xxx.x°F Clg Capacity= xxx% Eff Clg Spt= xxx.x°F DAT Clg Spt= 55.0°F Clg Db= 1.0°F Min Clg Spt= 55.0°F Max Clg Spt= 65.0°F Clg Reset= None Min Clg Spt@= 90 Max Clg Spt@= 70
Discharge Heating Disch Air= xxx.x°F Htg Capacity= xxx% Eff Htg Spt= xxx.x°F DAT Htg Spt= 100.0°F Htg Db= 1.0°F Min Htg Spt= 60.0°F Max Htg Spt= 120.0°F Htg Reset= None Min Htg Spt@= 60 Max Htg Spt@= 20 Min DAT Ctrl= Yes
OA Damper Energy Recovery
RF/EF Fan Cap= xxx% EF Min Cap= 5% Energy Rec= Yes
Main Menu
CANCEL
BACK
Active Alarms
Schedules
OA Damper Pos= xxx% Eff Min OA Pos= xxx% OA Flow= xxxxxCFM OA Ambient= _____ MinOA Type= None DesignFlow= No MinOA Pos= 10% MinOA Flow= 2000CFM MinOA @Max Sig= 60% Min Signal= 0%
Max Signal= 100% MinOAResetMax= 100% Max Fan Diff= 50% Min Fan Diff= 20% Reset T Limit= 0°F EconChgovr= Enthalpy EconChgovrT= 60°F EconChgovrDiff= 1°F Max Purge= 60min OA Temp= xxx.x°F
Keypad Key Definitions
Move Display Left Move Edit Cursor Left
SAVE
ENTER
CANCEL
BACK
ALARM
ALARM
CLEAR
Move Display Right Move Edit Cursor Right
Move Display Up Increment Adjustable Parameter
Move Display Down Decrement Adjustable Parameter
Backup To Previous Menu Cancel Editing Command
Select Menu Save Edited Parameter
Display Active Alarm Clear Active Alarm
Dehumidification Dehum Satus = ______ Rel Humidity = xxx% Dew Point = xxx.x°F Dehum Method = None RH Setpoint = 50% RH Db = 2% DewPnt Db = 2°F Dewpoint Spt = 50°F
MinDAT Limit = 55°F
Parameters for Discharge Air Temperature Control Parameters for Space Temperature Control Parameters Common to Both Control Methods
Control Parameter Legend
