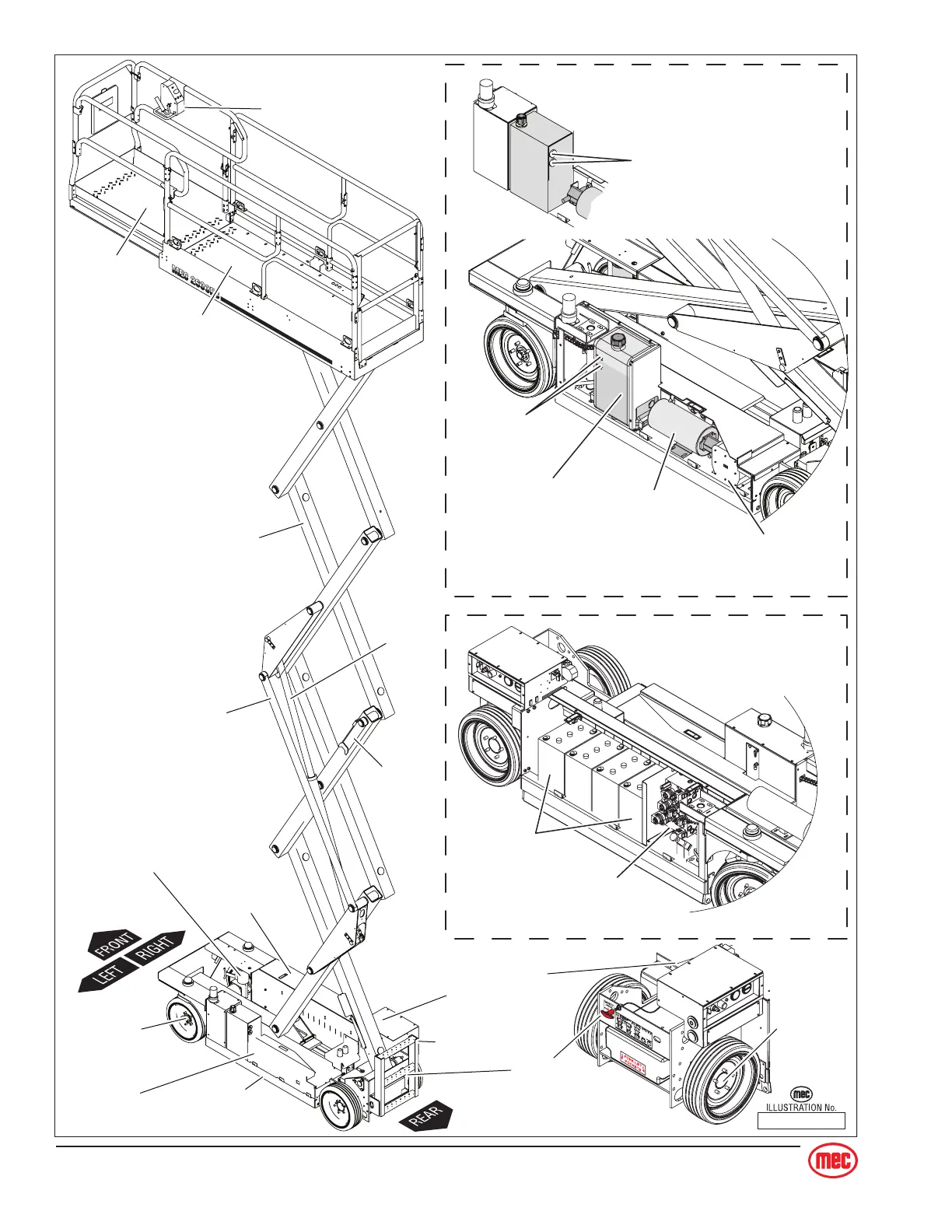

Upper Control Box
Work Platform
Deck
Extension
Main Deck
Scissor
Beam
Support
Beam
Scissor
Assembly
Maintenance
Lock
Lower
Control Box
Ladder
Battery
Charger
Battery
Pack
Hydraulic Manifold
Emergency
Lowering
Cable
Base
Lift
Cylinder
Pump
Compartment
Drive Motor
(Both Sides)
Brake
(Both Sides)
Pothole Bar
(Both Sides)
Battery
Compartment
Hydraulic
Fluid Filter
Fluid Level
Sight Gauge
Fluid Level
Indicator
Plastic
Hydraulic
Reservoior
(current models)
Hydraulic Fluid
Pump and Motor
Early Models are equipped with
a Welded Steel Hydraulic Reservoior
PUMP COMPARTMENT
BATTERY COMPARTMENT
