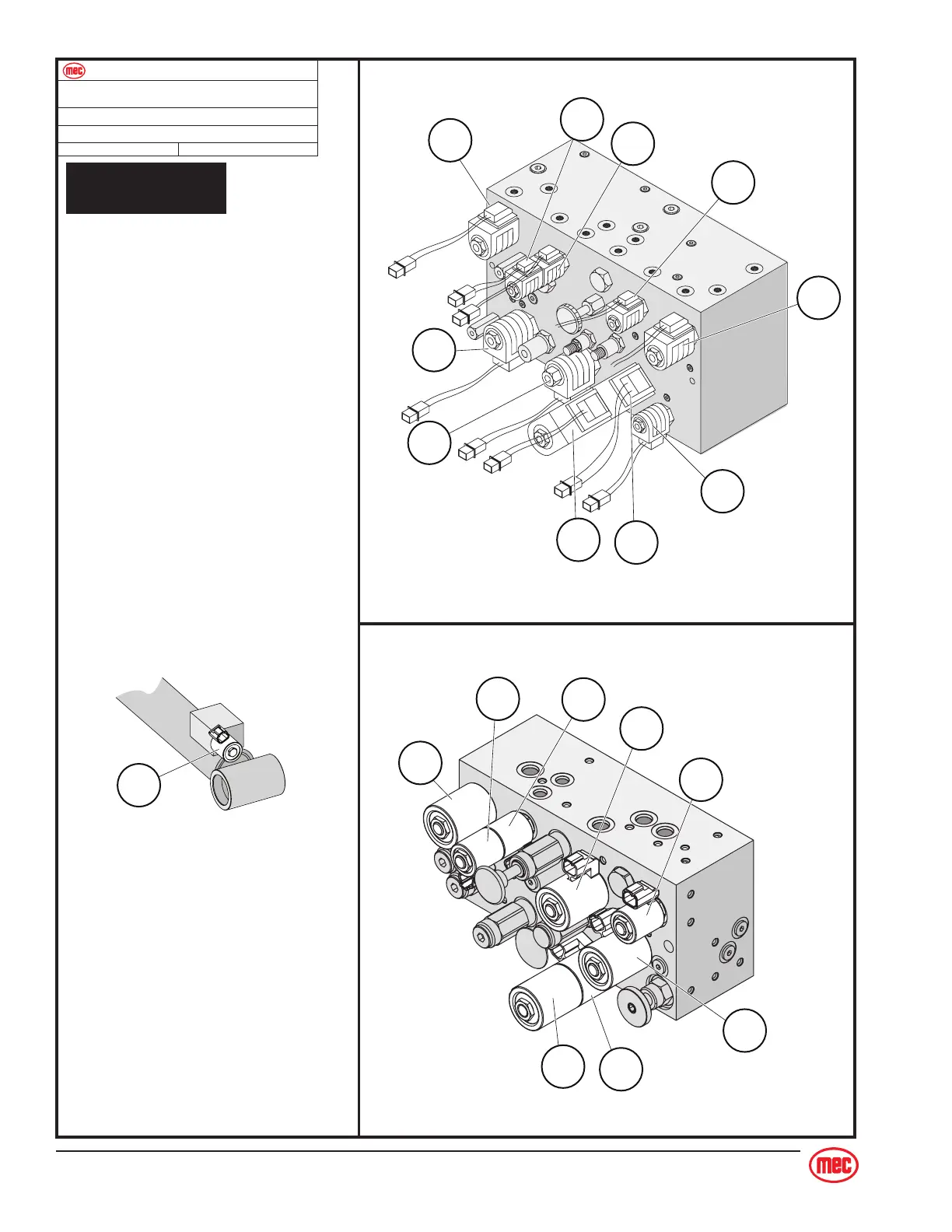

Component Locations
ES Models: all
Model: / Serial #
Publication Art #:Reference Art #:
_
_
REFER TO
ELECTRIC SCHEMATIC
SOL4
SOL1
SOL2
SOL5
SOL3
SOL6
SOL8
SOL7
STEER LEFT
SOL2
STEER LEFT
TORQUE
SOL5
TORQUE
LIFT
SOL9
LIFT
SOL4
BRAKE
SOL10
DOWN
TORQUE
SOL6
TORQUE
DRIVE
FORWARD
REVERSE
SOL8
SOL7
DRIVE
FORWARD
REVERSE
DECEL
SOL3
DECEL
STEER RIGHT
SOL1
STEER RIGHT
SOL12
LIFT CYLINDER
MAIN MANIFOLD
EARLY MODELS
MAIN MANIFOLD
CURRENT MODELS
