6092RT Fold Down Platform Railings
Fold Down Rails (continued)
ART_3016
4 places
4 places
ART_3017
To return the machine to normal operation
mode, lift all rails into their upright position,
install all safety snap pins, and position the
platform control box on the extension rail.
4
5

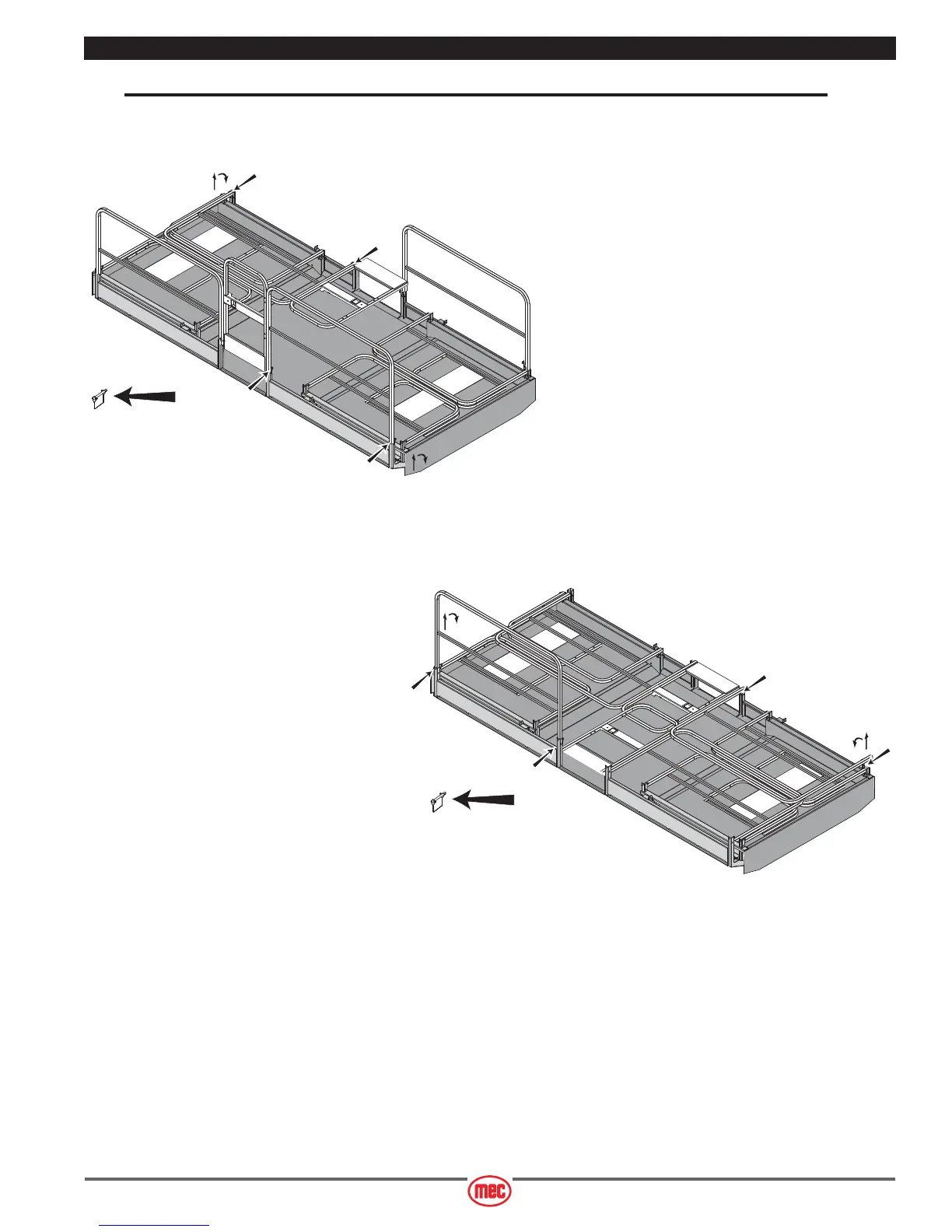

Remove the safety snap pins from
remain deck rail panels.
Lift the rails, pivot and place on top of
the deck extension rails.
Remove the safety snap pins from main
deck rail panels that attach to the entry
gates.
Lift the rails, pivot and place on top of
the deck extension rails.
