93808 – October 2014 Page 19
6092RT Operating Instructions

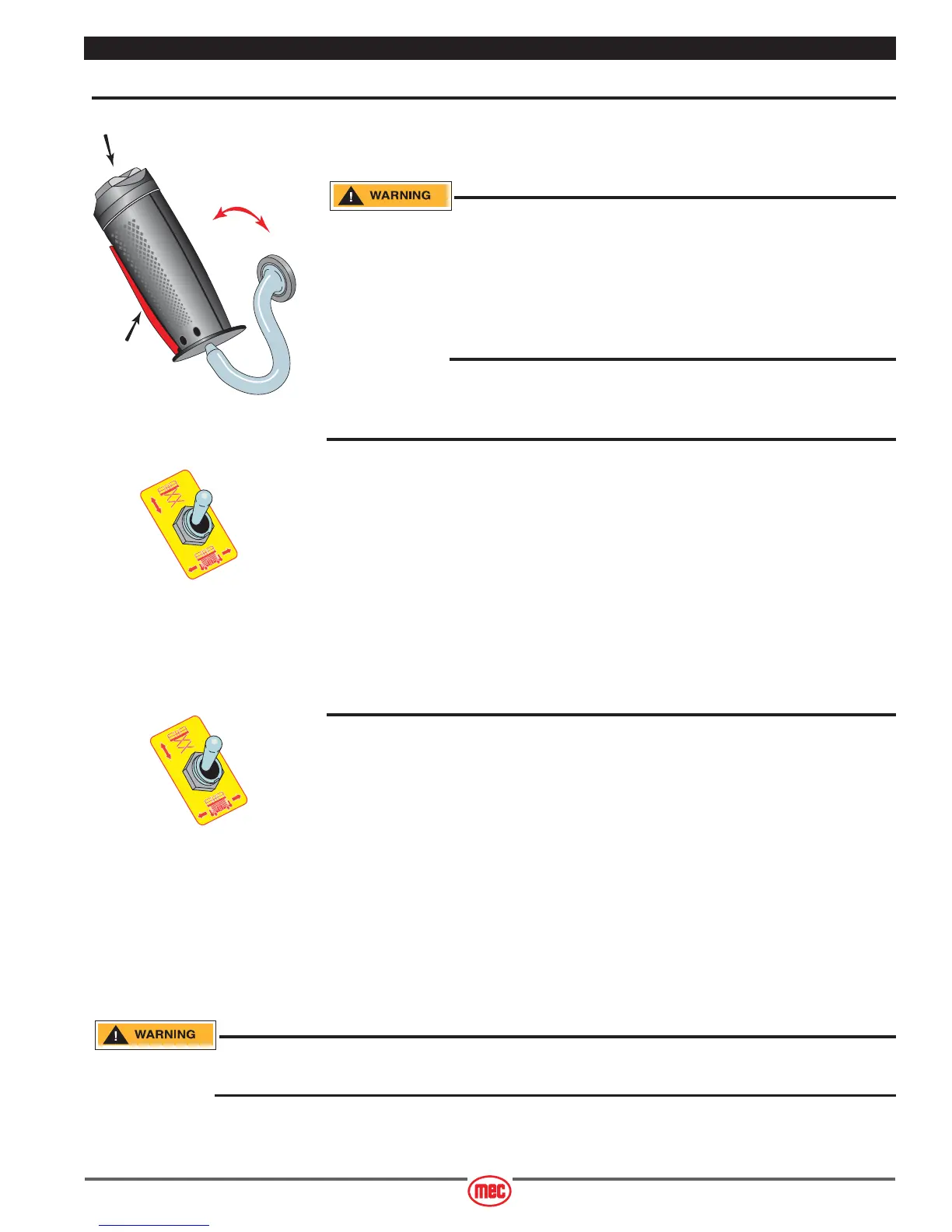

Joystick Operation
• Function speed is proportional and is controlled by the movement of the Joystick.
• The further it is moved forward, the faster the speed will be.
• The Joystick returns to the neutral (center) position when released.
Do not elevate platform unless guardrails are installed and secure
– see Fold Down Platform Railings on page 24.
If the deck is extended, check for clearance beneath the deck
before lowering.
If the platform fails to lower DO NOT attempt to climb down the
scissor assembly. Serious injury may result – see Emergency
Systems on page 22.
Elevate Platform
• Place the Mode Select Switch in the LIFT position.
• Squeeze the Enable Bar and move the Joystick toward you.
Test Operation
• Rate of lift is proportional and is dependent on the movement of the Joystick.
• Elevate to maximum height.
Note: Platform will not elevate beyond 30 ft. (9.15 m) without the outriggers
deployed
• Releasing the Enable Bar or the Joystick will stop elevation.
• Pressing the Emergency Stop Switch will stop elevation.
Lower Platform
• Place the Mode Select Switch in the LIFT position.
• Squeeze the Enable Bar and move the Joystick away from you.
Test Operation
• Rate of descent is fixed - platform lowers at same rate regardless of handle
position.
• Pressing the Emergency Stop Switch will stop descent.
• When lowering, the automatic arm guard cutout function will stop the platform at
approximately 2.5 meter platform height and will sound a fast intermittent beeping
alarm. Release the control lever.
A three second delay is provided for the operator to verify that there are no hazardous
conditions or personnel near the machine. Lowering may resume after these 3
seconds have elapsed when the control lever is engaged and held in the lowering
position.
Check that the route is clear of persons, obstructions, debris, holes and drop -offs, and is capable if
supporting the machine.
IMPORTANT—Always check front steer wheel direction before driving.
ART_2363
Steer
Enable
Bar
Proportional
Joystick
Lower
Lift
Forward
Reverse
ART_2386 R2
ART_2386 R2
