6092RT Fold Down Platform Railings
Fold Down Platform Railings
ART_3013
4 places
ART_3014
ART_3015
8 places
continued…
2
1
3

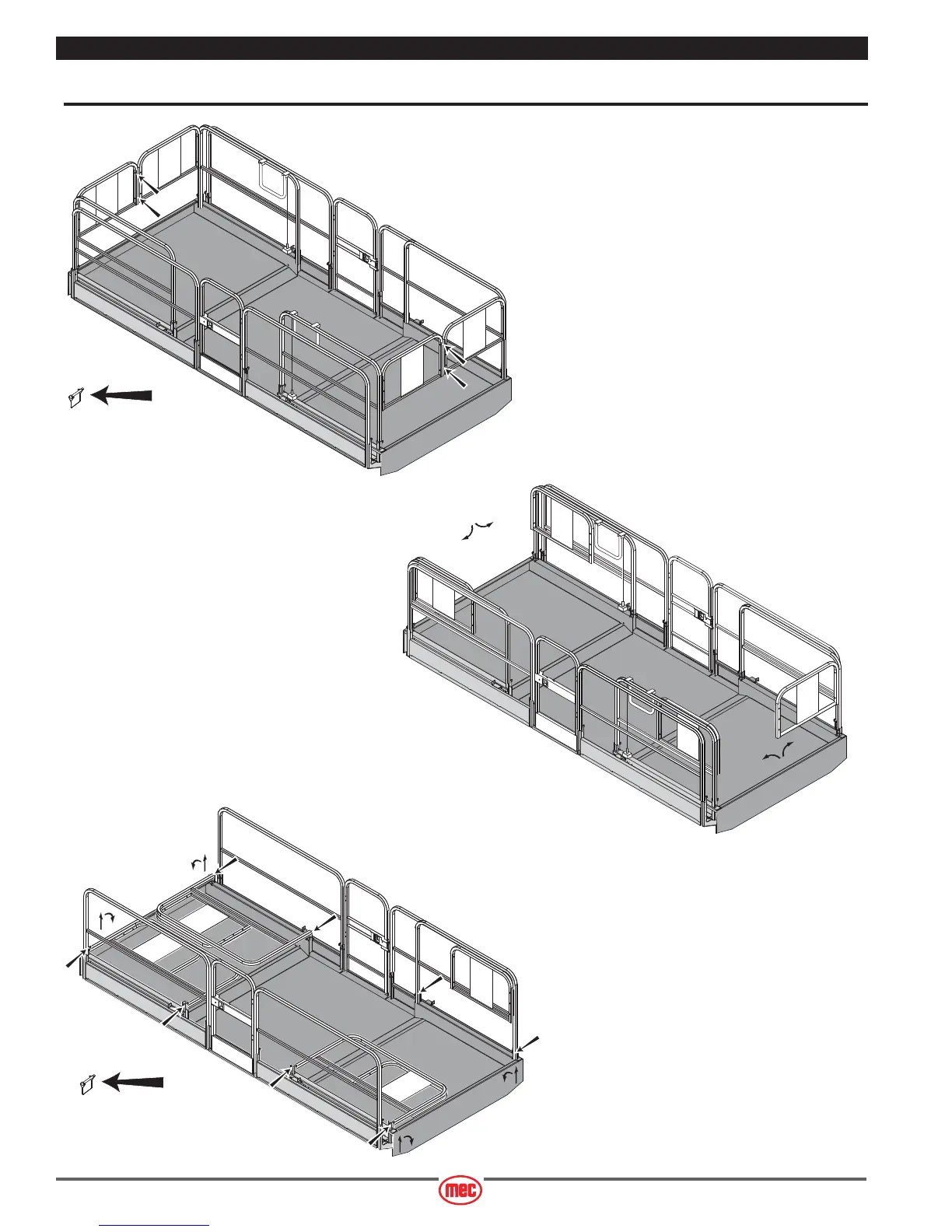

Remove the safety snap pins that secure
the front and rear deck extension rail
panels together. Lift the bracket con-
necting the tops of the deck extension
rail panels.
Swing the deck extension rail panels in-
ward next to the deck extension side
rails and secure with a safety snap pin.
Remove the safety snap pins from the
deck extension side rail bases.
Lift the deck extension side rails, pivot,
and place on the platform floor.
