Multitest 0.5d, 1d & 2.5d
Service and Repair Manual

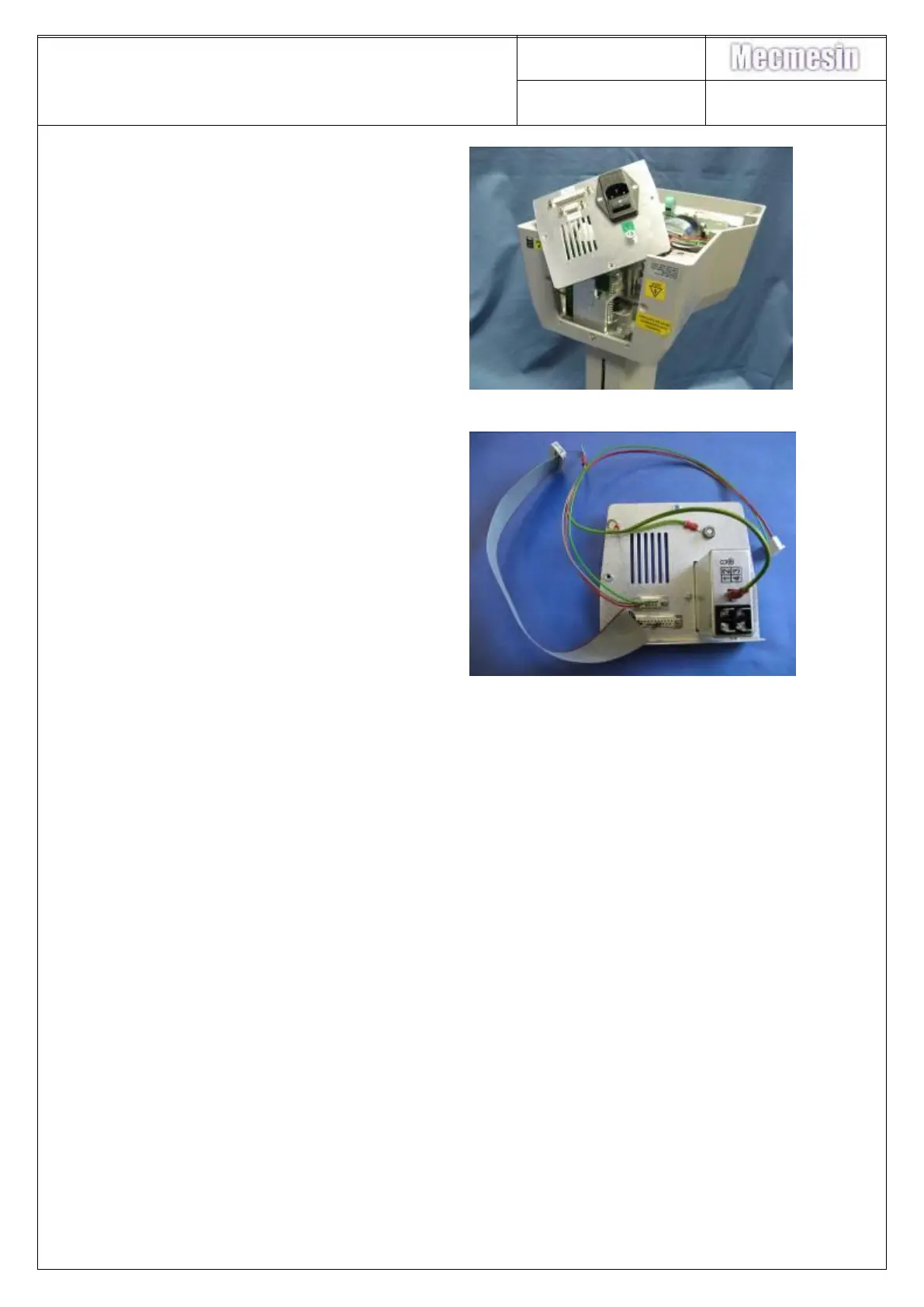

23. The rear panel can now be lifted
partially clear of the base casing.
This gives sufficient access for
replacement of the mains filter,
which is retained in the rear panel
by 2-off M3x12 countersunk
screws and 2-off M3 Nyloc nuts
24. For the complete removal of the
rear panel for replacement as an
assembly, or the replacement of
any of the parts:
disconnect the earth loom from
the back panel
cut the cable ties retaining the
rear panel looms
unplug looms from the PCB
NOTE - record the connections before
removing
Refitting of the Rear Panel and Mains Filter
is the reverse of the above procedure
