Multitest 0.5d, 1d & 2.5d
Service and Repair Manual

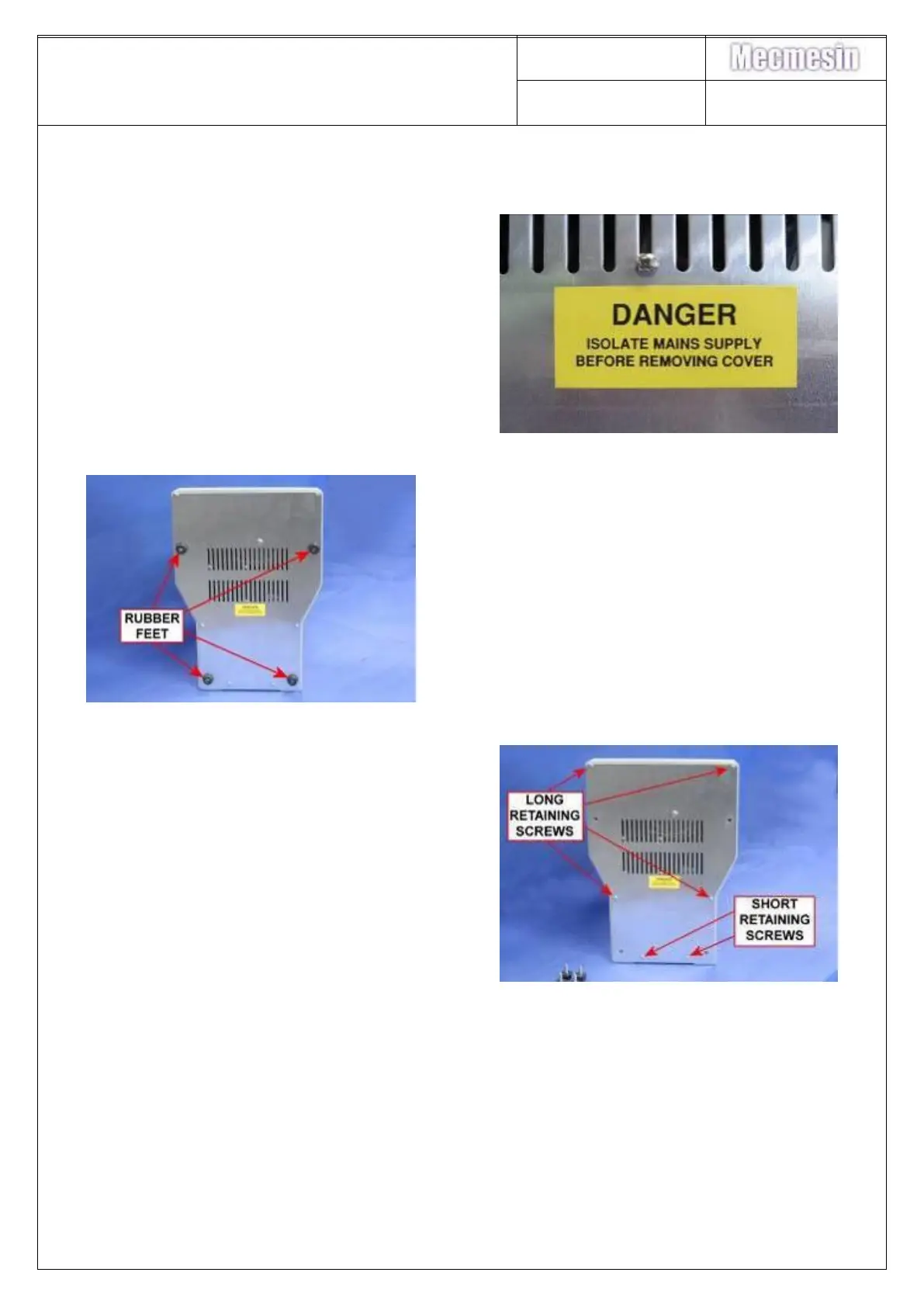

7. Preparation for working inside the base casting
2. Ensure that the test stand is switched-off
and disconnected from the mains supply
3. Support the test stand safely in an
inverted position
4. Remove 4-off rubber feet 22mm
dia x 10mm retained by
countersunk screws.
5. Remove base plate retained by 4-off
M4x12mm pan pozi taptite screws (into
the base casting) and 2-off M4x6mm pan
pozi screws into the rear panel
