Mecmesin Multitest 0.5d - Rear Panel Replacement Dunker

Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
Number 022-005
Issue Number: 08
Page 14 of 58
12. Rear Panel Replacement Dunker
30. Remove the base plate as per 7, Instructions 2 to 6

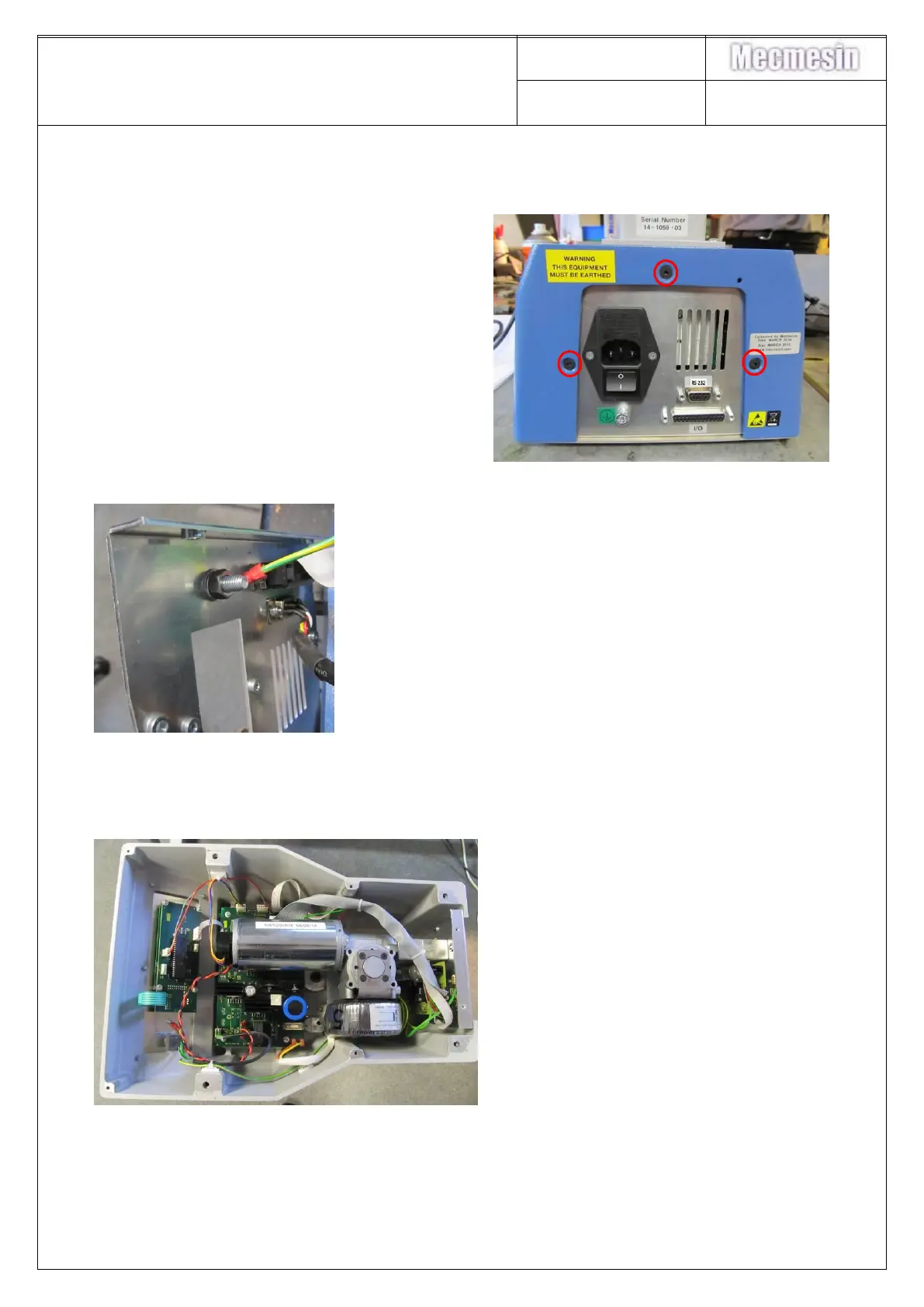

31. Locate the rear panel as identified in the
photograph.
32. Remove the inlet filter as per. Section 11
33. Using a 2.5mm allen key remove the 3-
off screws retaining the Rear Panel to
the base casing. Highlighted in red.
34. Remove the rear panel earth connection
35. Cut the cable ties retaining the
connector looms.
