Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
18. Front Panel & LCD Screen Replacement
NOTE: General anti static precautions should be observed. - To ensure the correct
‘readability’ a 300-164-V01 MT-d FRONT PANEL PCB ASSY and 301-032-V01
MT-d LCD MODULE ASSY are replaced.

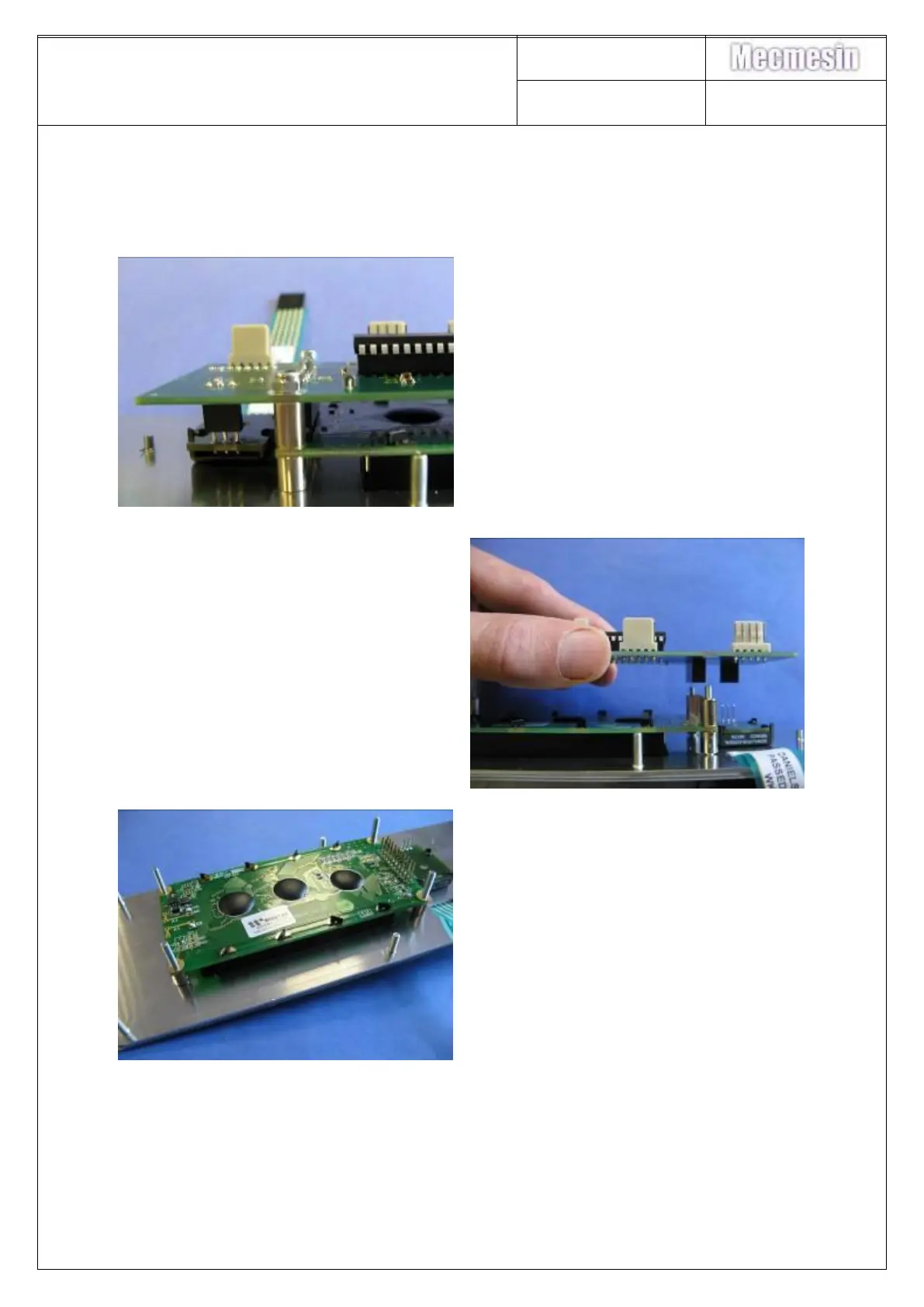

80. Remove the 4-off M3 Nyloc
81. Lift-off the front panel pcb
assembly
82. Remove the 4-off 9mm spacers
and lift off the LCD module
Refitting the front panel interface PCB
is the reverse of the above procedure
