340-104 – MultiTest-d LCD firmware.
Implemented in version 1.01-03 (DCR1971) June 2012
-------------------------
1) MultiTest-d sends corrupted data with AFG/BFG. (Flyspray ID681)
- Data transmission routines modified to prevent corrupted data packets
being sent to Emperor Lite when used with AFG/BFG.
Implemented in version 1.01-02 (DCR 1607). March 2010
‘Error code 6 & Error code 10 messages. (Flyspray ID 157).
- Parameter addresses in eeprom moved to new previously unused addresses.
Implemented in version 1.01-01 (DCR 1574). April 2009
- Communication corruption when E-Stop engaged. (Flyspray ID 123).
Configuration commands now do not cause communication failure when E-
Stop engaged.
Separate error codes for motor control and front panel PCB’s. (Flyspray ID
124).
- Eeprom error codes changed to be different from motor control eeprom error
codes.
Official release of Vortex-d (code written for 1.01-00).
Implemented in version 1.01-00. (Prototype release only).
Code updated to allow it to be configured as a Vortex-d
6. Visual Identification of Motor Type

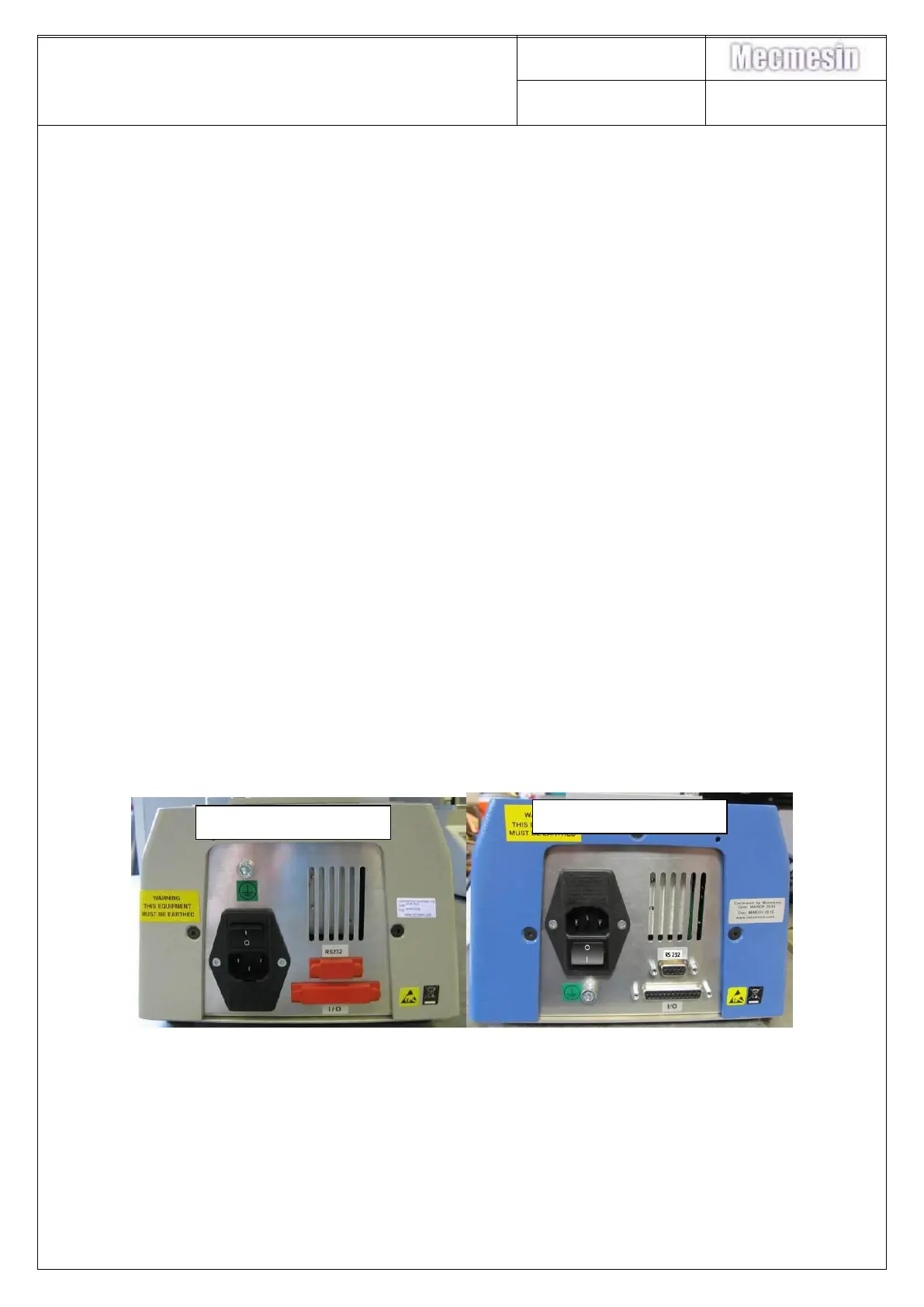

1. The earth stud and position/orientation of the inlet filter can be used to identify
the motor type.
Parvalux Stand
Dunker Stand
