Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
21. Ballscrew Coupling Replacement

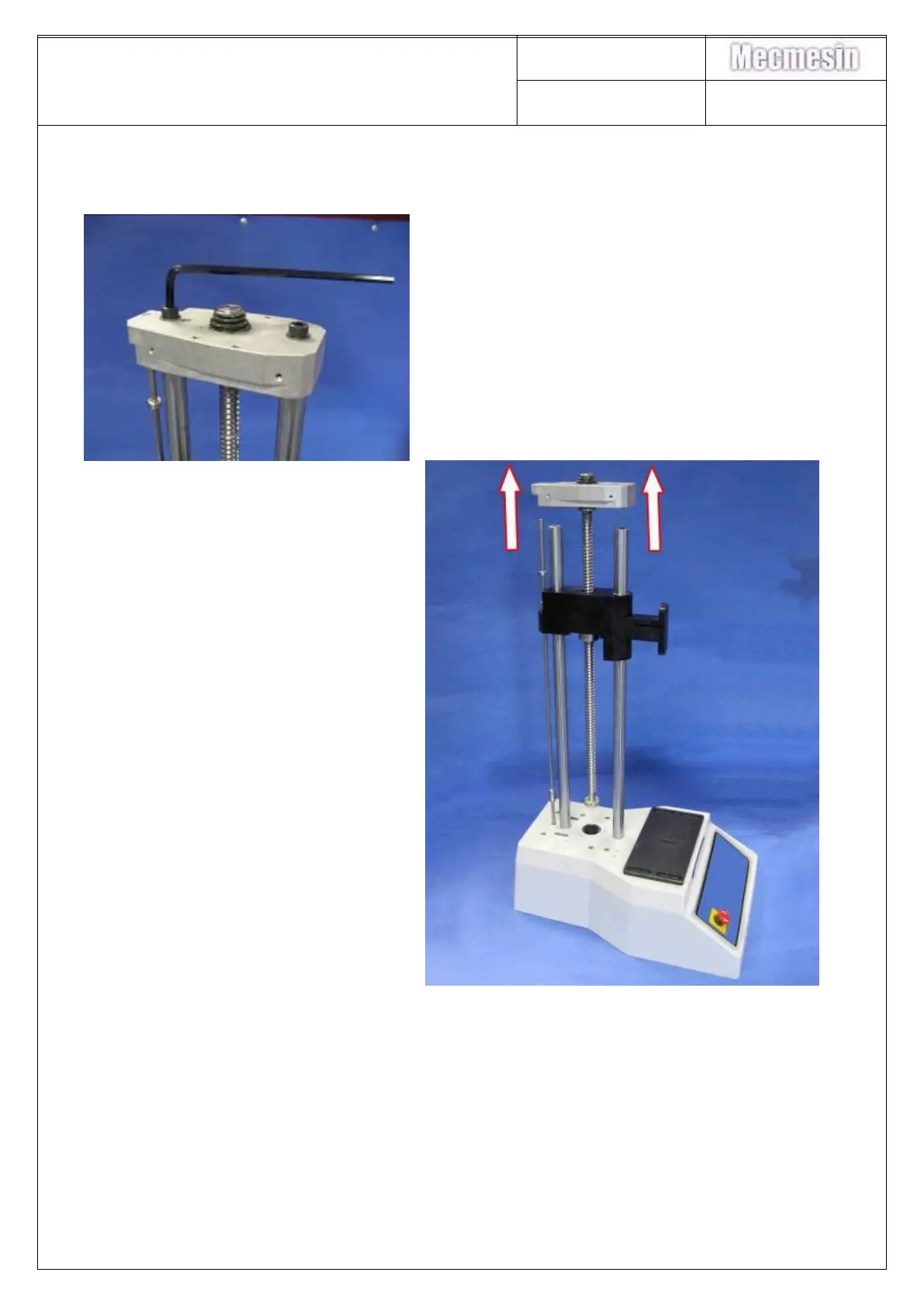

94. Remove the shroud as per Section 20.
95. Remove M8 x 20 socket cap head screws
retaining top crosshead to columns
96. Lift top crosshead clear of
columns. BEWARE: the moving
crosshead will come up against
the limit switch fixed top collet if
lifted too high. Lower the moving
crosshead if necessary.
