Mecmesin Multitest 0.5d - Rear Panel & Mains Filter Replacement Parvalux

Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
Number 022-005
Issue Number: 08
Page 11 of 58
10. Rear Panel & Mains Filter Replacement Parvalux
19. Remove the base plate as per 7, Instructions 2 to 6

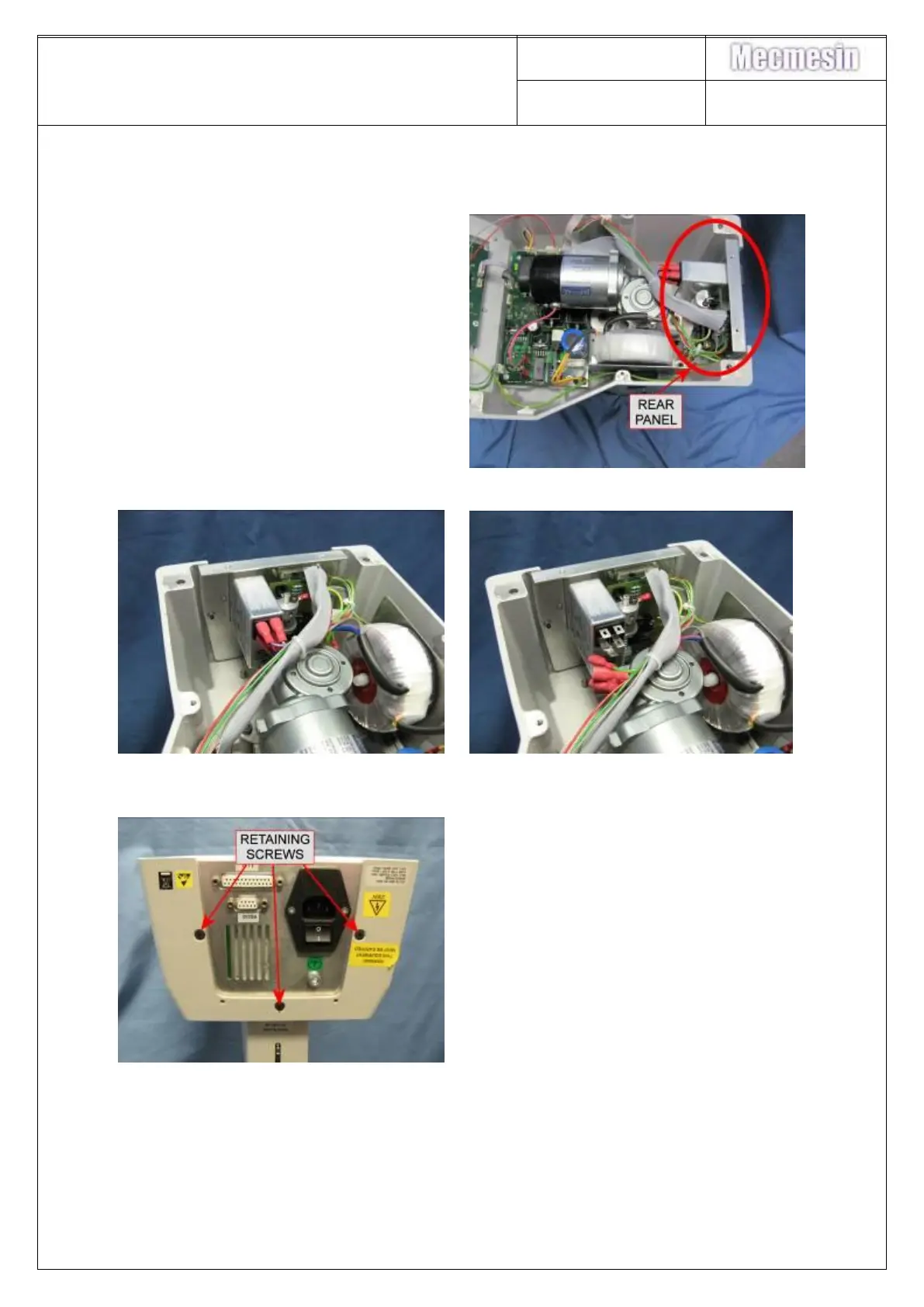

20. Locate the rear panel as identified
in the photograph
21. Disconnect grey/blue/brown/mauve connectors from transformer to mains
inlet filter
22. Using a 2.5mm allen key remove
the 3-off screws retaining the Rear
Panel to the base casing.
