Multitest 0.5d, 1d & 2.5d
Service and Repair Manual

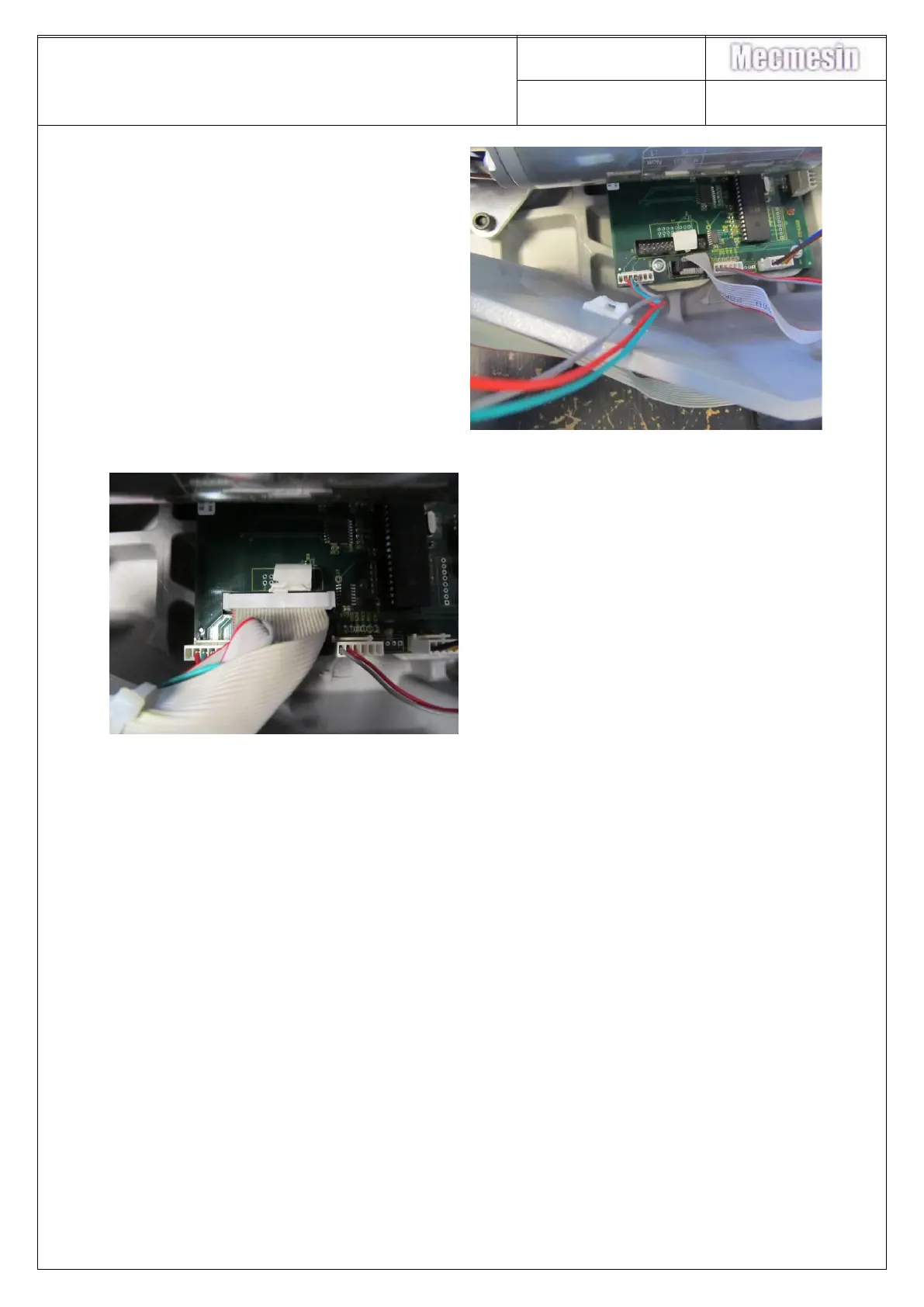

36. Disconnect rear panel RS232 loom
(352-193) from J19 on the control
board.
37. Disconnect the communications loom (352-190) rear panel (I/O) from J6 on the
control board
38. The complete rear panel can now be lifted out for replacement as an assembly,
or the replacement of the panel itself, or any of the connectors/looms
Refitting of the Rear Panel is the reverse of the above procedure
