Mecmesin Multitest 0.5d - Page 17

Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
Number 022-005
Issue Number: 08
Page 17 of 58

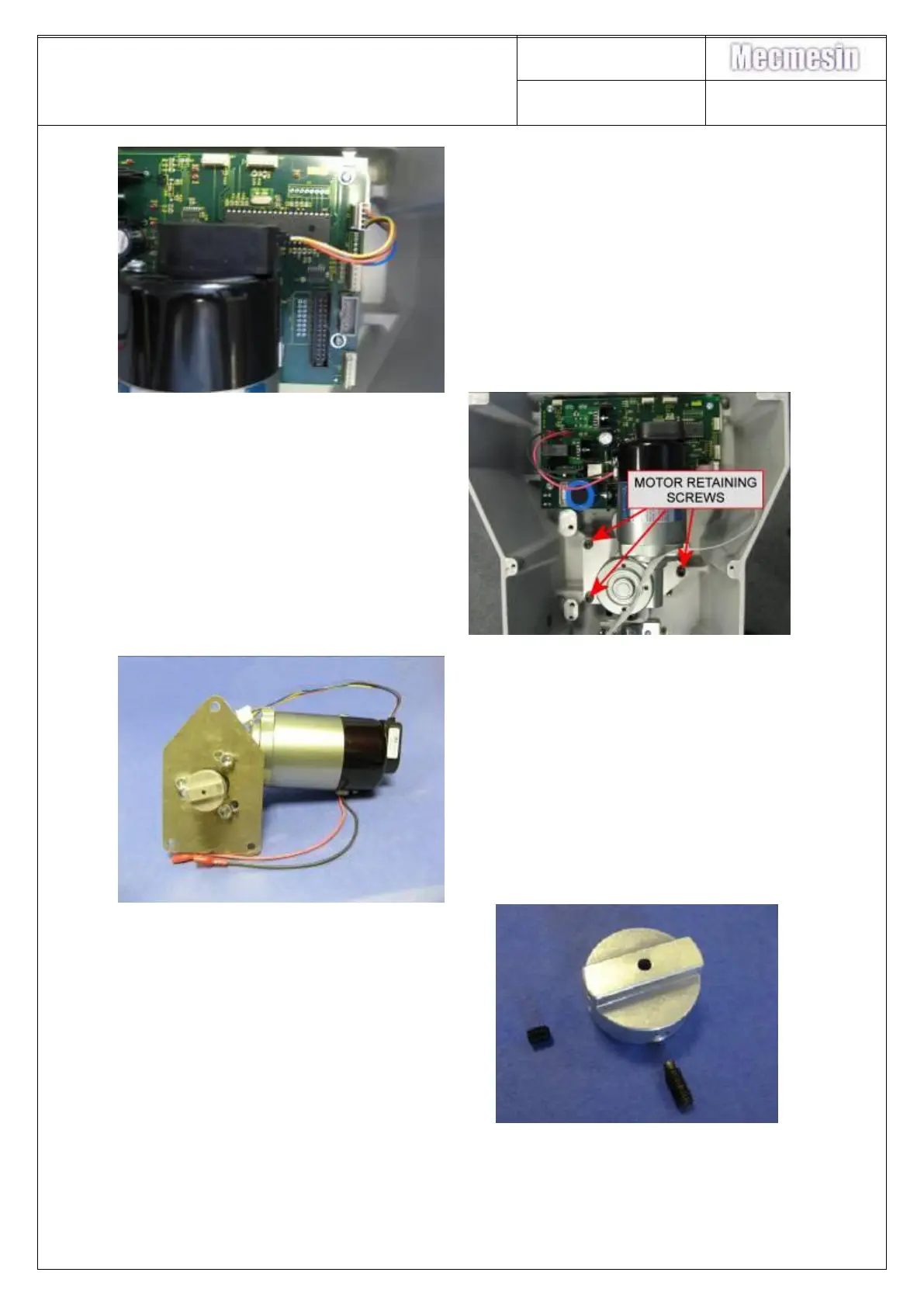

45. Disconnect the motor encoder
loom (brown/yellow/blue/orange)
from the motor’s encapsulated
encoder (tachometer).
46. Remove the 3-off M6x12 socket
cap head motor retaining screws
47. Lift the motor out of the base
casing.
48. Remove the drive coupling from
the motor drive shaft and fit to the
new motor ensuring that the long
dog-point grub screw locates on
the machined flat.
Use Loctite 243 to retain both grub
screws.
Refitting of the Motor
is the reverse of the above procedure
