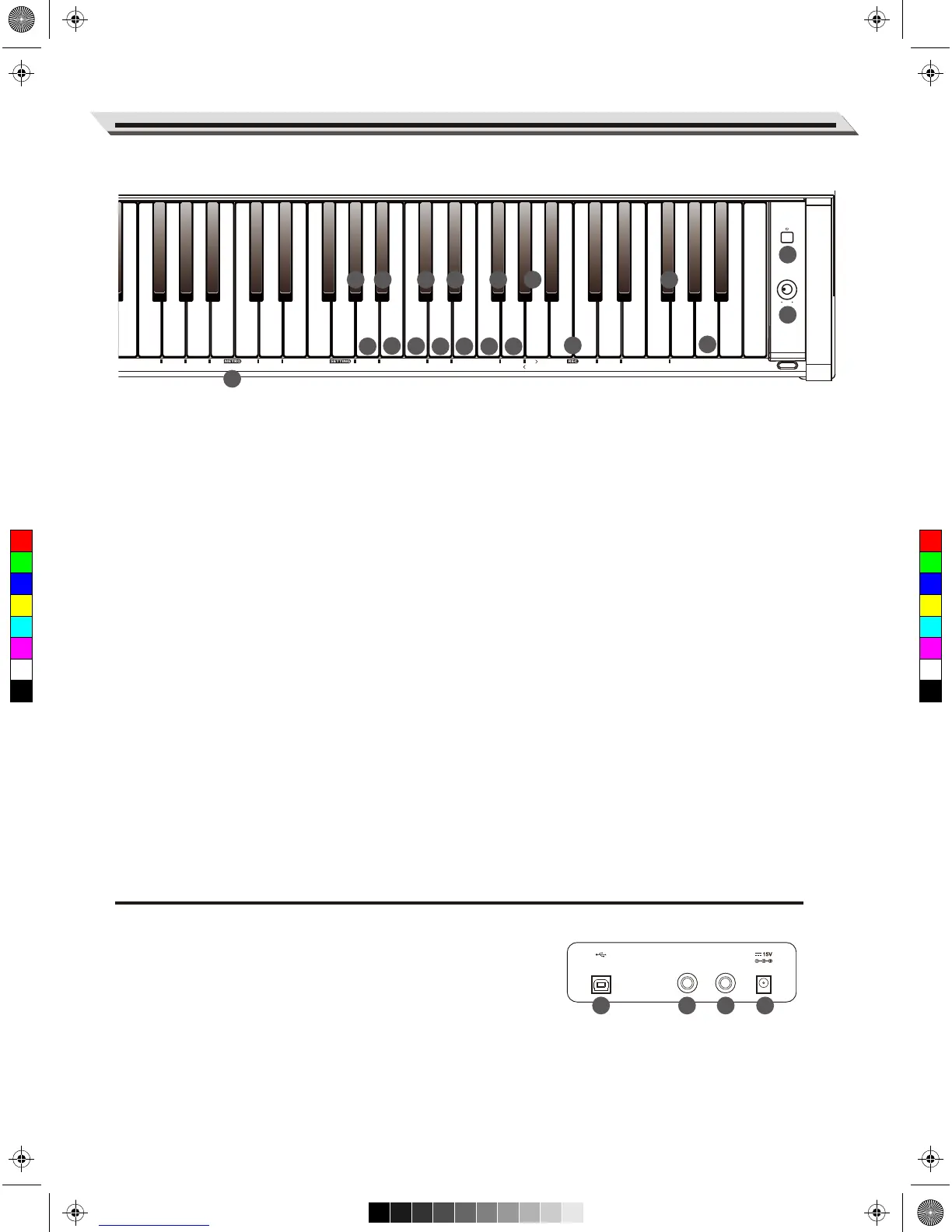

Panel Description
Rear Panel
When [FUNCTION] button is pressed:
16. [METRO] Keys
Press to set the Metronome type.
17. [TRANSP.] Key
Press it to edit the Transpose setting.
18. [TUNE] Key
Press it to edit the Tune setting.
19. [TOUCH] Key
Press it to edit the Touch response setting.
20. [REVERB] Key
Press it to edit the Reverb setting.
21. [CHORUS] Key
Press it to edit the Chorus setting.
22. [METRO-VOL] Key
Press it to edit the Metronome volume.
23. [R1-VOL] Key
Press it to edit the Upper voice volume.
24. [R2-VOL] Key
Press it to edit the Dual voice volume.
25. [L-VOL] Key
Press it to edit the Lower voice volume.
26. [SPLIT] Key
Press it to edit the split point setting.
27. [OCTAVE] Key
Press it to edit Twinova octave setting.
28. [MIDI OUT] Key
Press it to edit the MIDI out channel setting.
29. [<]/[>] Keys
Press to adjust the parameters.
30. [REC] Keys
Press to select a user song to record or to play back.
31. [BEEP] Key
Press it to turn the Beep tone on or off.
32. [D.A.S.]Key
Press it to turn the D.A.S. function on or off.
33. [POWER] Switch
Turn the power on or off.
34. [VOLUME] Knob
Adjust the master volume.
37. USB Jack
Connect to a computer.
38. AUX OUT Jack
Connect to an external audio equipment.
39. AUX IN Jack
Connect an external audio source, such as an MP3 or CD player.
40. DC IN Jack
Connect the specified power adaptor.
05
16
17
18
19 22
23 25 26 28
29
30
31
33
32
34
2724
20
21
AUX OUT AUX IN
37 38 39 40
C
M
Y
CM
MY
CY
CMY
K
