Medeli DP280K - Assembling the Stand Components

Setup

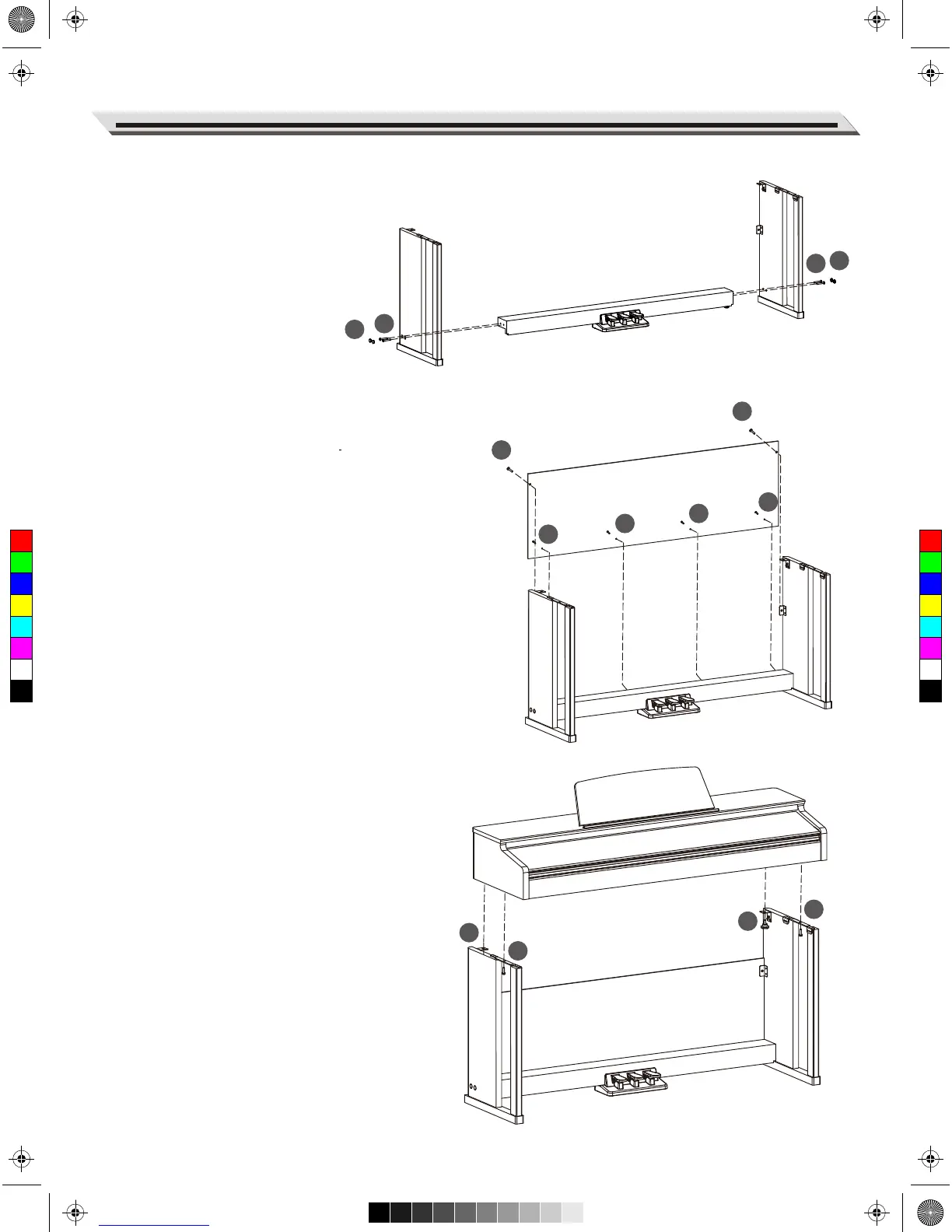

A. Put the pedal box (4) in between the left and right leg components
(2&3), use 4 pieces of screws (8) (2 on each side) to fix the legs
onto the foot pedal unit, then cover the screw caps (10) on top
(2 on each side) (Make sure the components are in the right
direction before installing.).
B. Place the big back board against the stand completed in Step
A, then use screw (9) and screw (6) to fix it to the stand.
C. Put the piano body on the top of the assembly finished
in Step B, then use screws (6) and hand screw (7) to fix it.
