Using the RLC Adapter for Low-voltage Testing

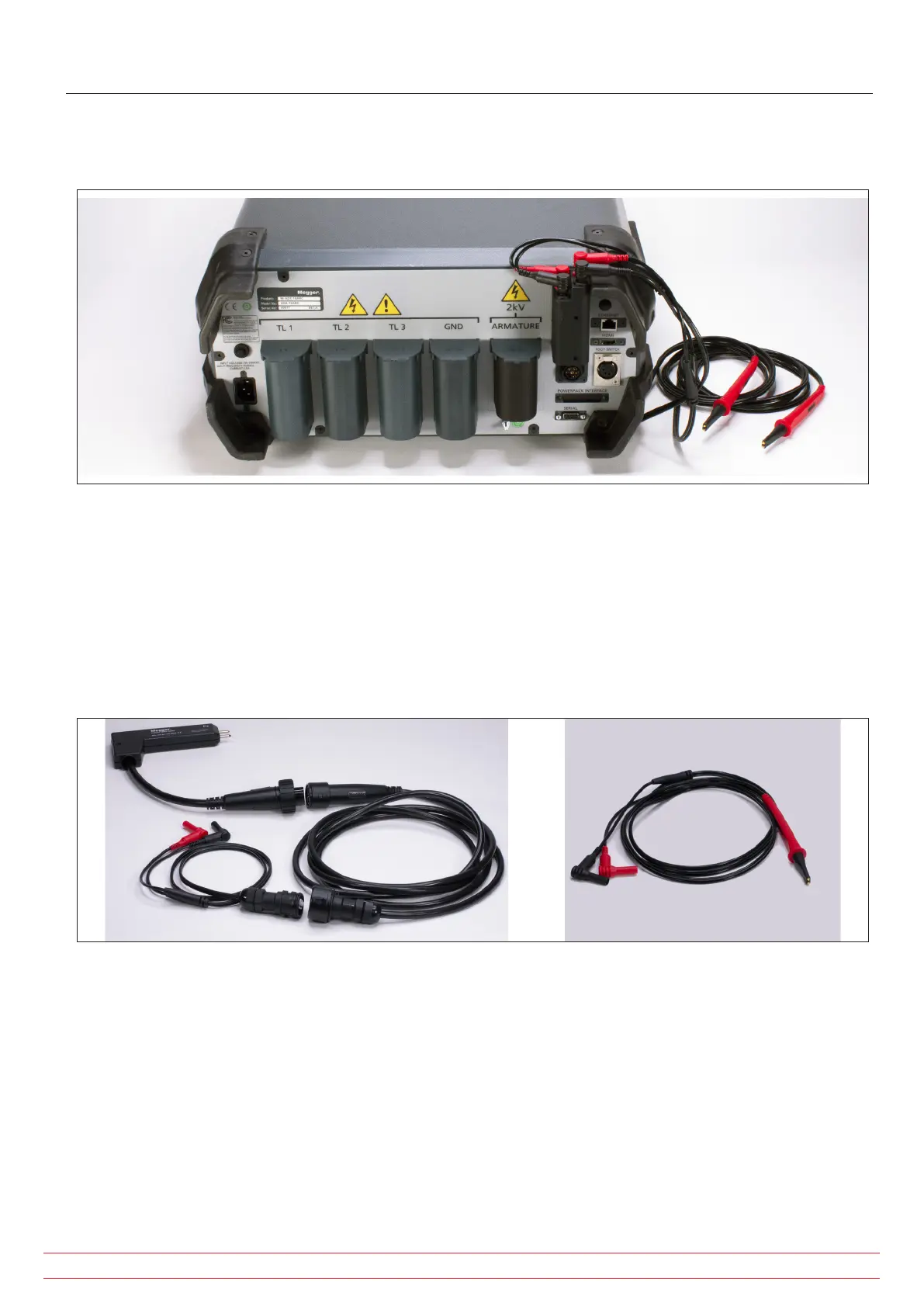

The RLC adapter (optional for most units; standard on ADX15A) is installed on the back of the unit as shown below.
Fig 131: RLC adapter and hand-held probes—smaller probe set shown.
1. Remove the standard lead set from their receptacles and store in their backpack or a clean dry place.
2. Ensure that the RLC test leads are properly connected to the RLC adapter. Connect lead 1 to the lower level and
lead 2 to the upper level.
Two options are included with the ADX15A as shown in the image below. The set on the left uses the DLRO Connect
system with pistol-grip spring-loaded probes. They are typically used on medium or larger sized commutators. The
spring-loaded probes on the right are used for smaller devices.
Fig 132: Armature RLZ testing leads included with the ADX15A.
A variety of other test lead options are available to use with the RLC adapter. Refer to chapter “2 — Megger Baker
ADX Instrument Overview” more information, or contact your Megger Baker Instruments sales representative for
details.
