Low-voltage Test Probes and Clips
The Megger Baker ADX15A includes the RLC adapter and the following accessories for low-voltage testing using the
RLC adapter.

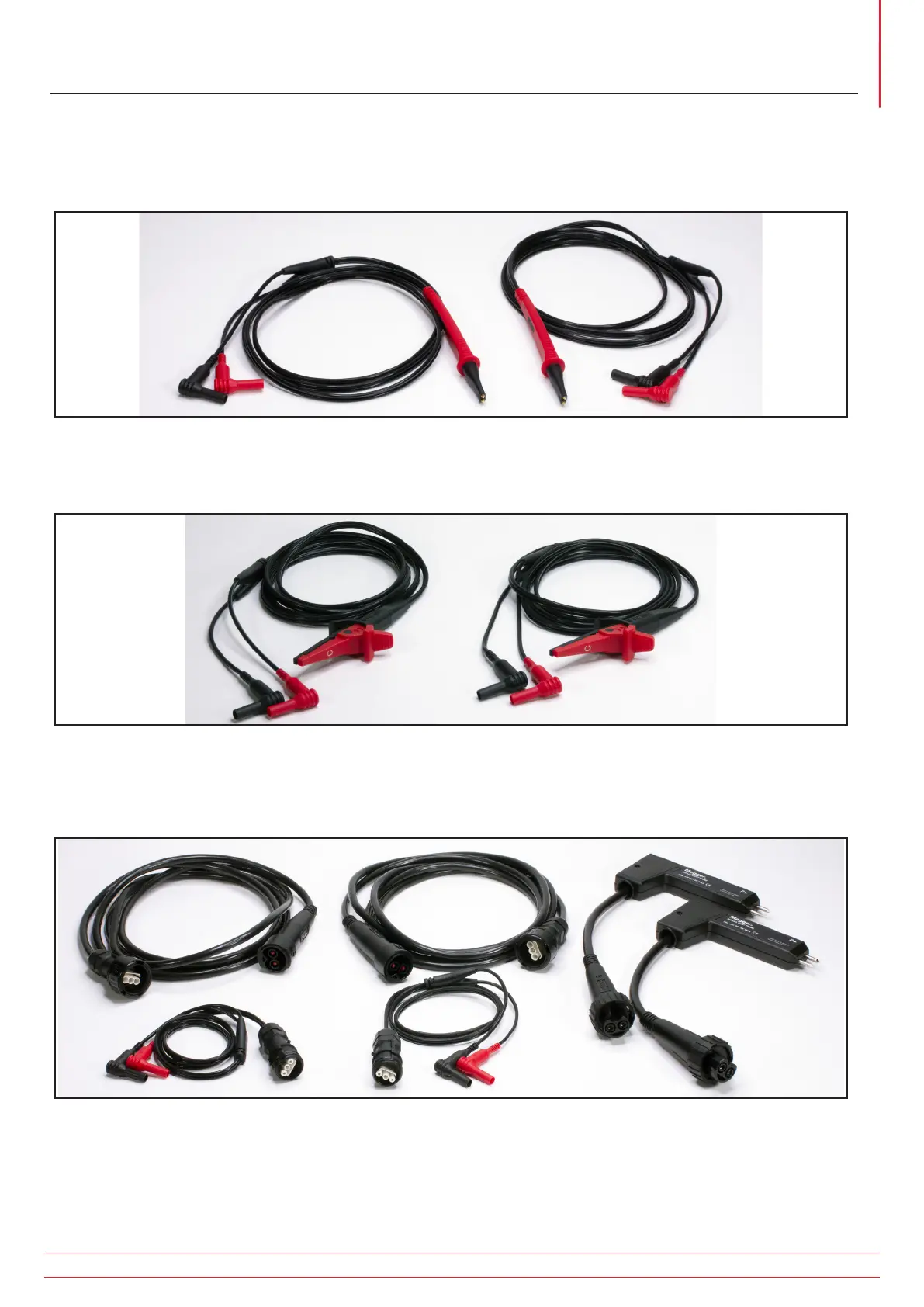

Fig 13: Megger low-voltage Kelvin test leads with probes—1011-929.
Fig 14: Megger low-voltage Kelvin test leads with clips—1011-928.
ADX15A units also include one set of DLRO Connect system components as shown below to accommodate low-
voltage RLC testing for armatures.
Fig 15: DLRO Connect system components included with ADX15A for low-voltage RLC testing.
Additional options for armature testing and other low-voltage testing applications are available when using the DLRO
Connect system (see “General Accessories” below).
www.megger.com
Megger Baker ADX User Guide
17
Armature Test Accessories
