Megger ADX15 - Stop Jumper Connector and Cover

Stop Jumper Connector and Cover
The E-Stop/Safety lights connector is covered by a Stop Jumper connector and cover when external accessories are not
used. If the Stop Jumper connector is not in place, the E-Stop indicator (3) on the toolbar will light and testing will
stop.
Remove or re-install the Stop Jumper connector and cover by turning the inner connector (1) and not the outer cover
(2).

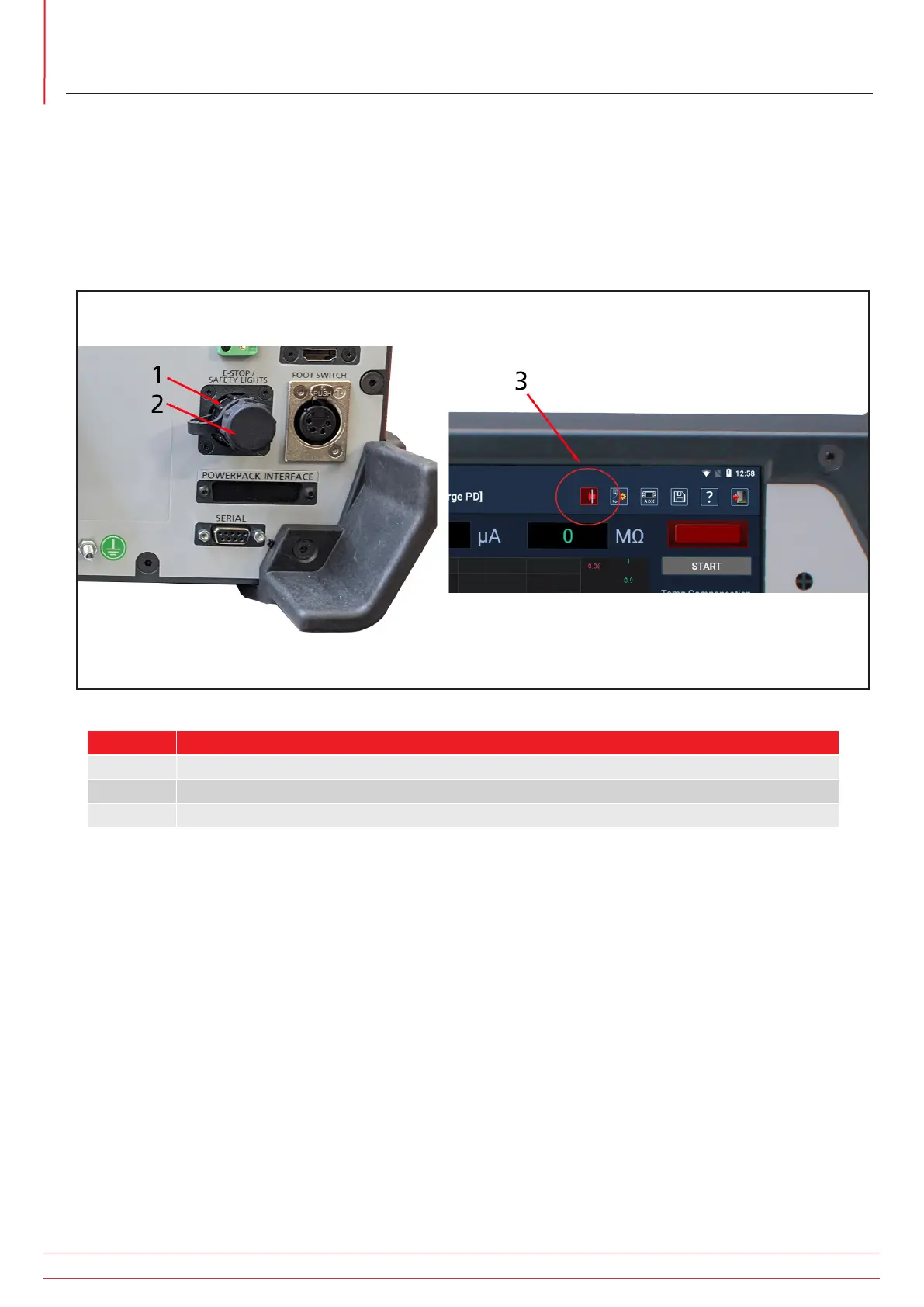

Fig 7: Stop Jumper connectors and cover (left). E-stop indicator in ADX test screen toolbar (right).
No Description
1 Stop Jumper connector.
2 Stop Jumper cover.
3 E-Stop indicator in ADX user interface toolbar.
