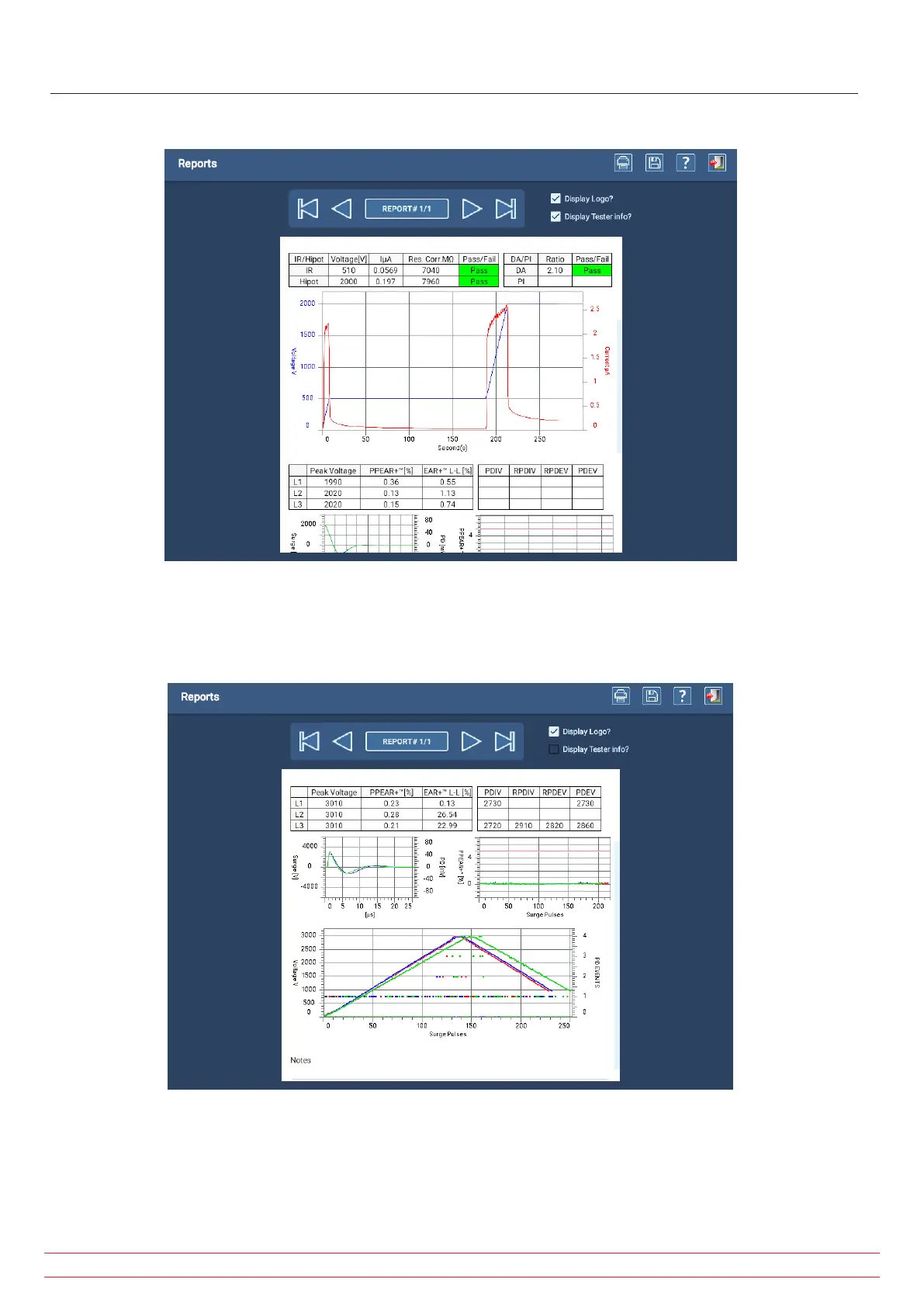

The next example shows a complete view of the DC Test section, along with a portion of the Surge Test results section.
Fig 138: Reports screen with example report—DC Test section.
The last example shows the complete Surge Test section that includes results for PD testing displayed in a table an
complementing house plot.
Fig 139: Reports screen with example report—Surge Test sections.
The ADX integrated Report Generator was designed to generate simple summary-styled reports. If you need to view
and generate reports with additional features, use PowerDB Dashboard to leverage more options.
