5.14.3 Quick Test Modes
During every test, low voltage (less than 1V) is ap-
plied as a safety and connection test. If no safety or
connection failures are found, the test progress as
per the test mode selection.
Auto test mode uses the results of the safety and
connection test to determine:
1. If the test can be performed in step up mode,
and
2. If a 3Ø test is possible. If a 3Ø test is not possible,
a 1Ø test is executed if no safety or connection
issues are present.
Step up applies voltage to the secondary/tertiary and
induces voltage on the primary.
Step down applies voltage to the primary and induc-
es voltage on the secondary/tertiary.
3Ø applies and measures voltage on all three phases
simultaneously.
1Ø applies and measures all three phases individually.
5.14.2 Quick Test Buttons
Options
Available Settings
Test Voltage
Output
Starts test

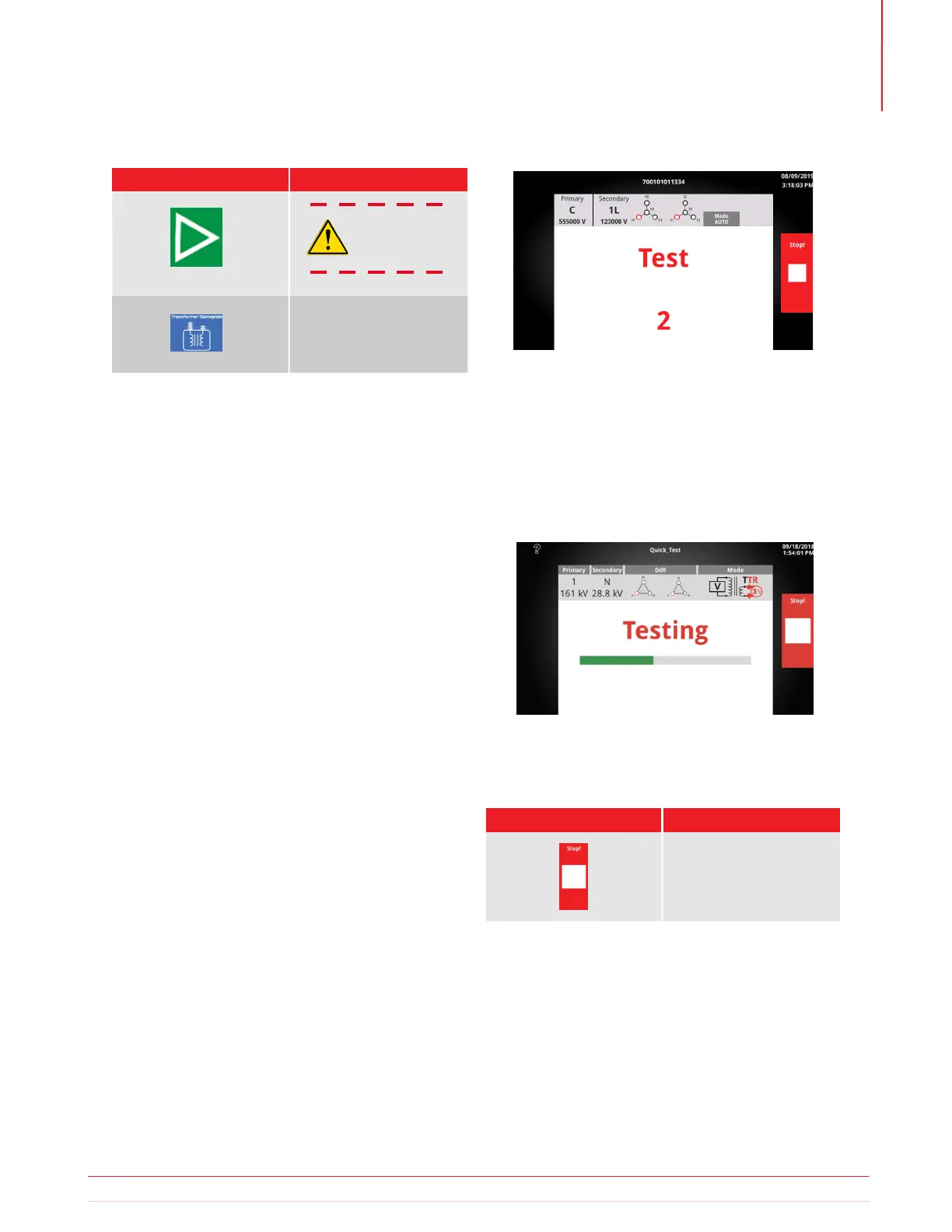

5.15.1 Test in Progress
Buttons
5.15 Test in Progress
After clicking Test, a prompt will appear to confirm
the default Test ID if none was entered. If a Test ID
was entered, or if the prompt is confirmed:
1. A brief countdown is displayed if Test Buzzer is
enabled
2. After the countdown, the test begins. If the op-
tional beacon is connected, it will begin to flash
Button
Description
Stop!
Stop the test
Emergency Stop
recommended if safety
hazards arise
