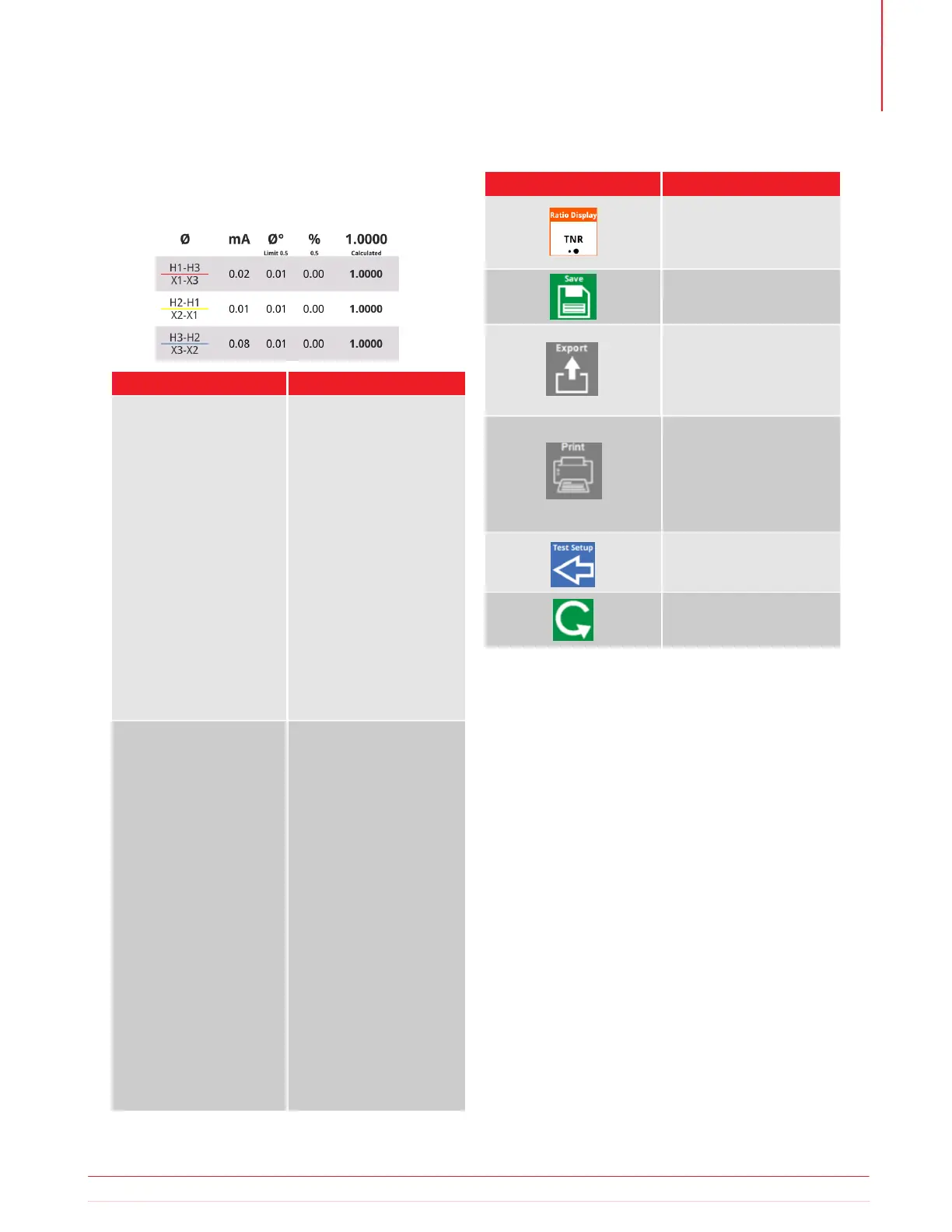

5.17.2 Ø Information
Below the header is Ø information. If a single Ø test
is run, only one row of results will be available.
Information Description
Ø Labels
mA
Current draw
Ø Deviation
° or “ based on settings
Limit displayed based
on settings
% Error
Limit displayed based
on settings
Ratio
Nameplate/calculated ratio
from tap voltages
1st Row
Column Descriptions
2nd, 3rd, 4th rows
ØA, ØB, ØC Data
Ø Labels
Based on nameplate
settings and selected
vector
mA Current draw
Ø Deviation
Will display in red if
exceeds limit
% Error
Error calculated from
nameplate ratio &
measured ratio
Will display in red if
exceeds limit
Ratio
Will display in red if
exceeds % error limit
5.17.3 Test Success Buttons
Button Description
Ratio Display
TNR/TTR Display
Test Setup
Return to setup without
saving result
Export Result
Exports to thumb drive,
saves, and returns to setup
with new Test ID
Print Result
Available if optional
printer connected.
Prints, saves, and returns
to setup with new Test ID
Save Result
Save and return to setup
with new Test ID
Retest
Retest without saving
result
