Product Description
Memotec Inc. 4-11
4.8 Rackmount Kit
One rackmount kit is supplied with the unit for mounting in a standard 19" (48 cm) rack.
The ordering part number for the SDM-9220/9230 are 100-1086-001 while it is KT-
0021088 for the SDM-9120. To assemble the rackmount kit and install the unit in a rack,
refer to “Installing the Unit in a Rack” on page 3-20.
For the SDM-9220/9230 units, the kit includes:
• Two brackets (left and right)
• Six small screws for the brackets: Phillips 5 mm (3/16”)
• Four mounting screws with washers: Phillips 10 mm (3/8”).
4.8.1 Using the mounting brackets for the SDM-9120
To place the unit in a rack, follow these steps:
1. Secure the rack so that it does not move during the installation.
2. Prepare the mounting brackets and the support screws. See Figure 4-5.
When you unpacked your unit, locate a pair of mounting brackets with a bag of
mounting screws. The larger screws secure the mounting brackets to the unit. The

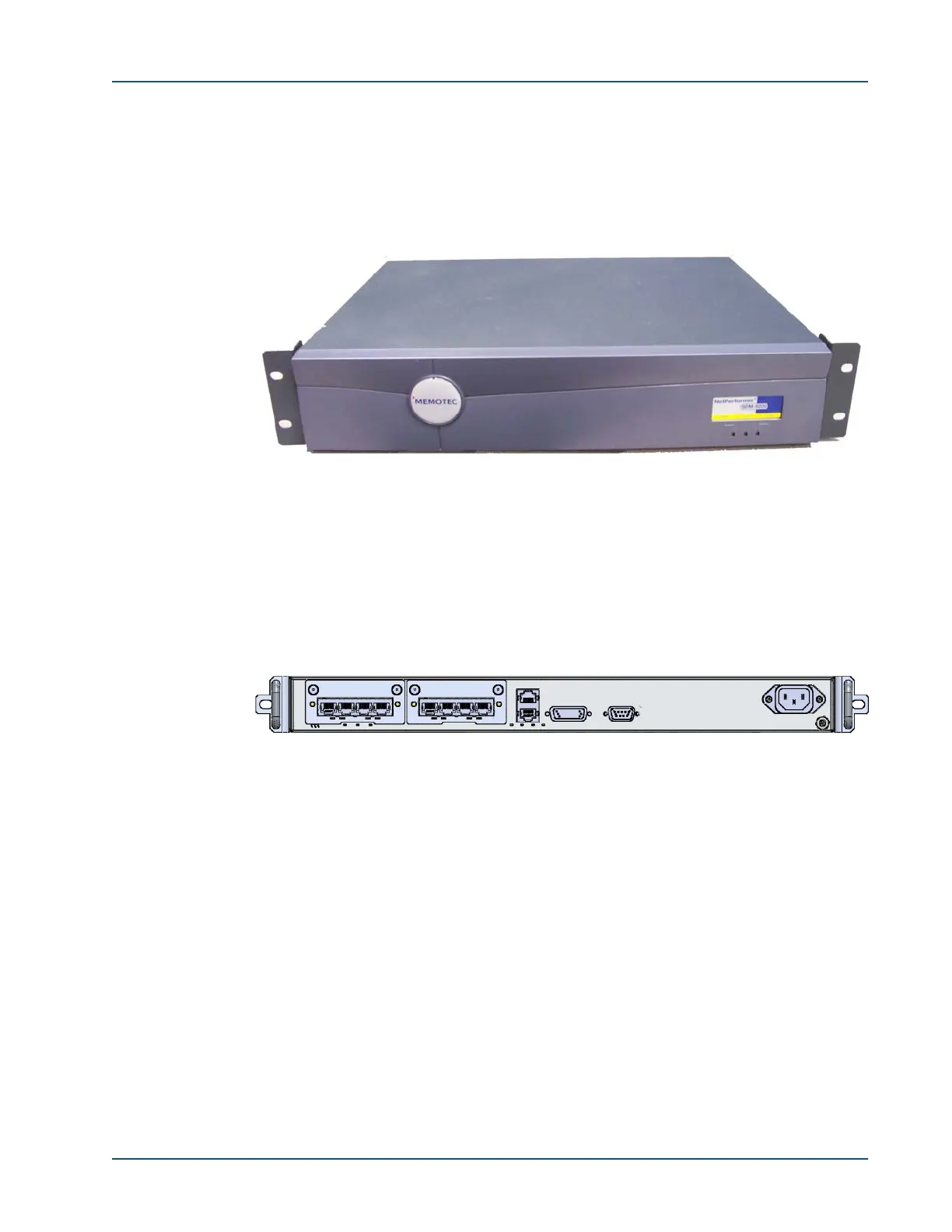

Figure 4-3: SDM-9220/9230 Installed with rackmount brackets
Figure 4-4: SDM-9120 with rackmount brackets
