System Architecture
Specifications
Control Panel
Part No.: TS590 - 6 to 14 zones
Input
Supply: 230V ±10% 50Hz
Current: 110mA (normal)
250mA (alarm) with speaker
Power Supply: 1.0A
Standby Battery: 7.0Ah
Digi Outputs 1-5: +ve removed
Source 5mA in 12V condition
Sink 100mA in 0V condition
Speaker Output: 16 Ohms
Bell Trigger: Switched -ve @500mA
Strobe Trigger: Switched -ve @500mA
Dimensions: 384(W) x 312(H) x 95(D) mm
Material: 1.2mm mild steel
Weight: 4.9 Kg
Environment: -10 to 55 °C
LCD Remote Keypad
Part No.: NETLCD
Display: 32 character Liquid Crystal
Green power LED
Red function LED
Current: 50mA (normal) 60mA (alarm)
Zones: (NETLCD only) 2
Output: (NETLCD only) Switched -ve
@100mA
Dimensions: 150(W) x 104(H) x 30(D) mm
Material: 3mm Polycarbonate
Weight: 282g
Environment: -10 to 55 °C
TS700 LEC
Part No.: TS700.LEC
Current: 30mA (normal) 40mA (alarm)
Zones: 2
Output: Switched -ve @100mA
Dimensions: 142(W) x 82(H) x 36(D) mm
Material: 3mm Polycarbonate
Weight: 213g
Environment: -10 to 55 °C
LEC 6
Part No.: TSLEC6
Current: xxmA (normal) xxmA (alarm)
Zones: 6
Output: Switched -ve @100mA
Dimensions: 142(W) x 82(H) x 36(D) mm
Material: 3mm Polycarbonate
Weight: 213g
Environment: -10 to 55 °C
5
TS590 Installation Manual Overview
Printer
Speaker
Aux 12V
DCI Connection
Bell output
Strobe
output
Digi outputs 1- 5
Remote
Network
TS690
Number of Zones = 6 to 14
6 Zones
(DP / EOL)
Remote
Keypad
or LEC
Remote
Keypad
or LEC
Remote
Keypad
or LEC
Remote
Keypad
or LEC

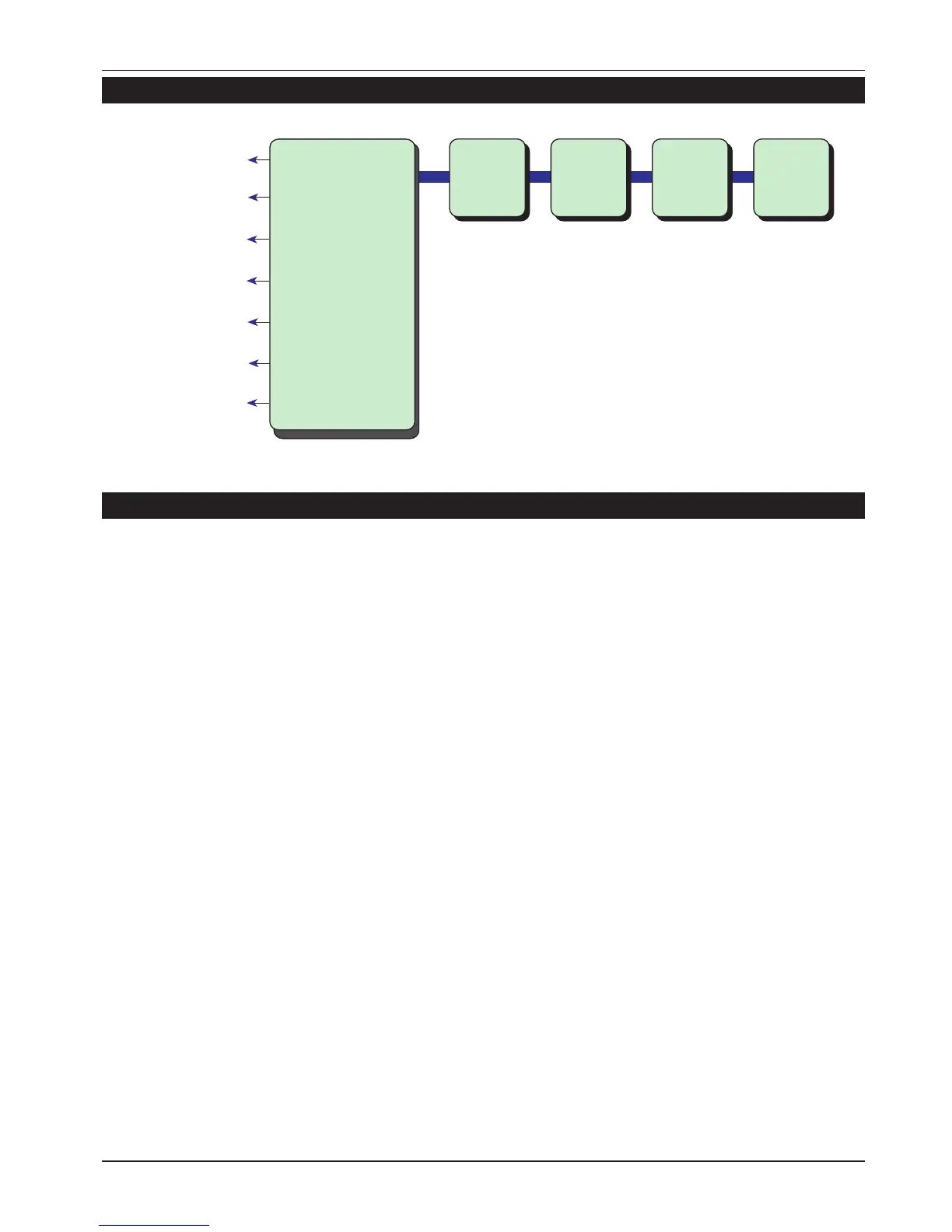

Figure 1. TS590 System Architecture
