MAXIMUM OUTBOARD MOUNTING HEIGHT

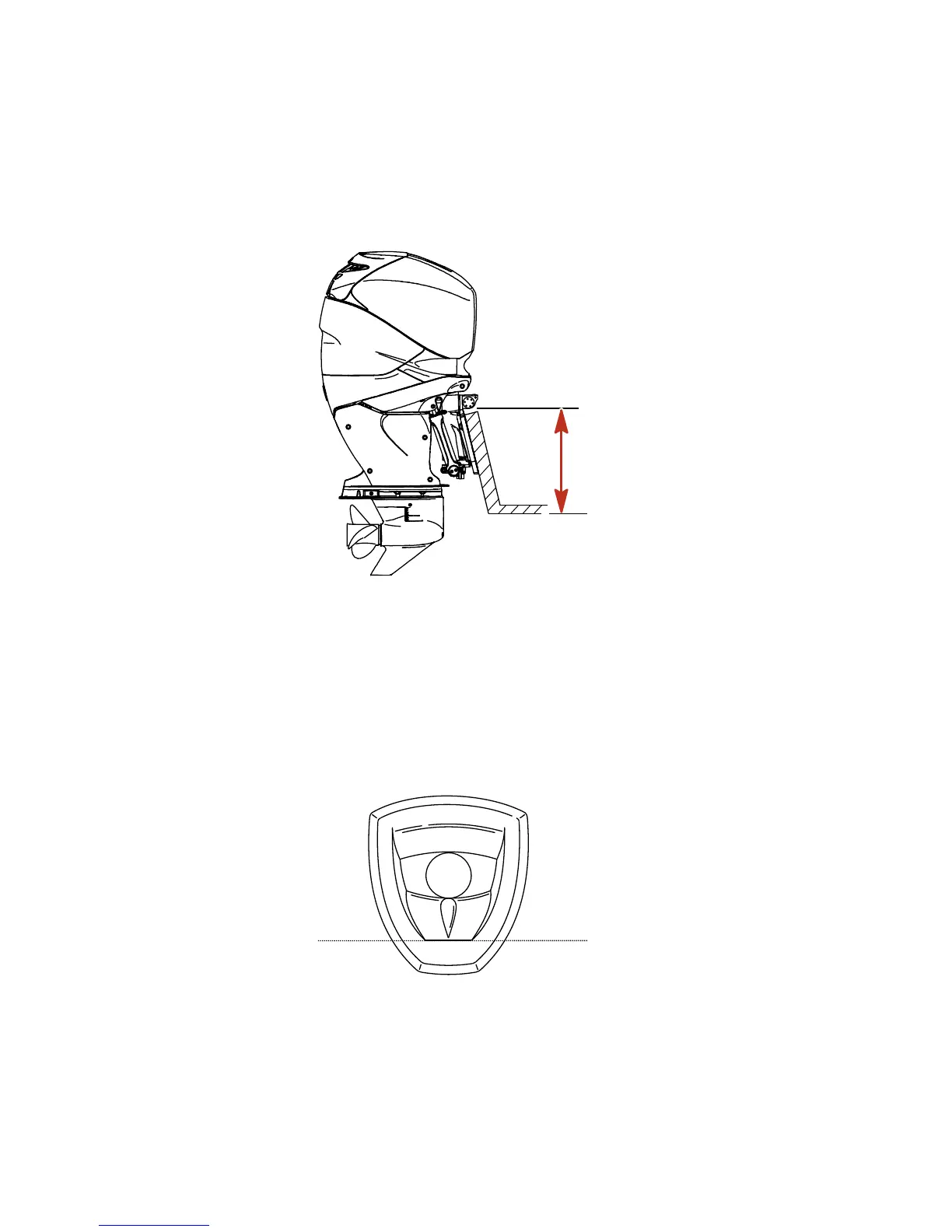

The mounting height of the outboard must not exceed
63.5 cm (25 in.) for L models, 76.2 cm (30 in.) for XL models and
88.9 cm (35 in.) for XXL models. Mounting the outboard higher may
cause damage to the gearcase components.
ob01312
Maximum Static Waterline
The static waterline, with boat at rest, must be below the "MAX
STATIC WATERLINE" mark on the idle relief grommet (located at
the rear of the outboard) when the outboard is fully tilted in/down.
If waterline is above "MAX STATIC WATERLINE" mark, adjust
boat load forward or increase (raise) outboard mounting height to
correctly place mark above waterline.
MAX STATIC
WATERLINE
4224
