FEATURES AND CONTROLS
40

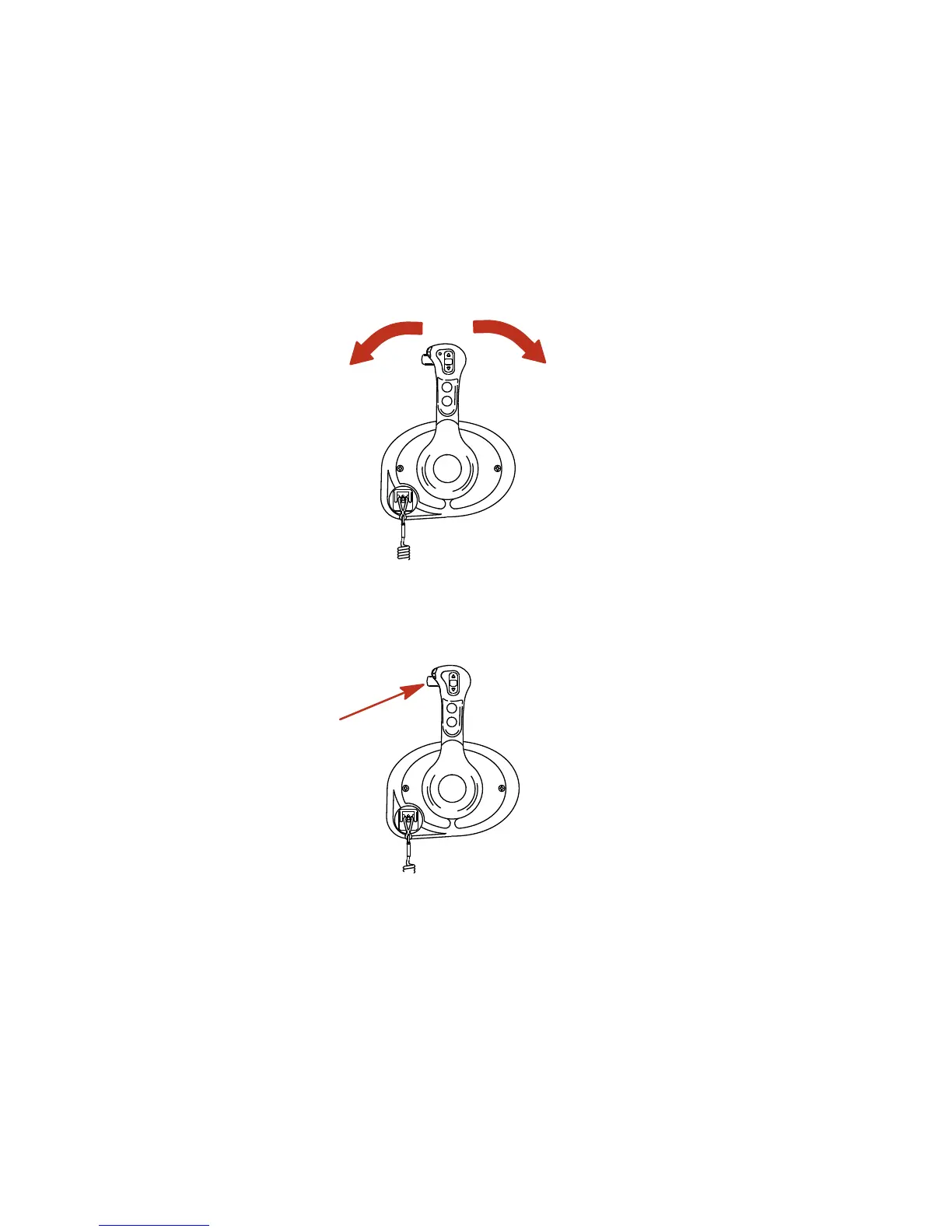

Panel Mount Control Features and Operation
1. Operation of shift and throttle is controlled by the movement
of the control handle. Push the control handle forward from
neutral to the first detent for forward gear. Continue pushing
forward to increase speed. Pull the control handle back from
neutral to the first detent for reverse gear. Continue pulling
back to increase speed.
F
N
R
3413
2. Shift lock - Pressing the shift lock allows the engine to shift.
The shift lock must always be pressed when moving the
control handle out of the neutral position.
3428

Table of Contents

Other manuals for Mercury 200 VERADO

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercury 200 VERADO and is the answer not in the manual?

Mercury 200 VERADO Specifications

General IconGeneral
Engine Type4-Stroke
Gear Ratio1.85:1
Full Throttle RPM Range5800-6400 RPM
Fuel SystemElectronic Fuel Injection (EFI)
ExhaustThrough Prop
Horsepower200 HP
Fuel Induction SystemElectronic Fuel Injection (EFI)
Shaft Length20", 25"
StartingElectric
Fuel Type87 Octane
Cylinder ConfigurationInline-6
Cooling SystemWater-cooled with thermostat
