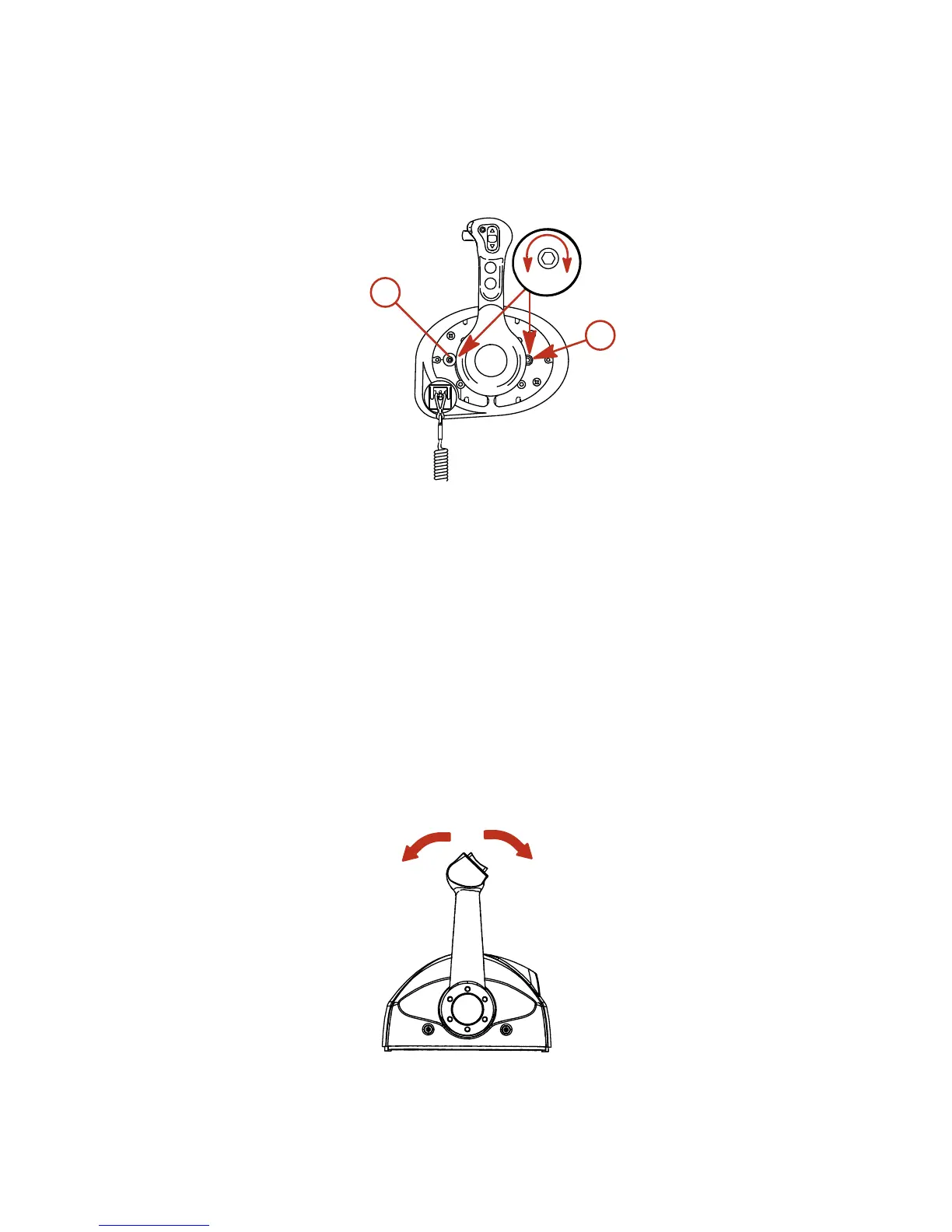

8. Detent tension adjustment screw - This screw can be adjusted
to increase or decrease the effort to move control handle out
of detent positions (cover must be removed). Turning screw
clockwise will increase tension. Adjust to tension desired.
5171
+
-
a
b
a - Detent tension
adjustment screw
b - Control handle tension
adjustment screw
Single Handle Console Control Features and
Operation
1. Operation of shift and throttle is controlled by the movement
of the control handle. Push the control handle forward from
neutral to the first detent for forward gear. Continue pushing
forward to increase speed. Pull the control handle back from
neutral to the first detent for reverse gear. Continue pushing
back to increase speed.
F
N
R
3417
