Mercury 200 VERADO User Manual

FEATURES AND CONTROLS
44

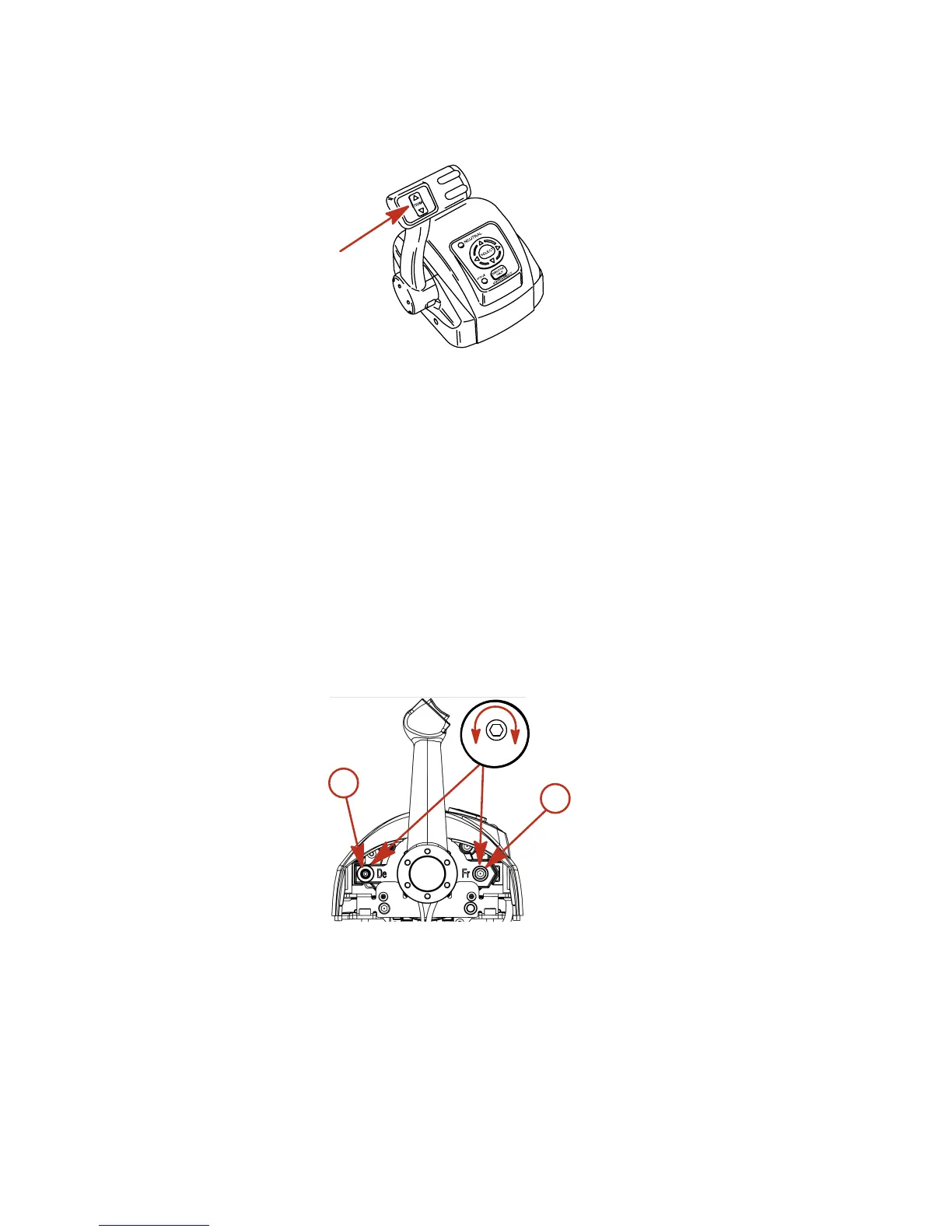

2. Trim switch (if equipped) - Pressing the trim switch allows the
engine to trim up or down.
5185
3. Control handle tension adjustment screw - This screw can be
adjusted to increase or decrease the tension on the control
handle (cover must be removed). This will help prevent
unwanted motion of the remote control handle in rough water.
Turn the screw clockwise to increase tension and
counterclockwise to decrease tension. Adjust to the desired
tension.
4. Detent tension adjustment screw - This screw can be adjusted
to increase or decrease the effort to move control handle out
of detent positions (cover must be removed). Turning the
screw clockwise will increase tension. Adjust to the desired
tension.
a
b
ob01170
+
-
a - Detent tension
adjustment screw
b - Control handle tension
adjustment screw
5. Arrow trackpad - Navigates through the System View
on-screen function messages.

Mercury 200 VERADO Specifications

General

Engine Type	4-Stroke
Gear Ratio	1.85:1
Full Throttle RPM Range	5800-6400 RPM
Fuel System	Electronic Fuel Injection (EFI)
Exhaust	Through Prop
Horsepower	200 HP
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20", 25"
Starting	Electric
Fuel Type	87 Octane
Cylinder Configuration	Inline-6
Cooling System	Water-cooled with thermostat
