Mercury 200 VERADO User Manual

FEATURES AND CONTROLS
58
Dual Handle Console Control with CAN Trackpad
Features and Operation

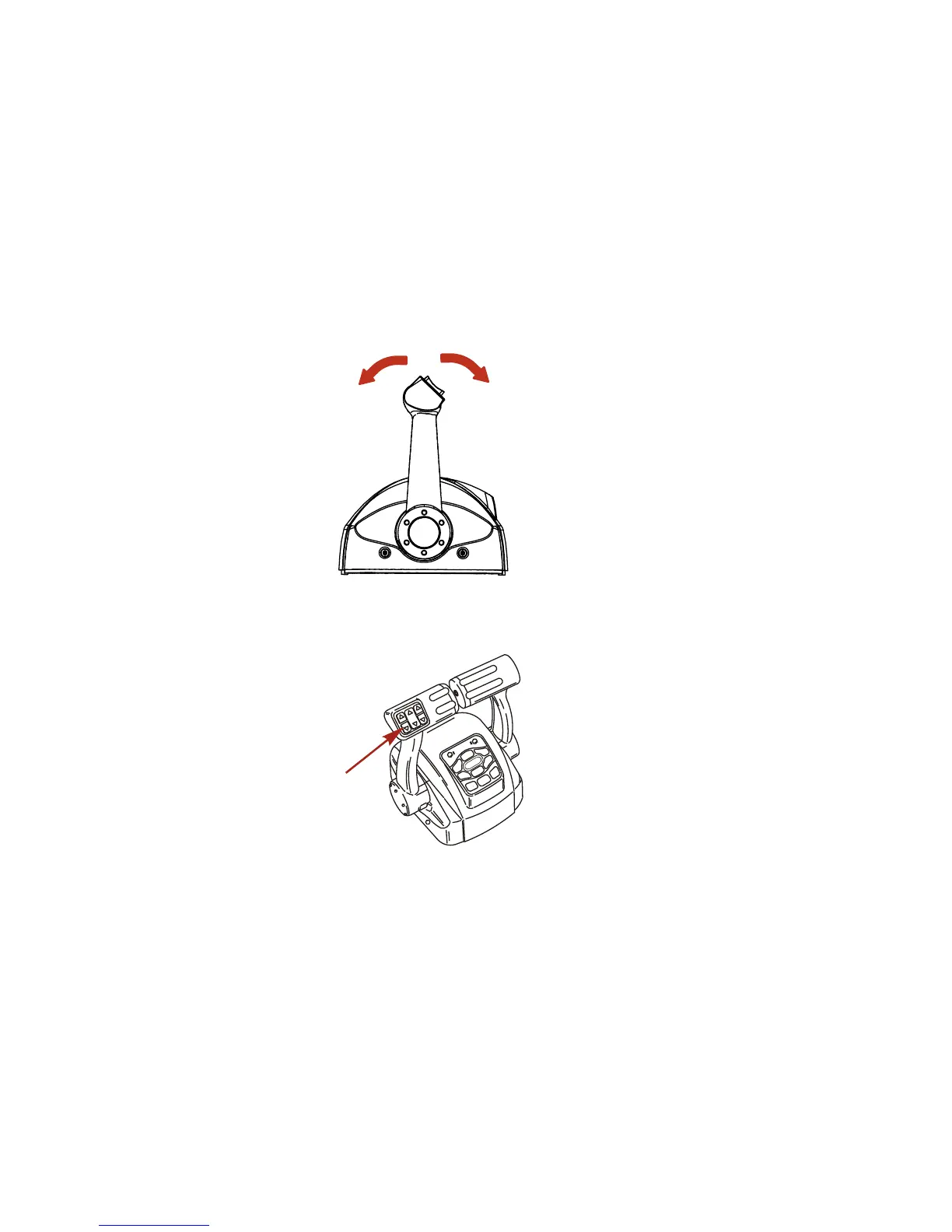

1. Operation of shift and throttle is controlled by the movement
of the control handle. Push the control handle forward from
neutral to the first detent for forward gear. Continue pushing
the handle forward to increase speed. Pull the control handle
back from neutral to the first detent for reverse gear. Continue
pulling the handle back to increase speed.
F
N
R
3417
2. Trim switch (if equipped) - Pressing the trim switch allows the
engine to trim up and down.
N
E
U
T
R
A
L
SYNC
THROTTLE
ONLY
+
-
TROLL
TRANSFER
DOCK
1 LEVER
22132
3. Neutral lights - The neutral lights illuminate when the engine
is in neutral gear position. The lights will flash when the engine
is in throttle only mode.
NOTE: Gear position is determined by the position of the shift
actuator on the engine, not the position of the control handle.

Mercury 200 VERADO Specifications

General

Engine Type	4-Stroke
Gear Ratio	1.85:1
Full Throttle RPM Range	5800-6400 RPM
Fuel System	Electronic Fuel Injection (EFI)
Exhaust	Through Prop
Horsepower	200 HP
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20", 25"
Starting	Electric
Fuel Type	87 Octane
Cylinder Configuration	Inline-6
Cooling System	Water-cooled with thermostat
