MAINTENANCE
120
ob01259
20 20 20
20 20 20
20
a
b
c
d
e

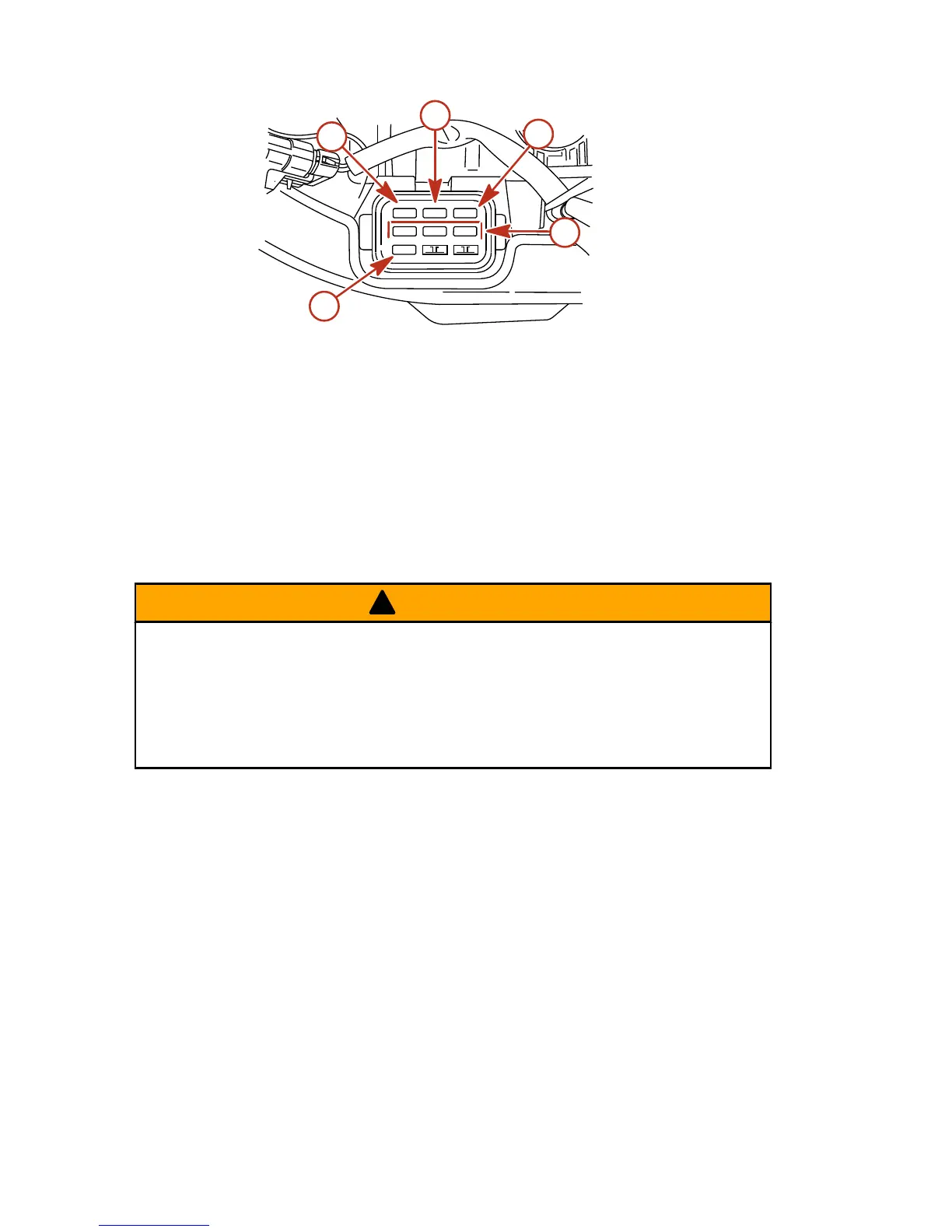

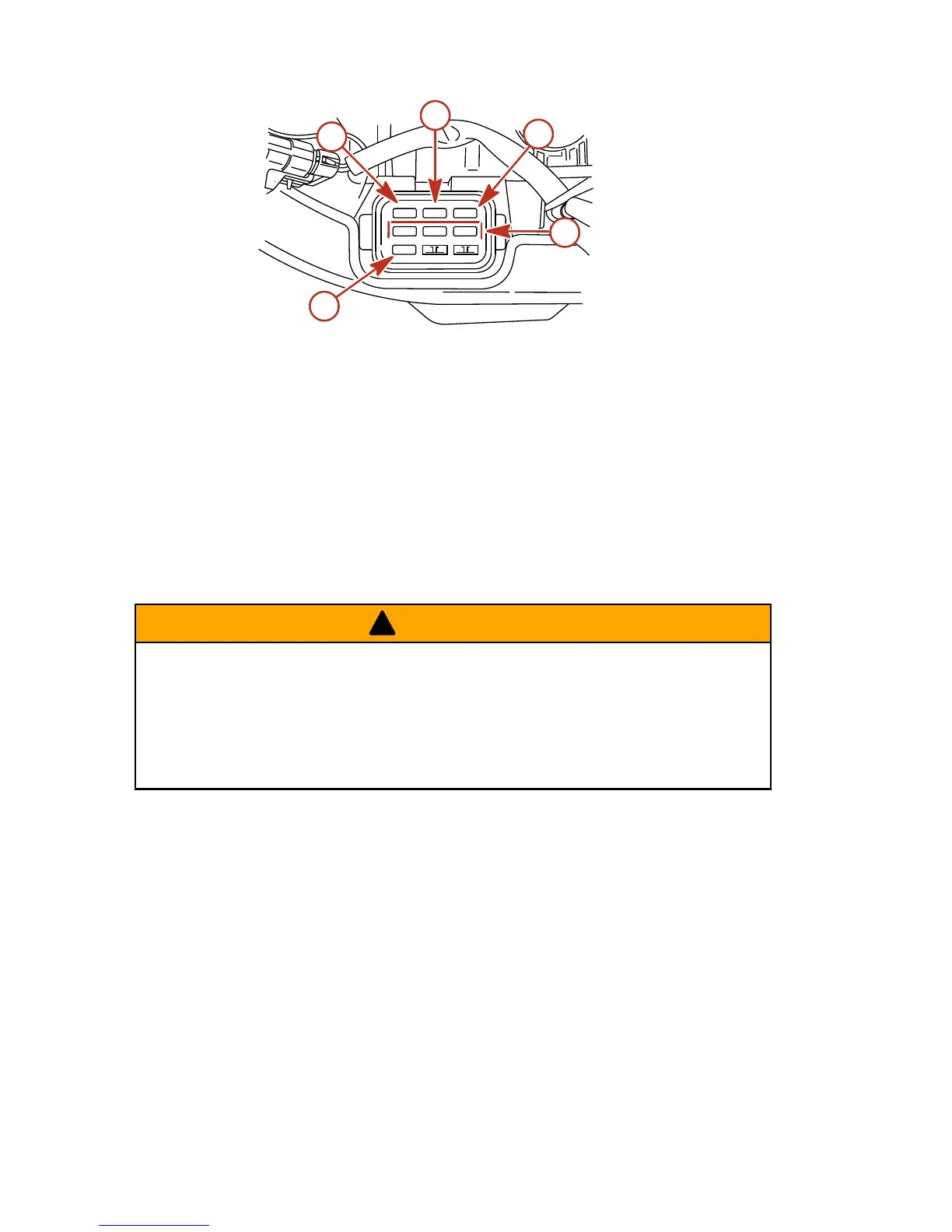

a - Electronic Control
Module and purge valve
"ECM" - 20 amp fuse
b - Ignition coils "IGN.
COILS" - 20 amp fuse
c - Fuel delivery "FUEL" -
20 amp fuse
d - Spare fuses - 20 amp fuse
e - Injector power and boost
valve "INJ. PWR." - 20
amp fuse
DTS Wiring System
!
WARNING
To avoid the possibility of serious injury or death from loss of boat
control, do not splice or probe into any wire insulation of the DTS
system. Splicing or probing will damage the wire insulation
allowing water to enter the wiring. Water intrusion may lead to
wiring failure and loss of throttle and shift control.
• Verify the harnesses are not routed near sharp edges, hot
surfaces or moving parts.
• Verify that all unused connectors and receptacles are covered
with a weather cap.
• Verify that the harnesses are fastened along the routing path.
Accessory Drive Belt Inspection
Inspect the accessory drive belt and have it replaced by an
authorized dealer if any of the following conditions are found.
• Cracks in the back of the belt or in the base of V grooves.
• Excessive wear at the roots of the grooves.
• Rubber portion swollen by oil.
