FEATURES AND CONTROLS
89
TILTING TO FULL UP POSITION
Tilt At Helm
NOTE: The trim/tilt switch will remain active for 15 minutes after
the ignition key switch has been turned off.
1. If the ignition key switch has been turned off for over 15
minutes, turn it to the "ON" position.
2. Press the trim/tilt switch to the up position. The outboard will
tilt up until the switch is released or it reaches its maximum tilt
position.
Tilt At Engine
The cowl mounted auxiliary tilt switch can be used to tilt the
outboard with the key switch in the "OFF" position.
Tilt Support Lever
1. Rotate the tilt support lever down.
2. Lower outboard until tilt support bracket rests on the pedestal.
3. Disengage the tilt support bracket, by raising the outboard up
and rotating the tilt support lever up. Lower the outboard.
ob01305
a
b

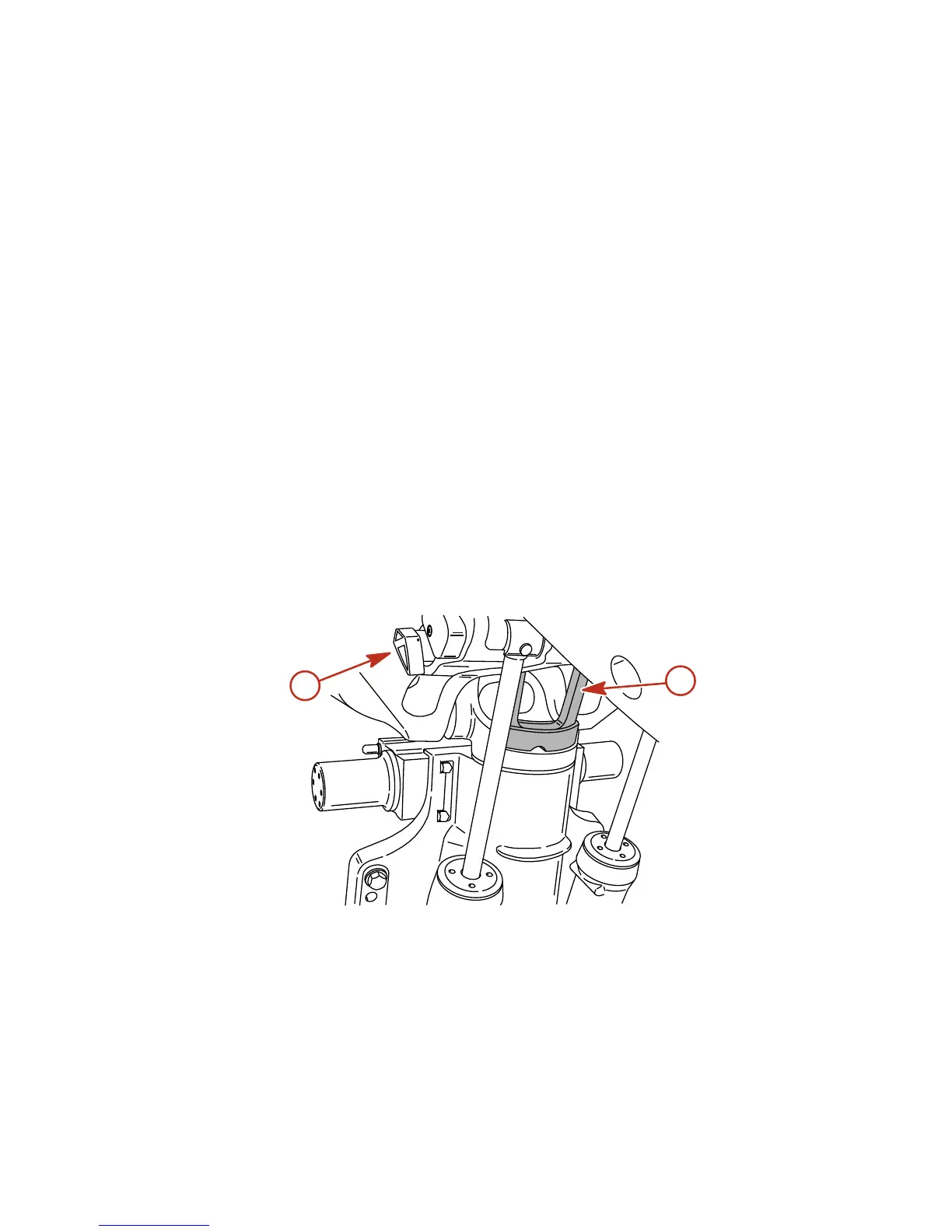

a - Tilt support lever b - Tilt support bracket
