PUMP
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 9A-11
INSTALLATION
CAUTION

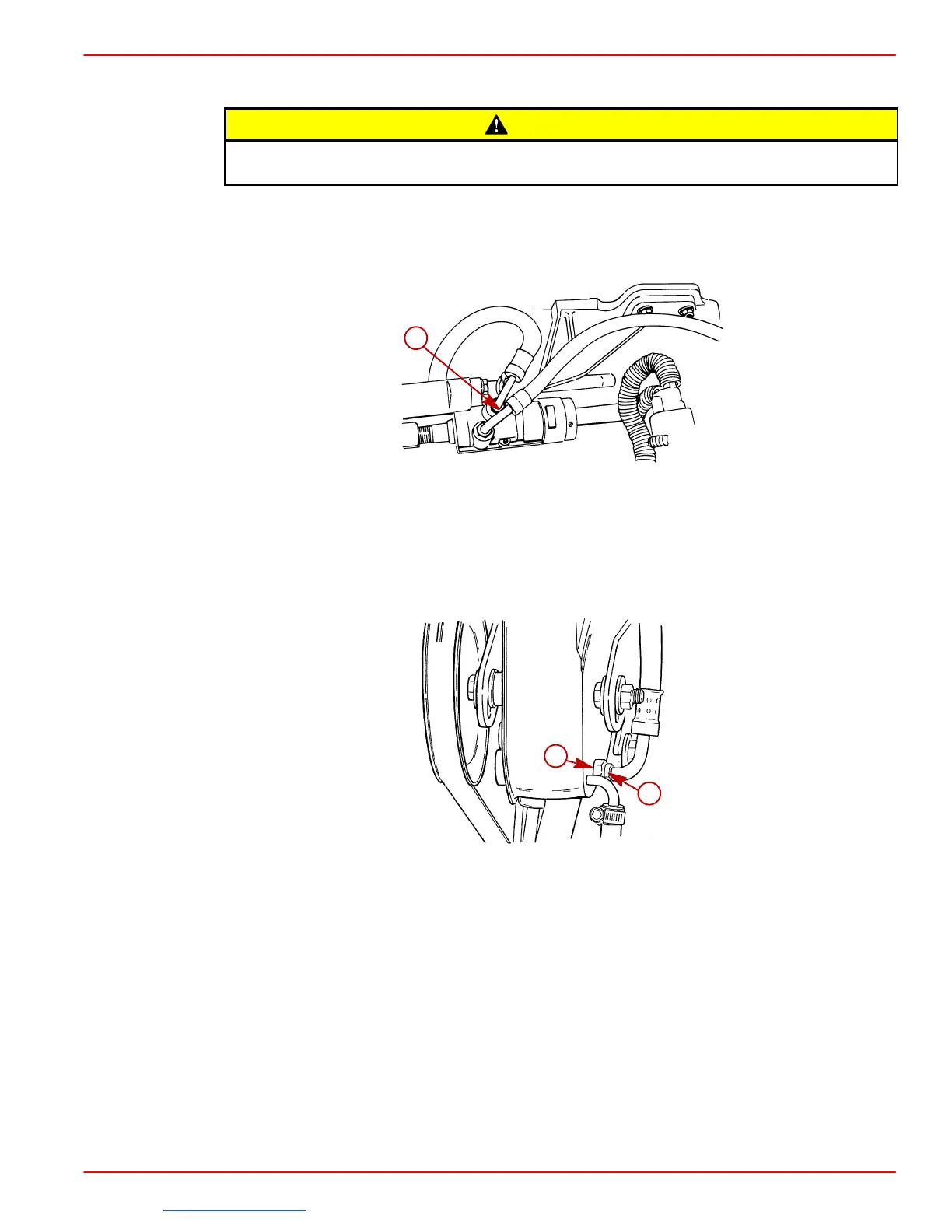

Route hoses exactly as shown below. This will help avoid stress on the hose fittings
and will help avoid kinks in the hoses.
IMPORTANT: Be careful to not cross-thread or overtighten hose fittings.
1. Position hose properly (as it was prior to removal). Install fitting and torque to 23 ft. in.
(31 N·m). Do not cross-thread or overtighten.
73860
a
a-Power Steering Hose Fitting
2. Route hose along valve cover and secure with J-clamp(s) provided.
3. Be certain a new high pressure hose O-ring is present, and install threaded hose fitting
in back of pump assembly fitting. Tighten hose fitting securely. Do not cross-thread or
overtighten.
72848
a
b
a-High Pressure Hose Fitting (With O-Ring - Not Visible In This View)
b-Pump Fitting
4. Fill and air bleed system. Refer to Section 1B - “Maintenance” (see “Table of Contents”).
