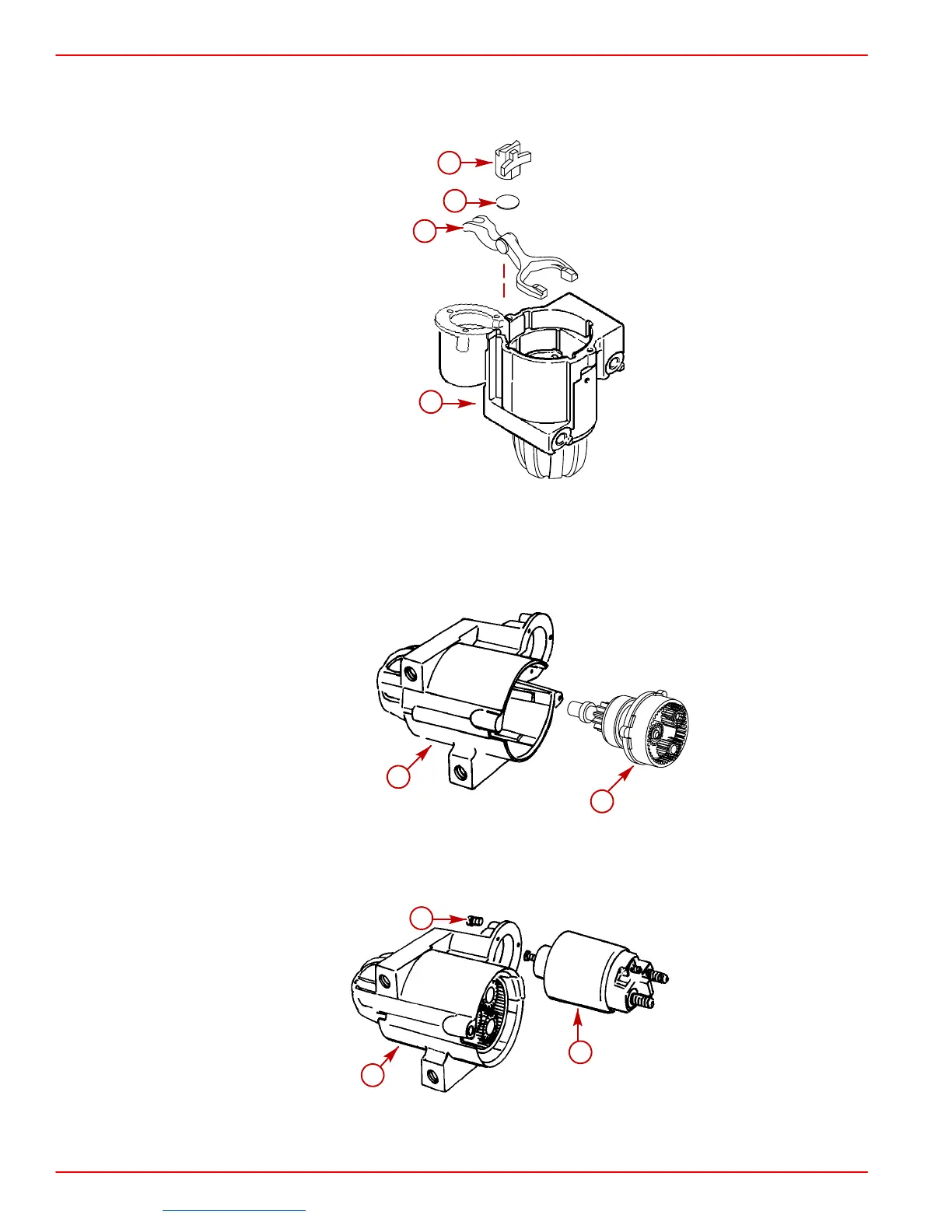

5. Install the planetary gears on planetary gear shaft assembly.
6. Install solenoid arm, metal disc and rubber grommet in the drive housing.
NOTE: Solenoid arm is designed to fit only one way. Do not use force.
75821
a
b
c
d
a-Rubber Grommet
b-Metal Disc
c-Solenoid Arm
d-Drive Housing
7. Install drive and associated parts in drive housing.
74035
75821
a
b
a-Drive Housing
b-Drive
8. Attach solenoid arm to solenoid. Place solenoid in drive housing and tighten screws.
74036
b
a
c
a-Drive Housing
b-Solenoid
c-Screw (3)
