STARTING SYSTEM
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4A-45

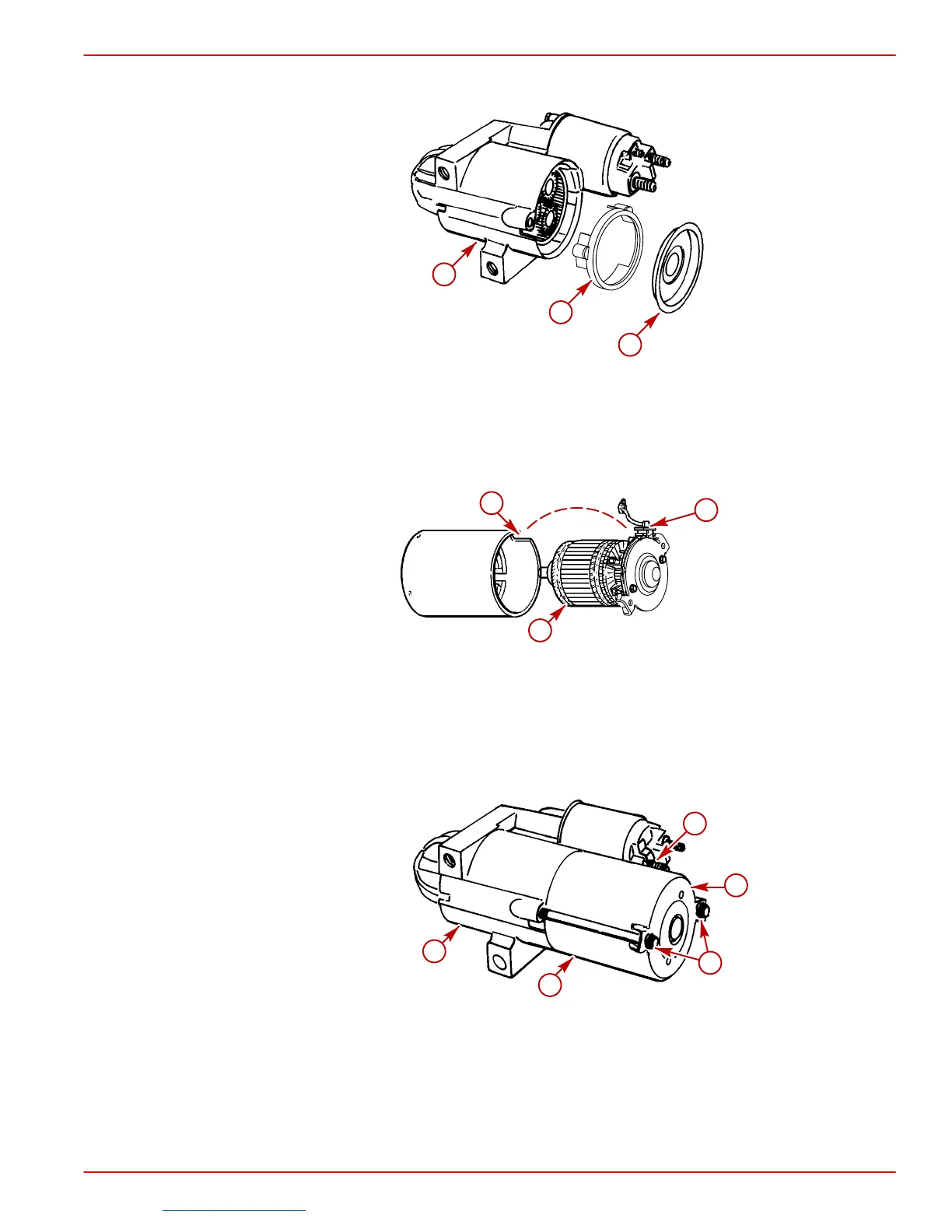

9. Install washer and shield in drive housing.
74038
75821
a
c
b
a-Washer
b-Shield
c-Drive Housing
10. Install field frame over armature. Align slot in field frame with rubber grommet.
75821
b
c
a
a-Armature
b-Field Frame Slot
c-Rubber Grommet
11. Install field frame and end frame in drive housing.
12. Install long screws and brush lead. Tighten fasteners securely.
75821
e
a
c
b
d
a-End Frame
b-Field Frame
c-Drive Housing
d-Long Screws
e-Brush Lead
