INSTRUMENTATION SERVICE MANUAL NUMBER 23
Page 4D-14 90-861326--1 MARCH 1999

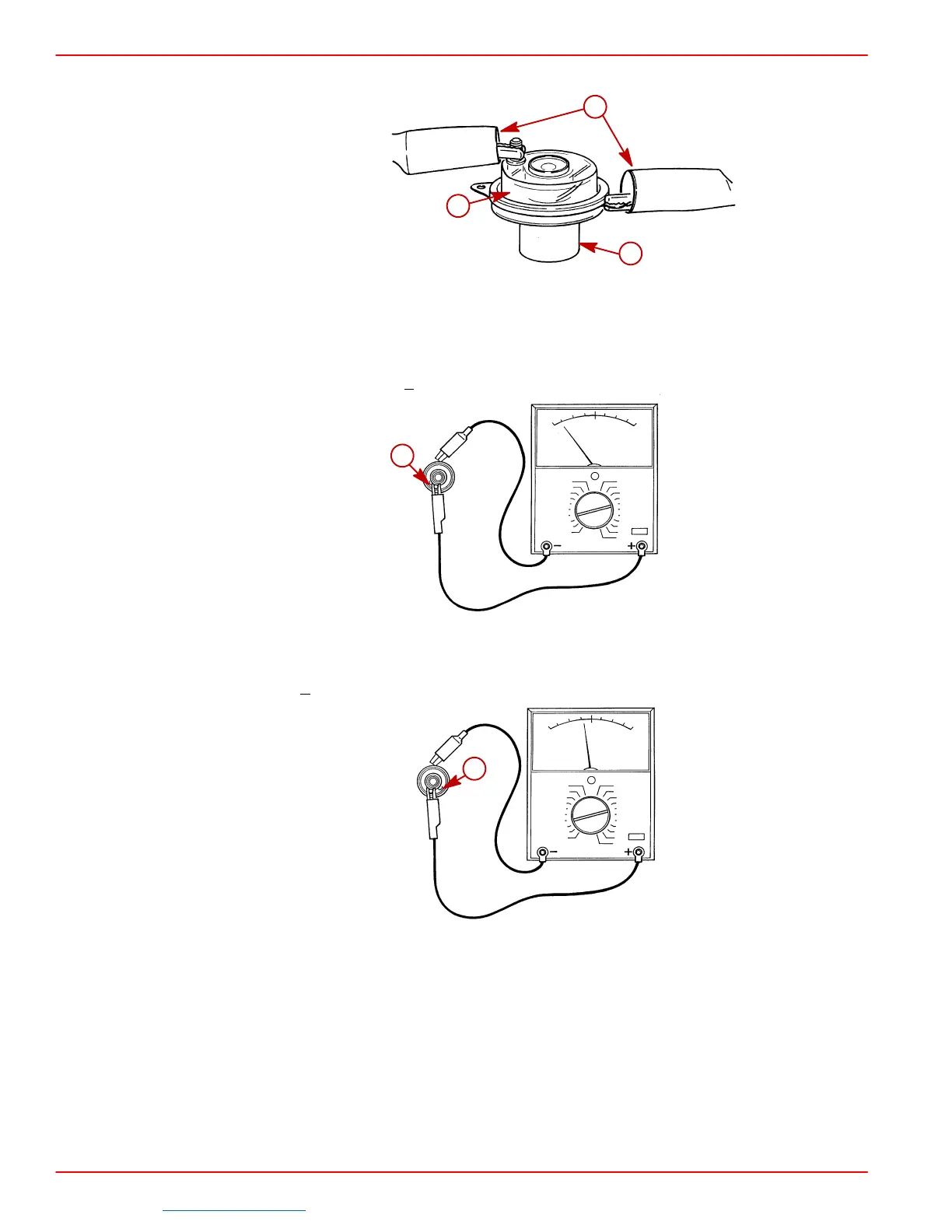

4. Connect ohmmeter between fuel capsule terminal and metal portion of capsule housing.
72757
c
a
b
a-Ohmmeter Leads
b-Capsule Assembly
c-Magnet
5. Turn magnet counterclockwise until fuel capsule indicator reads EMPTY. Ohmmeter
should read 240 ohms (+
5 ohms).
72758
a
a-Capsule Reading Empty
6. Turn magnet clockwise until fuel capsule indicator reads FULL. Ohmmeter should read
30 ohms (+
5 ohms). Fuel capsule is defective if not within specifications.
72759
a
a-Capsule Reading Full
