INSTRUMENTATION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4D-13

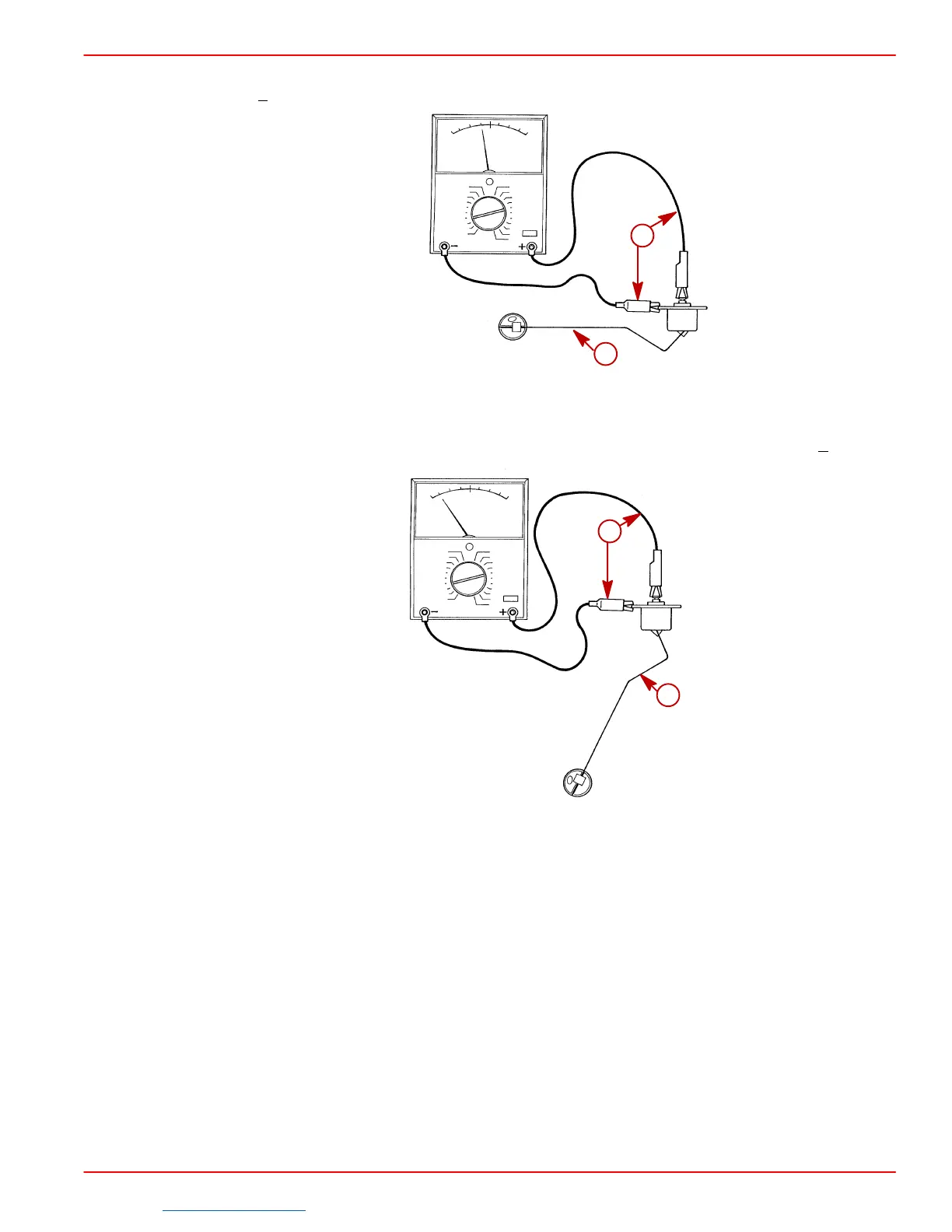

4. With float arm in FULL position (arm horizontal), ohmmeter should read 30 ohms
(+
5 ohms).
72755
b
a
a-Ohmmeter Leads
b-Vertical Float Arm
5. With float arm in EMPTY position (arm vertical) meter should read 240 ohms (+ 5 ohms).
Sender is defective if not within specifications.
72756
a
b
a-Ohmmeter Leads
b-Vertical Float Arm
CAPSULE TYPE
Testing
1. Disconnect wire from terminal on fuel tank capsule.
2. Remove two screws and remove capsule assembly.
3. Place a magnet under fuel capsule.
