VELVET DRIVE 5000A DOWN ANGLE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 8B-5

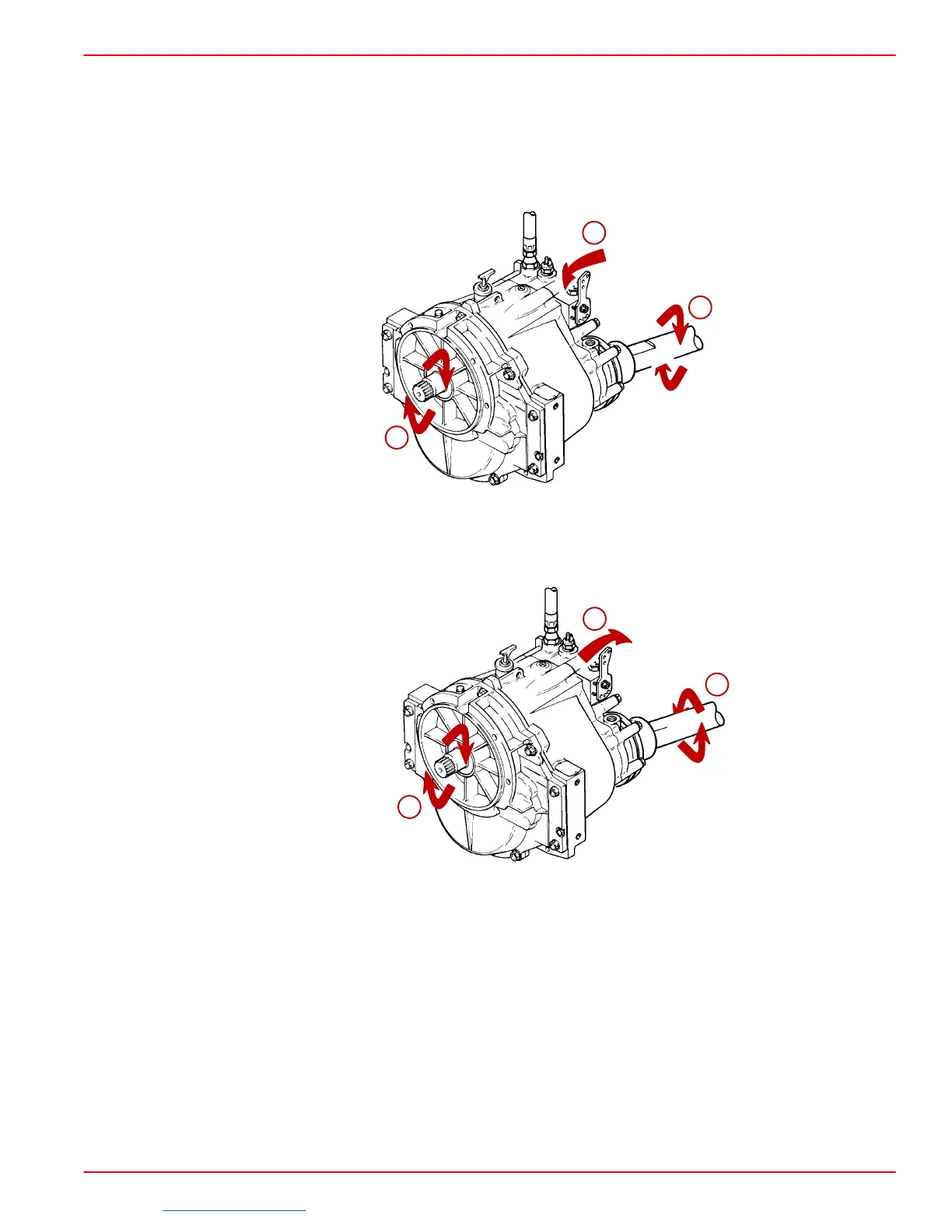

Transmission / Propeller Rotation
Velvet Drive 5000A - 8° Down Angle Transmission: These transmissions are “full power
reversing” transmissions, allowing a standard (LH rotation) engine to be used for both
propeller rotations. Propeller rotation (output shaft rotation) is determined by shift cable
attachment at the remote control. Be sure to use correct rotation propeller and shift cable
hook up for direction desired.
71888
c
a
b
a-Direction Of Shift Lever Engagement (Toward Flywheel)
b-Engine/Transmission Input Shaft Shaft Rotation Direction (LH)
c-Transmission Output/Propeller Shaft Rotation Direction (LH)
71888
a
c
b
a-Direction Of Shift Lever Engagement (Away From Flywheel)
b-Engine/Transmission Input Shaft Rotation Direction (LH)
c-Transmission Output/Propeller Shaft Rotation Direction (RH)
