VELVET DRIVE 5000A DOWN ANGLE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 8B-6 90-861326--1 MARCH 1999

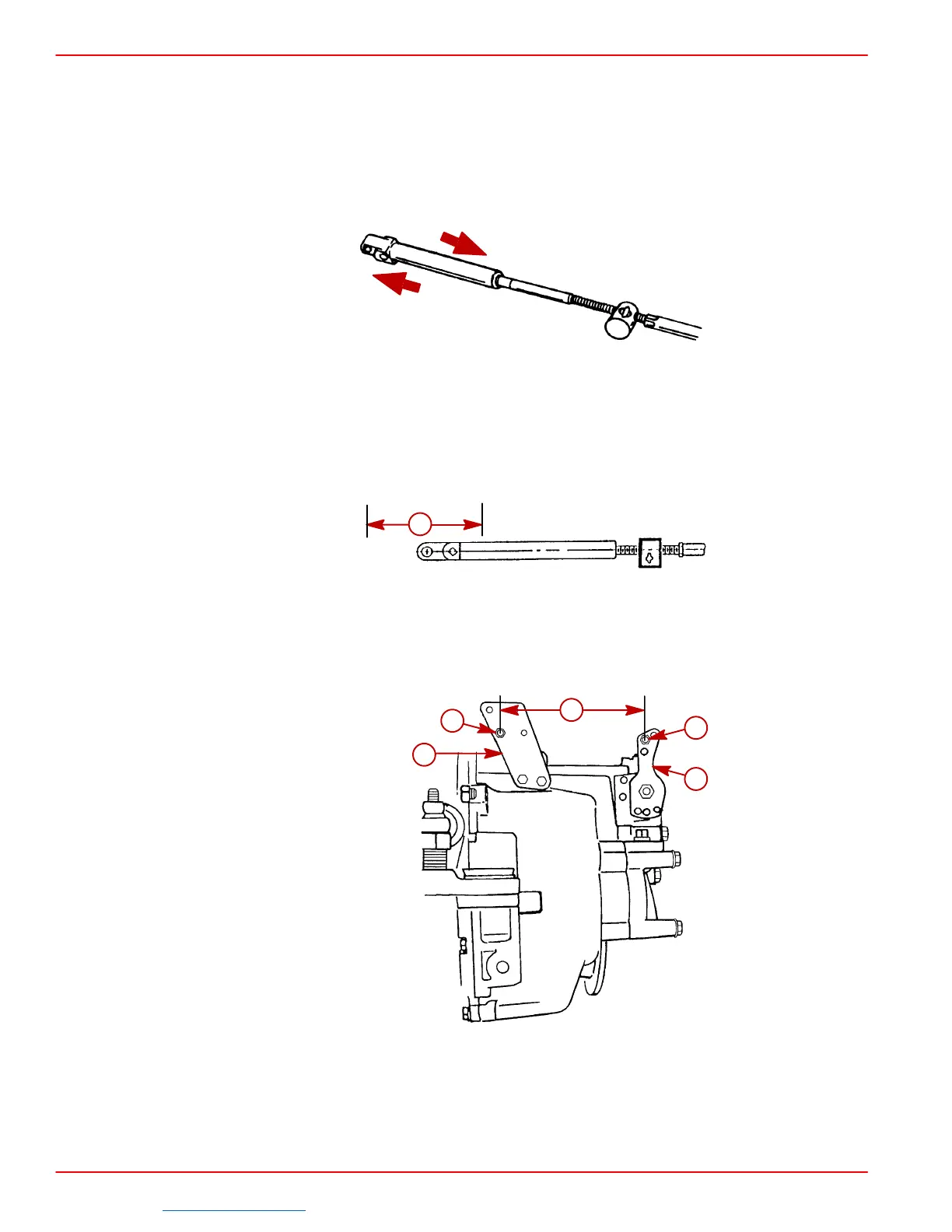

For Left-Hand Propeller Shaft Rotation: Shift cable hookup at remote control must result
in shift cable end guide moving in direction “A” when remote control handle is placed in for-
ward position.
For Right-Hand Propeller Shaft Rotation: Shift cable hookup at remote control must
result in shift cable end guide moving in direction “B” when remote control handle is placed
in forward position.
23242
A
B
Remote control must provide a total shift cable travel (at transmission end) of at least 2-3/4
in. (70 mm). This is necessary to position transmission shift lever fully in the forward and
reverse gear positions. Insufficient shift cable travel will cause transmission to slip and even-
tually fail.
72602
a
a-2-3/4 Inch (70 mm) Minimum
IMPORTANT: The distance between studs (Dimension “C”) shown in the following
illustration, is set at 7-1/8 in. (318 mm).
73284
a
b
c
d
b
a-Shift Lever
b-Anchor Stud
c-Dimension Between Studs - 7-1/8 Inch (318 mm)
d-Shift Cable Bracket
